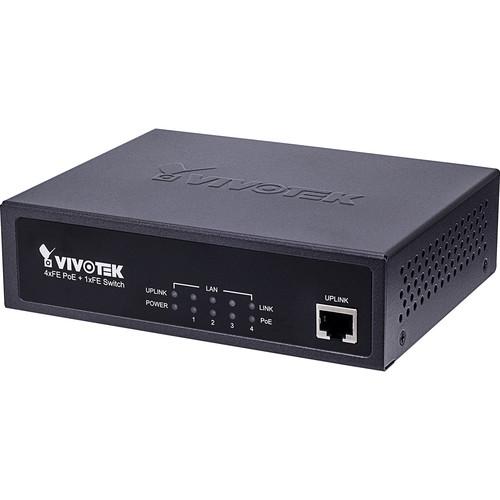

User Manual for Vivotek AW-FET-050A-065 5-Port Fast Ethernet PoE Unmanaged Switch Click to enlarge the picture
Contents of the user manual for the Vivotek AW-FET-050A-065 5-Port Fast Ethernet PoE
- Product category: Network Switches, Bridges & Hubs Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Network Switches, Bridges & Hubs
|
User manual for the Vivotek AW-FET-050A-065 5-Port Fast Ethernet PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description Power a variety of PoE-compliant devices such as IP cameras, access points, and more with the AW-FET-050A-065 5-Port Fast Ethernet PoE Unmanaged Switch from Vivotek. This network switch comes equipped with 5 Fast Ethernet ports, four of which are PoE-compliant and pull from a total PoE power budget of 60 watts. Inside the AW-FET-050A-065, you will find a 1K MAC address table, a 48kB memory buffer, and a 1 Gbps switching capacity to ensure smooth operation under some of the most demanding network conditions. In the Box Vivotek AW-FET-050A-065 5-Port Fast Ethernet PoE Unmanaged Switch Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek AW-FET-050A-065 5-Port Fast Ethernet PoE Unmanaged Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek AW-FET-050A-065 Specs | Compatibility | IP Camera Compatibility
Video Resolution: Megapixel/D1/VGA
Video Compression: MJPEG/MPEG-4/H.264/H.265
Compatible Camera List: Vivotek Network Cameras | | Ethernet | Ports
5 x Fast Ethernet ports
Ethernet Performance
MAC Address: 1 K
Buffer Memory: 48 kB
Transmission Method: Store and Forward
Backplane: 1 Gbps
Auto-MDI/MDI-X, Auto-Negotiation: Supported | | Standards | IEEE 802.3 10BASE-T (Ethernet)
IEEE 802.3u 100BASE-TX (Fast Ethernet)
IEEE 802.3x Flow Control (Full-Duplex Flow Control)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus | | Filtering / Forwarding Rates | 10 Mbps: 14,880 pps
100 Mbps: 148,000 pps | | Transmission Media | 10BBASE-T: Cat. 3, 4, 5 UTP/STP
100BASE-TX: Cat. 5, 5e UTP/STP | | PoE | Number of PoE Out Ports: 4
PoE Output Power: Per port 56 VDC, Max. 30 W
Total PoE Power Budget: 60 W
802.3at/af Standard Compatible: Yes
Over Current Protection: Supported
Circuit Shorting Protection: Supported
Power Pin Assignment: 1/2(+), 3/6(-)
PoE PD Auto Detection: Yes | | LED Indicators | Power, Uplink, LAN ports x4, PoE ports x4 | | Power | Power Input
100-240 VAC; 50/60 Hz
Power Consumption
65 W | | Temperature & Humidity | Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -4 to 158°F / -20 to 70°C
Operating/Storage Humidity: 10 to 90% non-condensing | | Safety Certification | CE, C-Tick, FCC, LVD, VCCI | | Dimensions | 6.3 x 4.8 x 1.7" / 160 x 123 x 44 mm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 2.365 lb | | Box Dimensions (LxWxH) | 9.2 x 5.9 x 3.2" |
