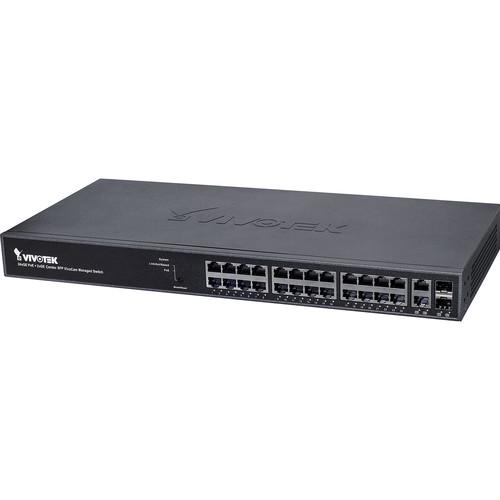

User Manual for Vivotek AW-GEV-264A-185 VivoCam L2 Managed PoE Switch Click to enlarge the picture
Contents of the user manual for the Vivotek AW-GEV-264A-185 VivoCam L2 Managed PoE
- Product category: Network Switches, Bridges & Hubs Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Network Switches, Bridges & Hubs
|
User manual for the Vivotek AW-GEV-264A-185 VivoCam L2 Managed PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description Provided by third party: The VIVOTEK AW-GEV-264A series, referred to as VivoCam PoE switch, is the world's first PoE switch with IP surveillance management functions. This switch is not only a standard L2 PoE switch, but also able to set up and configure VIVOTEK IP cameras, NVR and CMS. With single AW-GEV-264A series, the VivoCam PoE switch allows users to find all VIVOTEK devices and deploy a surveillance network system automatically.The AW-GEV-264A series also features Graphic Monitoring, such as Topology/Map view for controlling and understanding network structure and device situation, and Google Map integration to view system situation status for outdoor applications. It not only features surveillance network environment set up functions, but troubleshooting and traffic monitoring functions also help users to clarify and troubleshoot any connection or device issue. In addition, users can also back up their IP camera configuration files, and batch re-boot/re-store camera device through the VivoCam PoE switch. With all of these features and more, the AW-GEV-264A series is the best PoE solution to install and manage your VIVOTEK devices. In the Box Vivotek AW-GEV-264A-185 VivoCam L2 Managed PoE Switch (24 GbE PoE & 2 Combo GbE Ports, 185W) VivoCam L2 Managed PoE Switch Power Cord QIG CD Manual Rack Mount Kit Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek AW-GEV-264A-185 VivoCam L2 Managed PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek AW-GEV-264A-185 Specs | | | Total Number of Network Ports | 24 | | Token Ring Port | No | | LRE Port | No | | Uplink Port | No | | Bypass | No | | Modular | No | | Number of PoE (RJ-45) Ports | 24 | | Stack Port | No | | Number of Network (RJ-45) Ports | 2 | | Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot
26 x Gigabit Ethernet Network | | | | Media Type Supported | Optical Fiber
Twisted Pair | | Twisted Pair Cable Standard | Category 7 | | Ethernet Technology | Gigabit Ethernet | | Network Technology | 10/100/1000Base-T
1000Base-X | | | | Number of Total Expansion Slots | 2 | | Expansion Slot Type | SFP | | Shared SFP Slot | Yes | | Number of SFP Slots | 2 | | | | Manageable | Yes | | Management | - Web GUI Interface
- SNMP version1, 2c and 3
- Port Mirroring
- DHCP
- Syslog
- VLANs
| | | | PoE (RJ-45) Port | No | | Input Voltage | 120 V AC
230 V AC | | Power Source | Power Supply | | Redundant Power Supply Supported | No | | | | Form Factor | Desktop
Rack-mountable | | Height | 1.7" | | Width | 17.4" | | Depth | 8.3" | | Weight (Approximate) | 5.51 lb | | | | Certifications & Standards | IEEE Standards:- 802.3
- 802.3u
- 802.3ab
- 802.1p
- 802.1Q
- 802.3x
- 802.1d/w/S
- 802.3ad
- 802.1X
- 802.3az
- 802.3af
- 802.3at
Safety Certifications: |
