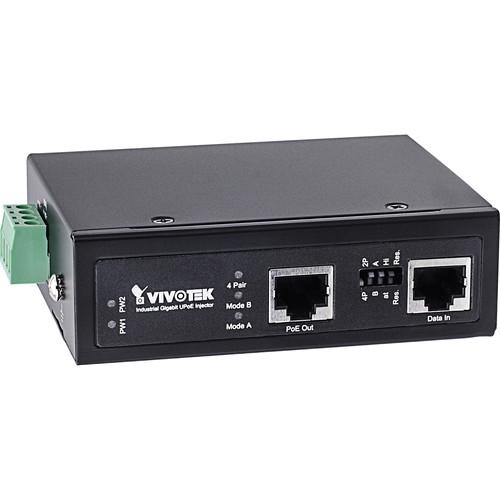

User Manual for Vivotek AW-IHU-0100 Industrial Gigabit Ethernet 60W UPoE Injector Click to enlarge the picture
Contents of the user manual for the Vivotek AW-IHU-0100 Industrial Gigabit Ethernet 60W
- Product category: Power over Ethernet (PoE) Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Power over Ethernet (PoE)
|
User manual for the Vivotek AW-IHU-0100 Industrial Gigabit Ethernet 60W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The AW-IHU-0100 Industrial Gigabit Ethernet 60W UPoE Injector from VIVOTEK can be used to power VIVOTEK network cameras. This single port injector operates on redundant dual 48 to 56 VDC input and provides 60W power as output. In the Box Vivotek AW-IHU-0100 Industrial Gigabit Ethernet 60W UPoE Injector (1-Port) Terminal Block DIN-Rail Brackets Wall Mount Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek AW-IHU-0100 Industrial Gigabit Ethernet 60W UPoE Injector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek AW-IHU-0100 Specs | Camera Compatibility | Video Resolution: Megapixel / D1 / VGA
Video Compression: MJPEG / MPEG-4 / H.264 / H.265
Cameras: VIVOTEK network cameras | | Ethernet Port | 1 x Gigabit Ethernet (RJ45) | | Number of PoE Ports | Out: 1 | | Standards | IEEE 802.3 10BASE-T (Ethernet)
IEEE 802.3u 100BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
802.3at/af standard compatible | | Transmission Media | 10BASE-T: Cat 3, 4, 5 UTP/STP
100BASE-TX: Cat 5, 5e UTP/STP
1000BASE-T: Cat 5e, 6, 7 UTP/STP | | PoE Power Output | Max. Per Port: 56 VDC/60 W | | Total PoE Power Budget | 60 W | | Power Pin Assignment | 1/2(+), 3/6(-) 4/5(+), 7/8(-) | | Power Input | Redundant Dual 48 to 56 VDC
Removable Terminal Block
(Power supply available separately) | | Power Consumption | 78 W | | Auto Detect | PoE PD (powered device) auto detection | | LED Indicators | Power, Mode A/B, 4Pair, PoE | | Protection | Over current protection, circuit shorting protection | | Operating Temperature | -40 to 167°F (-40 to 75°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Humidity | 5 to 95% (non-condensing) | | Housing Material | Metal | | IP Rating | IP30 | | Certifications | CE, C-Tick, FCC, VCCI, LVD | | Dimensions | 4.1 x 1.3 x 3.2" (10.4 x 3.2 x 8.2 cm) | | Weight | 5 oz (140 g) |
