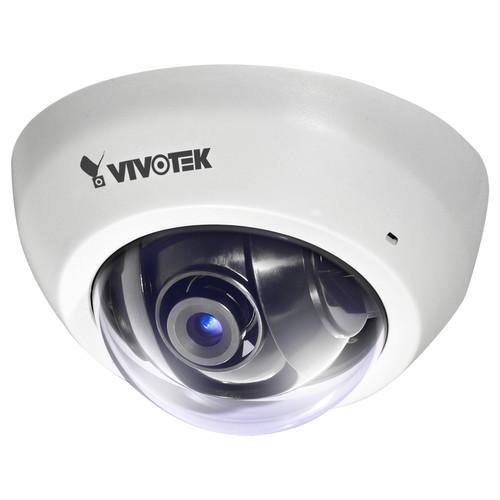

User Manual for Vivotek C Series 2MP Mini Dome Network Camera Click to enlarge the picture
Contents of the user manual for the Vivotek C Series 2MP Mini Dome
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek C Series 2MP Mini Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The white C Series 2MP Mini Dome Network Camera from Vivotek features a 2MP 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. Its 2.8mm fixed lens allows the camera to capture high-quality video in varying lighting conditions thanks to SNV and WDR technology. The camera uses H.264 and MJPEG codecs for high-quality recording and playback, while reducing file sizes and saving network bandwidth.
A built-in microphone has the ability to pick up sound from up to 16' away and compresses it using G.711 or G.726 codecs. In order to help reduce the amount of cables needed, this camera features Power over Ethernet (PoE) functionality, allowing a single RJ45 Ethernet cable to provide power and connection to an NVR. The camera is ONVIF-compliant and comes with Vivotek's free 32-channel recording software for easy monitoring. - 2MP 1/2.8" progressive-scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps
- 2.8mm fixed lens provides a 136° diagonal field of view
- H.264 and MJPEG compression and Vivotek Smart Stream II to optimize bandwidth efficiency
- Supreme Night Visibility (SNV) for low light conditions
- WDR enhancement and 3D Noise Reduction for visibility in bright and dark environments
- Memory card slot for microSD cards up to 64GB (available separately)
In the Box Vivotek C Series 2MP Mini Dome Network Camera (White) Software CD Mounting Hardware Focus Kit Limited 2-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek C Series 2MP Mini Dome Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Vivotek C Series 2MP Mini Dome Network Camera can be downloaded in PDF format at the link stated below.
Technical parametersVivotek FD8166A Specs | | | CPU | Multimedia SoC (system-on-chip) | | Flash | 128 MB | | RAM | 256 MB | | | | Image Sensor | 2 MP 1/2.8" progressive scan CMOS | | Maximum Resolution | 1920 x 1080 | | Lens Type | Fixed | | Focal Length | 2.8mm | | Aperture | f/1.8 | | Field of View | Horizontal: 113°
Vertical: 63°
Diagonal: 136° | | Shutter Time | 1/5 to 1/32,000 s | | Minimum Illumination | 0.05 lux @ f/1.8 | | Pan Range | 45° | | Tilt Range | 33 to 90° | | Pan/Tilt/Zoom | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) | | On-board Storage | Card slot for microSD/SDHC/SDXC card up to 64 GB (available separately) | | | | Compression | H.264 and MJPEG | | Maximum Frame Rate | 30 fps @ 1920 x 1080 in both compressions | | Maximum Streams | 4 simultaneous streams | | S/N Ratio | 47 dB | | Dynamic Range | 70 dB | | Video Streaming | Adjustable resolution, quality and bitrate Smart Stream II | | | | Audio Capability | Audio input | | Compression | G.711 and G.726 | | Interface | Built-in microphone | | Effective Range | 16' (5 m) | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS | | Interface | 10Base-T and 100Base-TX RJ45 Ethernet | | ONVIF | Supported | | Video Motion Detection | Five-window video motion detection | | | | Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using HTTP, SMTP, FTP and NAS server and microSD card
File upload via HTTP, SMTP, FTP and NAS server | | | | Operating System | Microsoft Windows 8, 7, Vista, XP, 2000 | | Web Browser | Mozilla Firefox 7 to 10 (streaming only)
Internet Explorer 7, 8, 9, 10, 11 | | Player | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Connectors | RJ45 for 10/100 Mbps PoE connection, digital input | | LED Indicator | System power and status indicator | | Power Input | IEEE 802.3af PoE Class 1 | | Power Consumption | 3 W Maximum | | Operating Temperature | Starting: 32 to 122°F (0 to 50°C)
Working: 14 to 122°F (-10 to 50°C) | | Humidity | 90% | | Dimensions (Ø x D) | 3.5 x 2" (90 x 50 mm) | | Weight | 5.1 oz (144 g) | | | | Package Weight | 0.61 lb | | Box Dimensions (LxWxH) | 5.35 x 5.3 x 3.55" |
