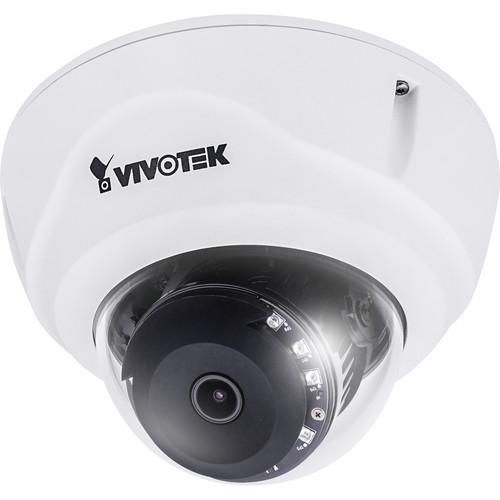

User Manual for Vivotek C Series 2MP Outdoor Network Dome Camera with Built-in Heater Click to enlarge the picture
Contents of the user manual for the Vivotek C Series 2MP Outdoor Network
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek C Series 2MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The C Series 2MP Outdoor Network Dome Camera from Vivotek features a 1/2.7" progressive scan CMOS sensor and 2.8mm fixed lens for capturing videos at a maximum resolution of 1920 x 1080 at 30 fps. This day/night camera provides 24-hour surveillance thanks to a removable IR cut filter and built-in IR LEDs with a range of up to 98'. With WDR (Wide Dynamic Range) and SNV (Supreme Night Visibility) technologies, the camera provides visibility in high contrast environments and can capture surveillance videos even under low light conditions. In addition, the camera comes with a built-in heater and can be operated in temperature ranges from -58 to 122°F. The day/night camera also uses a Smart IR technology that prevents overexposure and provides noise reduction to adjust the IR lighting intensity based on the changes of light in the ambient environment. This camera conforms to IP66 weather resistance standards for use in harsh weather conditions. The camera is also IK10-rated for protection from acts of theft or vandalism. - 2MP CMOS sensor offers a resolution of 1920 x 1080 at 30 fps
- Removable IR cut filter for day/night function
- Smart IR technology to avoid overexposure
- WDR technology for improved image quality in scenes consisting of both bright and dark areas
- SNV (Supreme Night Visibility) for low-light conditions
- Supports 3D noise reduction
- Video rotation for corridor view
- IP66-rated water-resistant and IK10-rated vandal-resistant housing
- Built-in heater with PoE Class 4 support
- Supports VIVOTEK VCA (Video Content Analysis)
- Compatible with AM-713 Outdoor Conduit Box (sold separately)
In the Box Vivotek C Series 2MP Outdoor Network Dome Camera with Built-in Heater Installation Wizard 2 VAST 32-Channel Recording Software Alignment Sticker / Desiccant Bag Screw Pack Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek C Series 2MP Outdoor Network Dome Camera with Built-in Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek FD836BA Specs | | | Image Sensor | 1/2.7" Progressive CMOS | | Maximum Resolution | 1920 x 1080 (2 MP) | | Lens Type | Fixed | | Focal Length | 2.8mm | | Aperture | f/1.8 | | Field of View | Horizontal: 122°
Vertical: 66°
Diagonal: 142° | | Shutter Time | 1/5 to 1/32,000 sec | | WDR Technology | WDR Pro | | Day/Night | Removable IR cut filter for day and night function | | Minimum Illumination | Color: 0.15 lux at f/1.8
B&W: 0.01 lux at f/1.8 | | Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in) | | IR LEDs | 8 x built-in Smart IR | | IR Range | Up to 98.4' (30 m) | | Onboard Storage | Slot Type: microSD / SDHC / SDXC card slot for seamless recording (card sold separately) | | | | Compression | H.264 and MJPEG | | Maximum Frame Rate | 30 fps at 1920 x 1080
In both compression modes | | Maximum Streams | 4 simultaneous streams | | S/N Ratio | 66 dB | | Dynamic Range | 100 dB | | Video Streaming | Adjustable resolution, quality, and bit rate
Smart Stream | | Image Settings | Adjustable image size, quality, and bit rate
Time stamp, text overlay, flip, and mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
Scheduled profile settings, 3D noise reduction, video rotation, and defog | | Video Motion Detection | 5-window video motion detection | | | | Audio Capability | 2-way audio | | Compression | G.711, G.726 | | Interface | External microphone input
External line output | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, and TLS | | Interface | 10Base-T/100BaseTX Ethernet (RJ45) | | ONVIF | Supported | | | | Video Motion Detection | 5-window video motion detection | | | | Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server, and SD Card
File upload via HTTP, SMTP, FTP, NAS server, and SD card | | | | Operating system | Microsoft Windows 8 / 7 / Vista / XP / 2000 | | Web Browser | Mozilla Firefox 7 to 43 (streaming only)
Internet Explorer 7 / 8 / 9 / 10 / 11 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | CPU | Multimedia SoC (System-on-Chip) | | Flash | 1 GB | | RAM | 2 GB | | | | Connectors | RJ45 cable connector for Network / PoE connection
Audio input
Audio output
12 VDC power input
1 x digital input
1 x digital output | | LED Indicator | System power and status indicator | | Power Input | 12 VDC
IEEE 802.3at PoE Class 4 | | Power Consumption | Maximum 25 W (heater on) | | Certifications | CE, LVD, FCC Class A, VCCI, C-Tick | | Vandal Resistance | IK10 | | IP Rating | IP66 | | Operating Humidity | Less than 90% (non - condensing) | | Operating Temperature | Starting Temperature:
-40 to 122°F (-40 to 50°C)
Working Temperature:
-58 to 122°F (-50 to 50°C) | | Dimensions (Ø x H) | 6 x 4" (155 x 103 mm) | | Weight | 32.45 oz (920 g) |
