Vivotek C Series 2MP Recessed Mount

Search your instruction manual in PDF to download

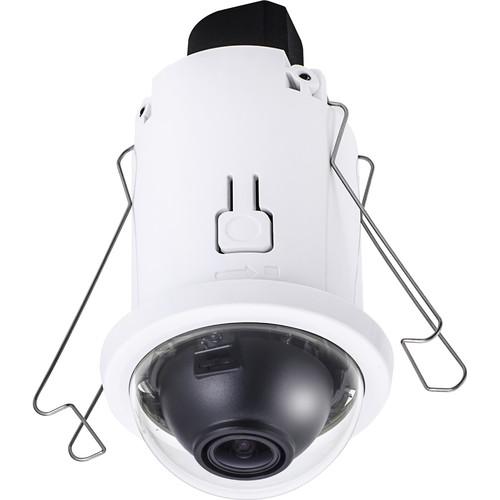

User Manual for Vivotek C Series 2MP Recessed Mount Network Dome Camera with 2.8mm Fixed Lens

Click to enlarge the picture
Vivotek C Series 2MP Recessed Mount Network Dome Camera with 2.8mm Fixed Lens Contents of the user manual for the Vivotek C Series 2MP Recessed Mount
  • Product category: Wired IP Cameras Vivotek
  • Brand: Vivotek
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Vivotek Wired IP Cameras

User manual for the Vivotek C Series 2MP Recessed Mount contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Vivotek product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!



Product description

The C Series 2MP Recessed Mount Network Dome Camera from Vivotek features a 1/2.7" progressive scan CMOS sensor and 2.8mm fixed lens for capturing videos at a maximum resolution of 1920 x 1080 at 30 fps. With WDR Pro and SNV technology, the camera provides visibility in environments with high-contrast lighting and can capture surveillance video under even low-light conditions. The camera is compatible with VIVOTEK's VAST 32-channel recording software. The Smart Stream II technology optimizes the image quality for desired regions, and thus ensures maximum efficiency of bandwidth usage. The camera is suitable for use in indoor surveillance spaces such as retail locations, banks, restaurants, offices, and other public areas. The camera is designed for easy installation with PoE power, making setup both quick and simple.
  • 2MP CMOS sensor offers a resolution of 1920 x 1080 at 30 fps
  • Real-time H.264 and MJPEG compression (dual codec)
  • WDR Pro (100 dB) provides visibility in high-contrast scenes
  • SNV (Supreme Night Visibility)
  • Smart Stream II to optimize bandwidth efficiency
  • Supports 3D noise reduction for low-light conditions
  • 70° tilt lens
  • Built-in standard PoE IEEE 802.3af
  • Built-in microSD / SDHC / SDXC card slot for on-board storage (card sold separately)
In the Box Vivotek C Series 2MP Recessed Mount Network Dome Camera with 2.8mm Fixed Lens
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Vivotek C Series 2MP Recessed Mount Network Dome Camera with 2.8mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Vivotek FD816CA Specs

    Image Sensor 1/2.7" Progressive CMOS
    Maximum Resolution 1920 x 1080 (2 MP)
    Lens Type Fixed-focal
    Focal Length 2.8mm
    Aperture f/1.8
    Field of View Horizontal: 122°
    Vertical: 66°
    Diagonal: 142°
    Shutter Time 1/5 to 1/32,000 sec
    WDR Technology WDR Pro
    Minimum Illumination Color: 0.15 lux at f/1.8
    B&W: < 0.01 lux at f/1.8
    Pan/Tilt/Zoom Functionalities ePTZ: 4x digital zoom IE plugin
    Onboard Storage microSD / SDHC / SDXC card slot (card sold separately)
    Compression H.264 and MJPEG
    Maximum Frame Rate 30 fps at 1920 x 1080
    Maximum Streams 3 simultaneous streams
    S/N Ratio 66 dB
    Dynamic Range 100 dB
    Video Streaming Adjustable resolution, quality, and bit rate
    Smart Stream II
    Image Settings Adjustable image size, quality, and bit rate
    Time stamp, text overlay, flip and mirror
    Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
    Scheduled profile settings, and 3D-DNR
    Video Motion Detection 5-window video motion detection
    Audio Capability 1-way audio
    Compression G.711, G.726
    Interface Buit-in microphone
    Effective Range 16.4' (5 m)
    Users Live viewing for up to 10 clients
    Protocols IPv4, IPv6, TCP / IP, HTTP, HTTPS, UPnP, RTSP / RTP / RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, and TLS
    Interface 10Base-T/100BaseTX Ethernet (RJ45)
    Alarm Triggers Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, and audio detection
    Alarm Events Event Notification: HTTP, SMTP, FTP, NAS server, and SD card
    File Upload: HTTP, SMTP, FTP, NAS Server, and SD card
    Operating system Microsoft Windows 8 / 7 / Vista / XP / 2000
    Web Browser Mozilla Firefox 7 to 43 (streaming only)
    Internet Explorer 7 / 8 / 9 / 10 / 11
    Other Players VLC: 1.1.11 or above
    QuickTime: 7 or above
    CPU SoC (System-on-Chip)
    Flash 128 MB
    RAM 256 MB
    Connectors RJ45 for network / PoE connection
    LED Indicator System power and status indicator
    Power Input IEEE 802.3af PoE Class 1
    Power Consumption Maximum 3.3 W
    Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL, and ONVIF
    Operating Temperature Starting Temperature:
    32 to 113°F (0 to 45°C)
    Working Temperature:
    14 to113°F ( -10 to 45°C)
    Dimensions (Ø x H) 2.36 x 4.53" (60 x 115 mm)
    Weight 4.87 oz (138 g)
