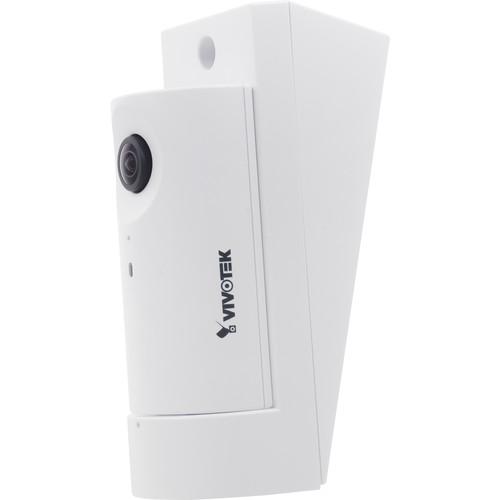

User Manual for Vivotek C Series CC8160 2MP 180° Panoramic Network Cube Camera Click to enlarge the picture
Contents of the user manual for the Vivotek C Series CC8160 2MP 180°
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek C Series CC8160 2MP 180° contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The C Series CC8160 2MP 180° Panoramic Network Cube Camera from Vivotek uses a 1/2.9" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. Its 1.66mm fixed lens delivers a 180° horizontal field of view. Audio monitoring with an effective range of 16' is possible thanks to a built-in microphone. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This cube camera is ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance devices. - Compact and low-profile design makes this camera suitable for applications in retail establishments, hotels, small businesses, offices, and classrooms
- Can be mounted on a wall or counter to capture faces at eye level
- Smart Stream II technology optimizes bandwidth efficiency
- H.264 and MJPEG dual codec compression
- Enhanced wide dynamic range
- Image settings include adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, and scheduled profile settings
- ePTZ provides 48x digital zoom
- 15° tilt range with bracket
- Alarm triggers include motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, and audio detection
- Event notification using HTTP, SMTP, FTP, and NAS server
- Five-window video motion detection
- File upload via HTTP, SMTP, FTP, and NAS server
- Live viewing for up to 10 clients
- Compatible with Windows 2000, XP, Vista, 7 & 8, Firefox 7 to 43 (streaming only), Internet Explorer 7 to 11, VLC 1.1.11 or above, and QuickTime 7 or above
- LED indicators for system power and status
- Safety certifications include CE, LVD, FCC Class B, VCCI, and C-Tick
In the Box Vivotek C Series CC8160 2MP 180° Panoramic Network Cube Camera Camera Stand Screw Pack Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek C Series CC8160 2MP 180° Panoramic Network Cube Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek CC8160 Specs | | | Sensor | 2 MP 1/2.9" CMOS | | Focal Length | 1.66mm | | Maximum Aperture | f/1.95 | | Zoom | Digital: 48x | | Lens Field of View | Horizontal: 180°
Vertical: 100°
Diagonal: 180° | | Minimum Illumination | Color: 0.22 Lux | | Shutter Speed | 1/32,000 to 1/5 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 4 Streams | | | | Streaming | Single | | Audio Formats | G.711, G.726 | | Built-In Mic | Yes | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ONVIF Profile S | | Analytics | Five-Window Video Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Windows OS Support | Windows XP, Vista, 7, 8, 2000 | | | | Memory | 256 MB RAM / 128 MB Flash | | Recording Media | None | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | Video Management Software | VAST | | Supported Languages | English
French
German
Italian
Japanese
Portuguese
Russian
Simplified Chinese
Traditional Chinese | | Internal Storage | None | | External Storage Options | NAS | | Power Source | PoE 802.3af (15 W) | | Power Consumption | 2.01 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 90% | | Dimensions | H: 3.5 x W: 2.0 x L: 1.1" / H: 88.0 x W: 50.0 x L: 28.0 mm With Tilt Mount: 5 x 2.3 x 1.6" / 127 x 58 x 40 mm | | Weight | 2.4 oz / 66.7 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 7.0 x 6.6 x 2.3" |
