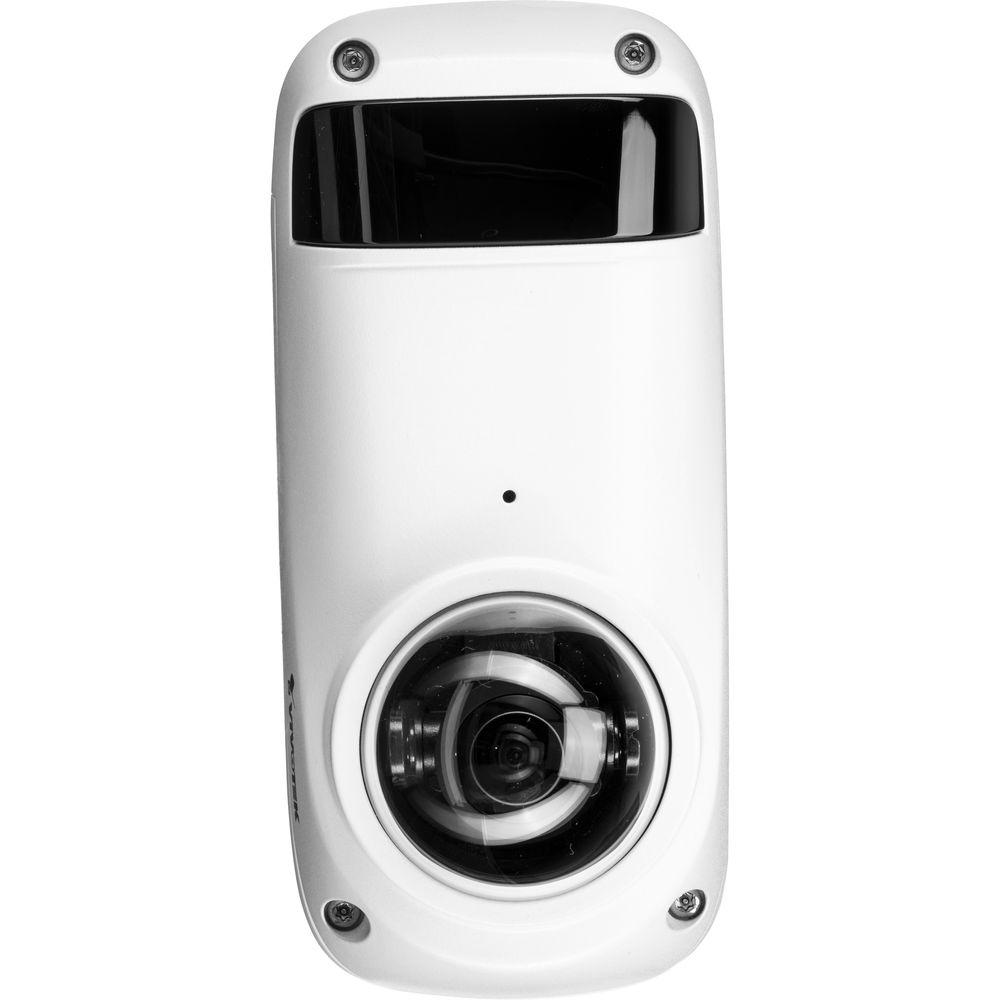

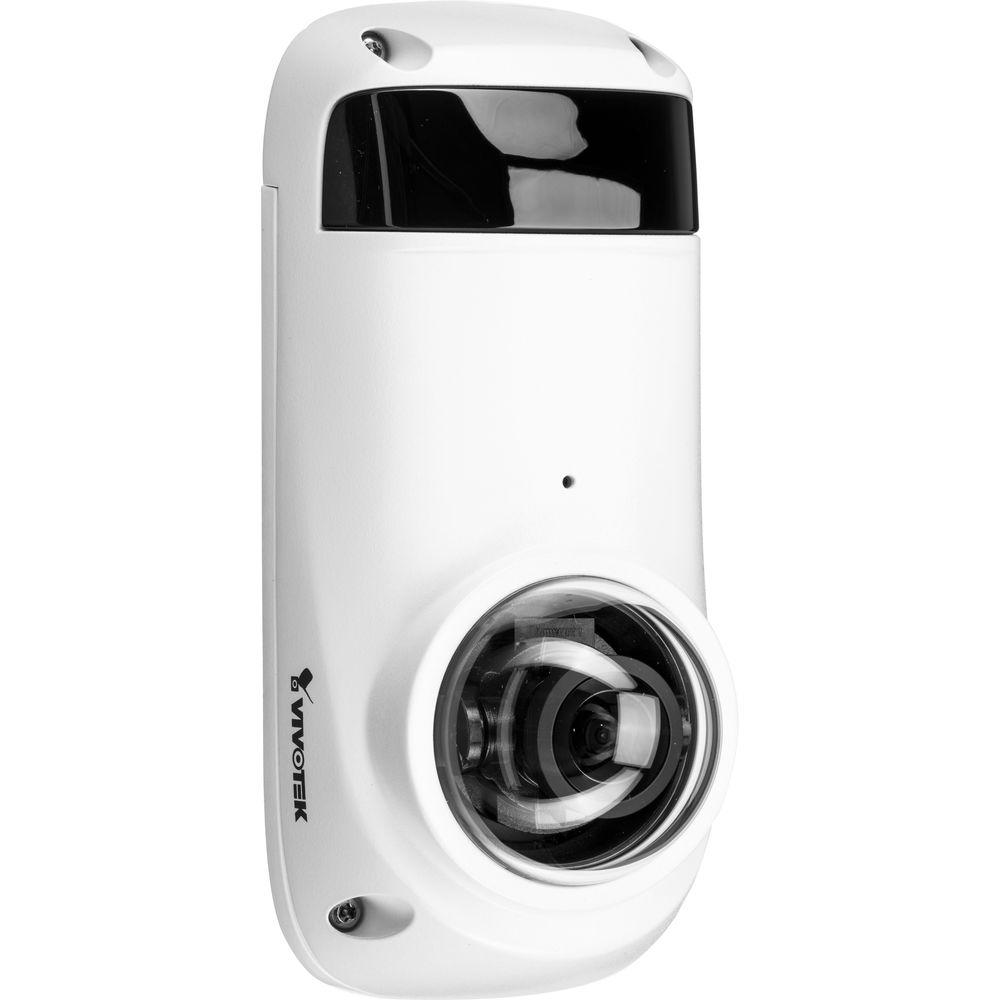

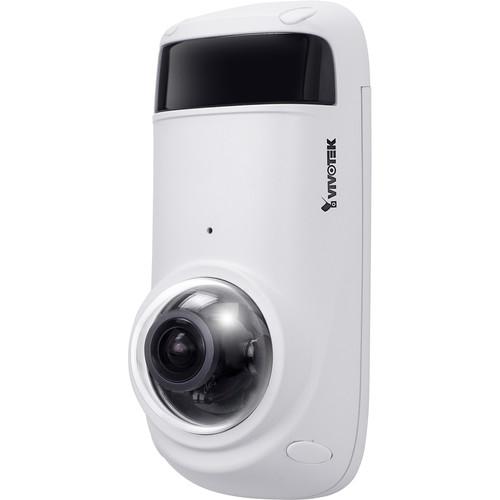

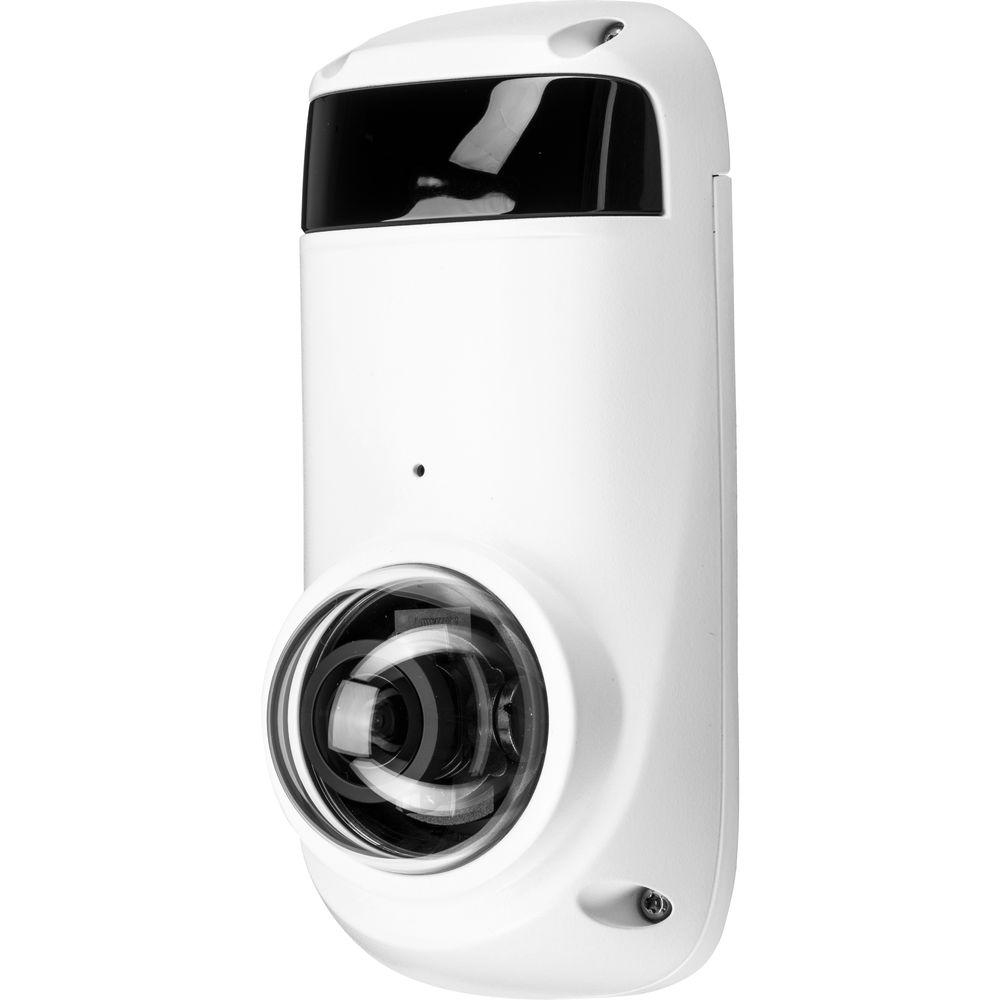

Product description Monitor an outdoor area with the C Series CC8371-HV 3MP Outdoor Vandal-Resistant Panoramic Network Fisheye Camera from Vivotek. The camera has a 3MP 1/2.8" progressive scan CMOS image sensor for a resolution of 2048 x 1536 at 30 fps. The 1.45mm fixed focal lens features a 180° panoramic field of view. Built-in IR illuminators ensure visibility in variable lighting conditions up to 49'. Motion, sound, and camera tampering detection will trigger an alarm that will alert you with a notification of the event. WDR (wide dynamic range) ensures that the camera captures clear images, while SNV (Supreme Night Visibility) technology delivers high-quality, full color surveillance video in low-light conditions. A built-in microphone allows for the recording of sound within a 16.4' radius. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. The on-board microSD slot supports cards up to 64GB. microSD cards are available for purchase separately. This device is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. Its enclosure is IP66- and IK10-rated for outdoor use in areas at high risk of vandalism. - Removable IR cut filter for day & night mode
- 180° horizontal panoramic view
- Five-window video motion detection enables you to customize motion detection for monitoring specific areas
- 100 dB wide dynamic range (WDR) for clear images in varying lighting conditions
- ePTZ with up to 48x digital zoom
- Image settings such as configurable brightness/contrast/saturation/sharpness, time stamp, text overlay, flip & mirror, scheduled profile settings, pixel calculator, 3D noise reduction, white balance, exposure control, gain, backlight compensation, and privacy masks
- Three simultaneous video streams in H.264 & MJPEG compression
- Includes mounting bracket, tilt bracket, and screw pack
In the Box Vivotek C Series CC8371-HV 3MP Outdoor Vandal-Resistant Panoramic Network Fisheye Camera Mounting Bracket Tilt Bracket Screw Pack Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek C Series CC8371-HV 3MP Outdoor Vandal-Resistant Panoramic Network Fisheye Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek CC8371 Specs | | | CPU | Multimedia SoC (System-on-Chip) | | Flash | 128 MB | | RAM | 256 MB | | | | Image Sensor | 1/2.8" progressive CMOS | | Maximum Resolution | 2048 x 1536 (3 MP) | | Lens Type | Fixed | | Focal Length | 1.45mm | | Aperture | f/2.2 | | Field of View | Horizontal: 180°
Vertical: 120°
Diagonal: 180° | | Shutter Time | 1/5 to 1/32,000 seconds | | WDR Technology | WDR Pro | | Day/Night | Removable IR cut filter for day & night function | | Minimum Illumination | Color: 0.07 lux at f/2.2
B&W: <0.001 lux at f/2.2
| | Tilt Range | ±25° | | Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plugin, 12x built-in) | | IR Illuminators | Built-in IR illuminators, effective up to 49.2' (15 m) with Smart IR | | Storage | microSD/SDHC/SDXC slot supports up to 64 GB
Seamless recording
| | | | Compression | H.264, MJPEG | | Maximum Frame Rate | 30 fps at 2048 x 1536 | | Maximum Streams | 3 simultaneous streams | | S/N Ratio | 59.2 dB | | Dynamic Range | 100 dB | | Streaming | Adjustable resolution, quality, and bit rate; Smart Stream II | | Image Settings | Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, pixel calculator, 3D-noise reduction, white balance, exposure control, gain, backlight compensation, privacy masks | | | | Capability | One-way audio | | Compression | G.711, G.726 | | Interface | Built-in microphone | | Effective Range | 16.4' (5 m) | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, SSL/TLS, ARP, NTCIP, CIFS/SMB | | Interface | 1 x 10Base-T/100BaseTX Ethernet (RJ45) | | ONVIF Conformance | Profile S, G | | | | Video Motion Detection | Five-window video motion detection | | | | Alarm Triggers | Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using HTTP, SMTP, FTP, NAS server, and microSD card
File upload via HTTP, SMTP, FTP, NAS server, and microSD card | | | | Operating System | Microsoft Windows 7, 8 | | Web Browser | Internet Explorer 10, 11 | | Other Players | VLC 1.1.11 or above
QuickTime 7 or above

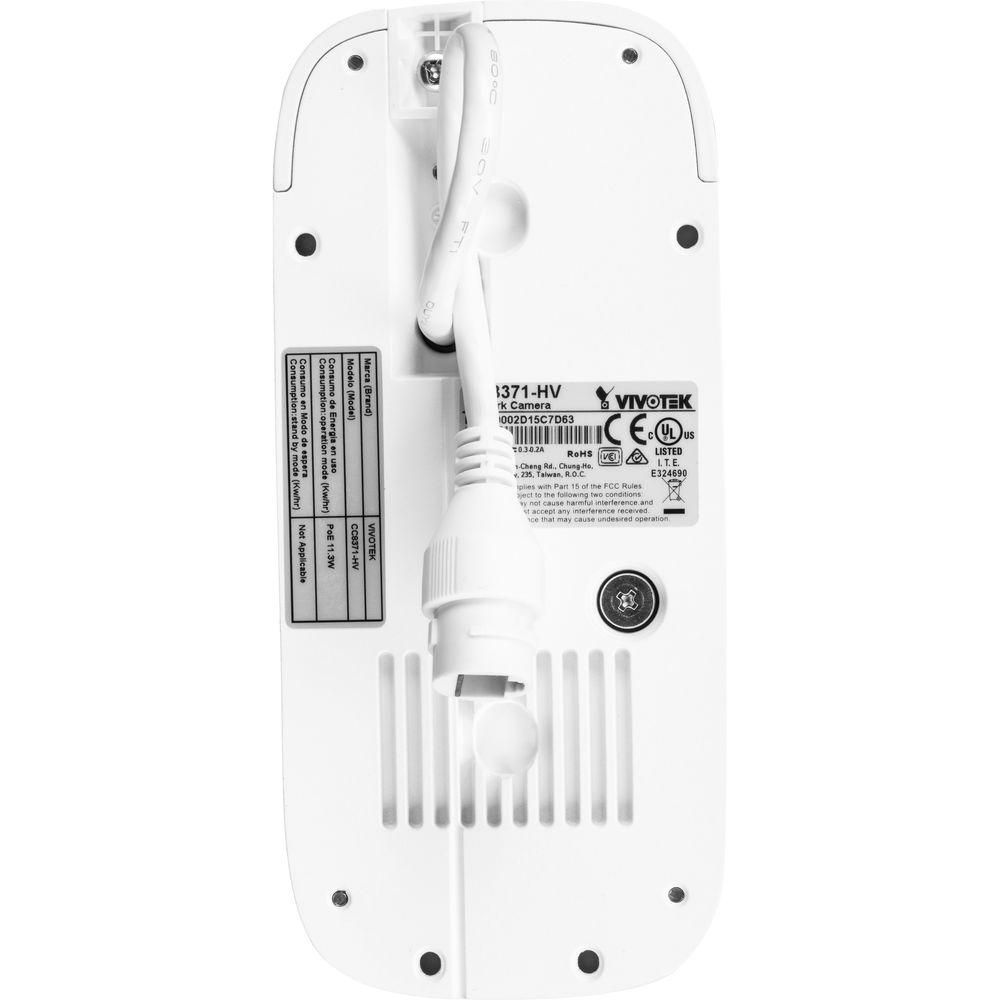

| | | | Connectors | 1 x RJ45 for network/PoE connection | | LED Indicator | System power and status indicator | | Power Input | IEEE 802.3af PoE class 0 | | Power Consumption | Max. 11.3 W | | Safety Certification | CE, LVD, FCC Class B, VCCI, C-Tick, UL | | IP Rating | IP66 | | IK Rating | IK10 | | Operating Temperature | Starting Temperature: -10 to 50°C (14 to 122°F)
Working Temperature: -20 to 50°C (-4 to 122°F)
| | Humidity | 90% | | Dimensions | 6.3 x 2.8 x 2.4" (159.9 x 71.92 x 60.2 mm) dome to rear panel
1.54" (39.2 mm) flat to rear panel
| | Weight | 1.1 lb (492 g) | | | | Package Weight | 2.48 lb | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 3.7" |
