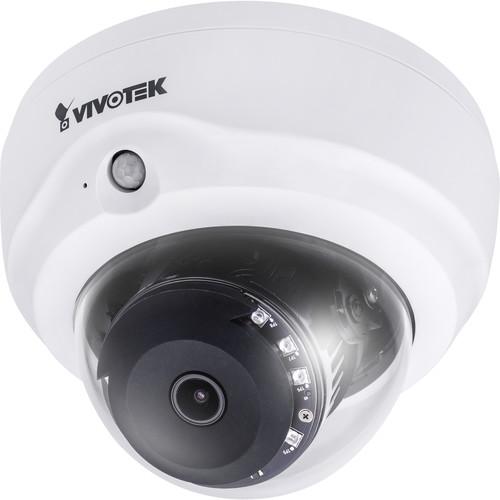

User Manual for Vivotek C Series FD816BA-HF2 2MP Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Vivotek C Series FD816BA-HF2 2MP Network
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek C Series FD816BA-HF2 2MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The C Series FD816BA-HF2 2MP Network Dome Camera with Night Vision from Vivotek captures 1080p video at up to 30 fps thanks to its 2MP 1/2.7" progressive scan CMOS sensor. Its 2.8mm fixed lens has a 142° diagonal field of view to monitor large indoor areas (depending on placement). A mechanical IR cut filter and IR LEDs help produce clear images in complete darkness from up to 98' away. The camera features a built-in PIR sensor to accurately detect motion. Additionally, it uses WDR and SNV (Supreme Night Visibility) technologies to capture color video in low-light environments. PoE technology eliminates the need for additional cable runs by combining the network connection and power into a single Ethernet cable. - 2MP 1/2.7" progressive scan CMOS sensor captures 1920 x 1080 resolution video at up to 30 fps
- 2.8mm fixed lens has a wide 142° diagonal field of view
- Mechanical IR cut filter and IR LEDs produce clear images in complete darkness from up to 98' away
- Built-in PIR sensor for accurate motion detection
- SNV (Supreme Night Visibility) for low-light conditions
- Two-way audio support with built-in microphone
- ONVIF-compliant for a wide range of compatibility
In the Box Vivotek C Series FD816BA-HF2 2MP Network Dome Camera with Night Vision Software CD Alignment Sticker Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek C Series FD816BA-HF2 2MP Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek FD816BA Specs | | | CPU | Multimedia SoC (system-on-chip) | | Flash Memory | 1 GB | | RAM | 2 GB | | | | Image Sensor | 2 MP 1/2.7" progressive scan CMOS sensor | | Maximum Resolution | 1920 x 1080 | | Lens Type | Fixed focus | | Focal Length | 2.8mm | | Aperture | f/1.8 | | Field of View | Horizontal: 122°
Vertical: 66°
Diagonal: 142° | | Shutter Time | 1/5 to 1/32,000 sec | | WDR Technology | Wide Dynamic Range | | Day/Night | Removable IR cut filter | | Minimum Illumination | 0.15 lux at f/1.8 (color)
0.01 lux at f/1.8 (B&W) | | ePTZ | 48x digital zoom (4x on IE plug-in, 12x built in) | | IR Illuminators | 8 x IR LEDs, built-in, effective up to 98.4' (30 m) with Smart IR | | Onboard Storage | microSD card slot supports up to 64 GB microSD card (available separately) | | | | Compression | H.264 and MJPEG | | Maximum Frame Rate | 30 fps at 1920 x 1080 in both compressions | | Maximum Streams | 4 simultaneous streams | | S/N Ratio | 66 dB | | Dynamic Range | 100 dB | | Video Streaming | Adjustable resolution, quality, and bit rate
Smart Stream | | Image Settings | Adjustable image size, quality, and bit rate
Time stamp, text overlay, flip/mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
Scheduled profile settings, 3D noise reduction, video rotation, defog | | | | Audio Capability | Two-way audio (full duplex) | | Compression | G.711, G.726 | | Interface | Built-in microphone
External line input
External line output | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS | | Interface | RJ45 10Base-T/100Base-TX Ethernet | | ONVIF | Supported | | | | Video Motion Detection | Five-window video motion detection | | VCA | Line crossing detection, field detection, loitering detection | | | | Alarm Triggers | Motion detection, manual trigger, digital input, periodic trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server, SD card
File upload via HTTP, SMTP, FTP, NAS server, and SD card | | | | Connectors | RJ45 for Network/PoE connection
Audio input
Audio output
12 VDC power input
1 x Digital input
1 x Digital output | | LED Indicator | System power and status indicator | | Power Input | 12 VDC
IEEE 802.3af/at PoE Class 0 | | Power Consumption | Maximum: 9 W | | Certifications | CE, LVD, FCC Class B, VCCI, C-Tick | | Operating Temperature | Starting Temperature: 32 to 122°F (0 to 50°C)
Working Temperature: 14 to 122°F (-10 to 50°C) | | | | Operating System | Microsoft Windows 7, 8, Vista, XP, 2000 | | Web Browser | Mozilla Firefox 7 to 43 (streaming only)
Internet Explorer 7, 8, 9, 10, 11 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Dimensions (Ø x H) | 5.4 x 4" (13.8 x 10.3 cm) | | Weight | 19 oz (541 g) | | | | Package Weight | 1.655 lb | | Box Dimensions (LxWxH) | 7.25 x 7.25 x 5.1" |
