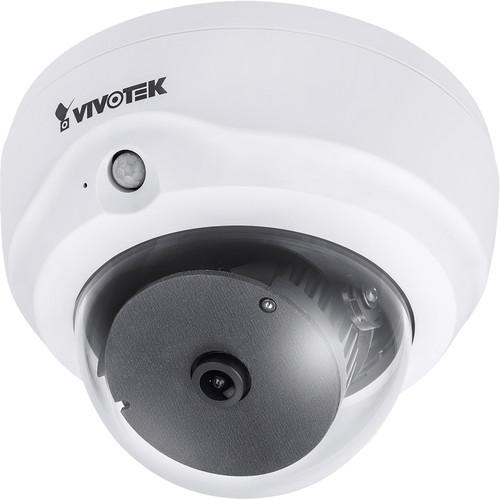

User Manual for Vivotek C Series FD8182-F1 5MP Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Vivotek C Series FD8182-F1 5MP Network
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek C Series FD8182-F1 5MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The white C Series FD8182-F1 5MP Network Dome Camera from Vivotek has a 1/3.2" progressive scan CMOS image sensor for a resolution up to 2560 x 1920 at 15 fps. Its 1.96mm fixed lens features a wide 137° horizontal field of view. Full-duplex, two-way audio is possible thanks to a built-in microphone and an external line input and output. An on-board memory card slot accepts microSD/SDHC/SDXC cards. microSD cards are available for purchase separately. H.264 & MJPEG video compression help reduce data bandwidth requirements, allowing for efficient data storage while maintaining the best possible video quality. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. This device is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. - Suitable for retail stores, schools, hospitals, and other indoor environments
- Five-window video motion detection enables you to customize motion detection for monitoring specific areas
- WDR (wide dynamic range) enhancement offers improved visibility in bright and dark lighting conditions
- Four simultaneous video streams in H.264 & MJPEG compression
- Smart Stream optimizes bandwidth efficiency
- Built-in PIR sensor helps detect unexpected events and provide real-time alerts
- Alarm triggers include motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, and audio detection
- Alarm Events include event notifications and file uploads using digital output, HTTP, SMTP, FTP, NAS server, and microSD card
- Adjustable image size, quality, and bit rate
- Time stamp, text overlay, flip & mirror
- Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D-DNR, video rotation for corridor view, and defog
- ePTZ with up to 48x digital zoom
- Has options for fixed focus lenses and remote focus lenses with built-in stepping motors and P-iris
- Support installation with AM-712 indoor conduit box (conduit box available for purchase separately)
In the Box Vivotek C Series FD8182-F1 5MP Network Dome Camera (White) VAST 32-Channel Recording Software Screw Pack Alignment Sticker/Desiccant Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek C Series FD8182-F1 5MP Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek FD8182 Specs | | | CPU | Multimedia SoC (System-on-Chip) | | Flash | 1 GB | | RAM | 4 GB | | | | Image Sensor | 1/3.2" progressive scan CMOS | | Maximum Resolution | 2560 x 1920 (5 MP) | | Lens Type | Fixed | | Focal Length | 1.96mm | | Aperture | f/2.2 | | Field of View | Horizontal: 137°
Vertical: 101°
Diagonal: 180° | | Shutter Time | 1/5 to 1/32,000 seconds | | WDR Technology | WDR enhanced | | Minimum Illumination | Color: 0.58 lux at f/2.2 | | Pan/Tilt/Zoom Functionalities | ePTZ: 48x Digital Zoom (4x on IE plugin, 12x built in) | | Storage | microSD/SDHC/SDXC card slot
Seamless recording | | | | Compression | H.264, MJPEG | | Maximum Frame Rate | In both compression modes (H.264 & MJPEG)
15 fps at 2560 x 1920
15 fps at 2048 x 1536
30 fps at 1920 x 1080 | | Maximum Streams | 4 simultaneous streams | | S/N Ratio | 67 dB | | Dynamic Range | 70 dB | | Video Streaming | Adjustable resolution, quality and bit rate, Smart Stream | | Image Settings | Adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
Scheduled profile settings, 3D-DNR, video rotation for corridor view, defog | | | | Audio Capability | Two-way audio (full-duplex) | | Compression | G.711, G.726 | | Interface | Built-in microphone
External line input
External line output | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS, CIFS/SMB | | Interface | 10Base-T/100Base-TX Ethernet (RJ45)
It is highly recommended to use standard Cat 5e and Cat 6 cables which are compliant with the 3P/ETL standard | | ONVIF Conformance | Profiles G & S | | | | Video Motion Detection | Five-window video motion detection | | PIR Sensor | Yes | | | | Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server, and microSD card
File upload via HTTP, SMTP, FTP, NAS server, and microSD card | | | | Operating System | Microsoft Windows 7, 8 | | Web Browser | Mozilla Firefox 7-43 (streaming only)
Internet Explorer 10, 11 | | Other Players | VLC 1.1.11 or above
QuickTime 7 or above | | | | Connectors | RJ45 cable connector for network/PoE connection
Audio input
Audio output
12 VDC power input
Digital input
Digital output | | LED Indicator | System power and status indicator | | Power Input | 12 VDC
IEEE 802.3af/at PoE Class 0 | | Power Consumption | Max. 9 W | | Certifications | CE, LVD, FCC Class B, VCCI, C-Tick | | Starting Temperature | 32 to 122°F (0 to 50°C) | | Working Temperature | 14 to 122°F (-10 to 50°C) | | Humidity | 90% | | Dimensions (Diam. x H) | 5.43 x 4.05" (138 x 103 mm) | | Weight | 1.06 lb (482 g) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 7.3 x 7.3 x 5.2" |
