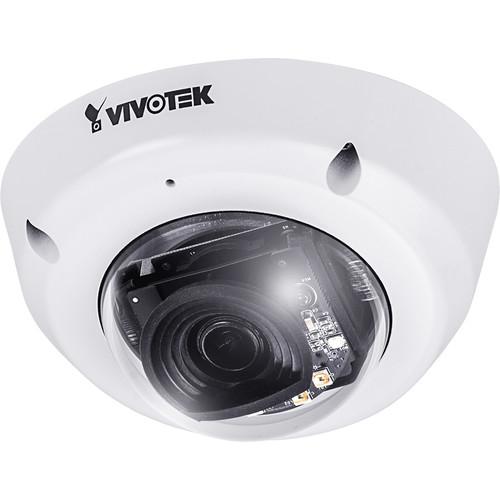

User Manual for Vivotek C Series FD8366-VF2 2MP Outdoor Network Dome Camera with 2.8mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Vivotek C Series FD8366-VF2 2MP Outdoor
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek C Series FD8366-VF2 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description Keep a watchful eye on your property with the C Series FD8366-VF2 2MP Outdoor Network Dome Camera with Night Vision from Vivotek. This camera has a 2MP 1/2.9" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. Its 2.8mm fixed lens features IR LEDs that deliver up to 49' of night vision, and a wide 113° horizontal field of view. One-way audio is available thanks to a built-in microphone. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. An on-board microSD/SDHC/SDXC slot supports cards up to 64GB. microSD cards are available for purchase separately.This device is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. Its enclosure is IP66-, IK10-, and NEMA 4X-rated for outdoor use in areas at high risk of vandalism. - Removable IR cut filter for day and night mode
- Five-window video motion detection enables you to customize motion detection for monitoring specific areas
- Four simultaneous video streams in H.264 & MJPEG compression
- WDR (wide dynamic range) enhancement offers improved visibility in bright and dark light conditions
- Image settings include adjustable image size, quality and bit rate
- Time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
- Scheduled profile settings, 3D-DNR, video rotation, and defog
- Alarm triggers include motion detection, manual trigger, digital input, periodic trigger, system boot, recording notification, camera tampering detection, and audio detection
- Alarm events include event notification and file upload via HTTP, SMTP, FTP, NAS server, and microSD card
- Smart Stream II optimizes bandwidth efficiency
- Smart IR technology works to prevent overexposure
- ePTZ with up to 48x digital zoom
- IP66-, IK10-, and NEMA 4X-rated enclosure that is suitable for outdoor use in areas at high risk of vandalism
In the Box Vivotek C Series FD8366-VF2 2MP Outdoor Network Dome Camera with 2.8mm Lens & Night Vision Screws T10 Star Driver Desiccant Bag Alignment Sticker Rubber Seal Cable Tie Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek C Series FD8366-VF2 2MP Outdoor Network Dome Camera with 2.8mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek FD8366 Specs | | | CPU | Multimedia SoC (System-on-Chip) | | Flash | 128 MB | | RAM | 256 MB | | | | Image Sensor | 1/2.9" progressive scan CMOS | | Maximum Resolution | 1920 x 1080 | | Lens Type | Fixed | | Focal Length | 2.8mm | | Aperture | f/1.8 | | Iris Type | Fixed iris | | Field of View | Horizontal: 113°
Vertical: 63°
Diagonal: 136° | | Shutter Time | 1/5 to 1/32,000 seconds | | WDR Technology | WDR enhanced | | Day/Night | Yes | | IR Cut Filter | Yes, removable | | IR Illuminators | Built-in IR illuminators | | Night Vision Range | 49.2' (15 m) | | Number of IR LEDs | 4 | | Minimum Illumination | Color: 0.16 lux at f/1.8
B&W: <0.01 lux at f/1.8
0 lux with IR illumination on | | Tilt Range | 0 to 80° | | Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plugin, 12x built in) | | Storage | microSD/SDHC/SDXC slot supports up to 64 GB
Seamless recording | | | | Compression | H.264, MJPEG | | Maximum Frame Rate | 30 fps at 1920 x 1080
60 fps at 1280 x 720 | | Maximum Streams | 4 simultaneous streams | | S/N Ratio | 50 dB | | Dynamic Range | 70 dB | | Video Streaming | Adjustable resolution, quality, and bit rate
Smart Stream II | | Image Settings | Adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
Scheduled profile settings, 3D-DNR, video rotation, defog | | | | Audio Capability | One-way audio | | Compression | G.711, G.726 | | Interface | Built-in microphone | | Effective Range | 16.4' (5 m) | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, SSL, ARP, TLS, NTCIP, CIFS/SMB | | Interface | 10Base-T/100Base-TX Ethernet (RJ45)
It is highly recommended to use standard Cat 5e and Cat 6 cables which are compliant with the 3P/ETL standard | | ONVIF Conformance | Profiles G & S | | | | Video Motion Detection | Five-window video motion detection | | | | Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using HTTP, SMTP, FTP, NAS server, and microSD card
File upload via HTTP, SMTP, FTP, NAS server, and microSD card | | | | Operating System | Microsoft Windows 7, 8 | | Web Browser | Mozilla Firefox 7-43 (streaming only)
Internet Explorer 10, 11 | | Other Players | VLC 1.1.11 or above
QuickTime 7 or above | | | | Connectors | RJ45 cable connector for 10/100 Mbps
Network/PoE connection
Built-in microphone
Digital input | | LED Indicator | System power and status indicator | | Power Input | IEEE 802.3af PoE Class 0 | | Power Consumption | Max. 5.3 W | | Certifications | CE, LVD, FCC Class B, VCCI, C-Tick, NEMA 4X, UL | | IP Rating | IP66 | | IK Rating | IK10 | | NEMA Rating | NEMA 4X | | Operating Temperature | -13 to 131°F (-25 to 55°C) | | Humidity | 90% | | Dimensions (Diam. x H) | 4.3 x 2.2" (110 x 57 mm) | | Weight | 0.82 lb (370 g) | | | | Package Weight | 1.235 lb | | Box Dimensions (LxWxH) | 5.35 x 5.3 x 4.1" |
