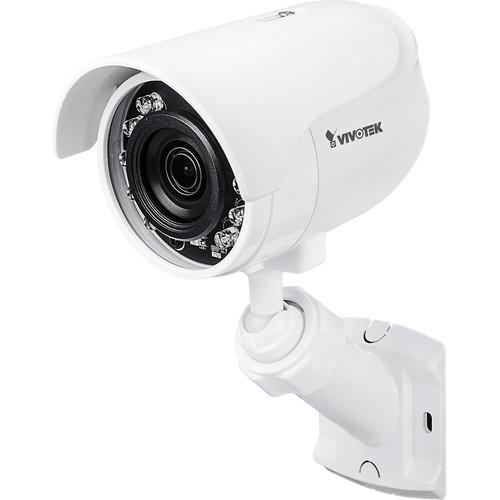

User Manual for Vivotek C Series IB8360-W 2MP Outdoor Network Mini Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Vivotek C Series IB8360-W 2MP Outdoor
- Product category: Wireless Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wireless Cameras
|
User manual for the Vivotek C Series IB8360-W 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description Monitor an outdoor area with the C Series IB8360-W 2MP Outdoor Network Mini Bullet Camera with Night Vision from Vivotek. This camera has a 1/2.9" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. Integrated IR LEDs deliver up to 39' of night vision. The 3.6mm fixed lens has a wide 89° horizontal field of view. In addition, features such as WDR (wide dynamic range), 3D-DNR, and SNV (supreme night visibility) ensure that the camera produces clear images in varying lighting conditions, while Smart Stream II and H.264/MJPEG compression optimize bandwidth while providing high-quality recording and playback.This device is ONVIF-compliant for Profiles G and S, making it compatible with a wide range of surveillance products. A built-in microSD card slot is available for on-board storage up to 64GB. microSD cards are available for purchase separately. The camera is housed in an IP66-rated enclosure, making it suitable for outdoor use. - Built-in 802.11b/g/n WLAN
- Five-window video motion detection enables you to customize motion detection for monitoring specific areas
- Smart IR, WDR (wide dynamic range), and SNV (Supreme Night Visibility) technology ensure visible images in varying lighting conditions
- Image settings include adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, defog, 3D-DNR, and video rotation
- Alarm triggers include motion detection, manual trigger, periodical trigger, system boot, recording notification, and camera tampering detection
- Free VIVOCloud mobile app
- IP66-rated for outdoor use
In the Box Vivotek C Series IB8360-W 2MP Outdoor Network Mini Bullet Camera with Night Vision Camera Stand Screws and Anchors Power Adaptor Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek C Series IB8360-W 2MP Outdoor Network Mini Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek IB8360-W Specs | | | CPU | Multimedia SoC (System-on-Chip) | | Flash | 128 MB | | RAM | 256 MB | | | | Image Sensor | 1/2.9" progressive CMOS | | Resolution | 1920 x 1080 | | Lens Type | Fixed lens | | Focal Length | 3.6mm | | Aperture | f/2.0 | | Iris Type | Fixed iris | | Field of View | Horizontal: 89°
Vertical: 46°
Diagonal: 105° | | Shutter Time | 1/5 to 1/32,000 seconds | | WDR Technology | WDR enhanced | | Day/Night | Yes | | IR Cut Filter | Removable | | IR Illuminators | Built-in IR illuminators, effective up to 39.4' (12 m) with Smart IR | | Number of IR LEDs | 10 | | Minimum Illumination | Color: 0.1 lux at f/2.0
B&W: 0.01 lux at f/2.0
0 lux with IR illumination on | | 3D-DNR | Yes | | Pan/Tilt/Zoom Functionalities | ePTZ: 48x Digital Zoom (4x on IE plugin, 12x built in) | | Storage | microSD/SDHC/SDXC slot supports cards up to 64 GB (available separately)
Seamless recording
| | | | Compression | H.264, MJPEG | | Maximum Frame Rate | 30 fps at 1920 x 1080 | | Maximum Streams | 3 simultaneous streams | | S/N Ratio | 65 dB | | Dynamic Range | 70 dB | | Video Streaming | Adjustable resolution, quality, and bit rate
Smart Stream II
| | Image Settings | Adjustable image size, quality and bit rate
Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
Scheduled profile settings, defog, 3D-DNR, video rotation | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, SNMP, SSL, TLS, ARP, CIFS/SMB | | Interface | IEEE 802.11b/g/n WLAN | | ONVIF Conformance | Profiles G and S | | | | Video Motion Detection | Five-window video motion detection | | | | Alarm Triggers | Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection | | Alarm Events | Event notification using HTTP, SMTP, FTP, NAS server, and microSD card
File upload via HTTP, SMTP, FTP, NAS server, and microSD card
| | | | Operating System | Microsoft Windows 7, 8 | | Web Browser | Mozilla Firefox 7-43 (streaming only)
Internet Explorer 10, 11
| | Other Players | VLC 1.1.11 or above
QuickTime 7 or above
| | | | Connectors | 12 VDC power input | | LED Indicator | System power and status indicator | | Power Input | 12 VDC, 1.5 A | | Power Consumption | 6.1 W max | | Safety Certification | CE, LVD, FCC Class A, VCCI, C-Tick | | IP Rating | IP66 | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Humidity | 90% | | Dimensions | 4 x 3 x 6.4" (99.22 x 74.47 x 163.53 mm) | | Weight | 6.9 oz (195 g) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 8.7 x 5.9 x 4.1" |
