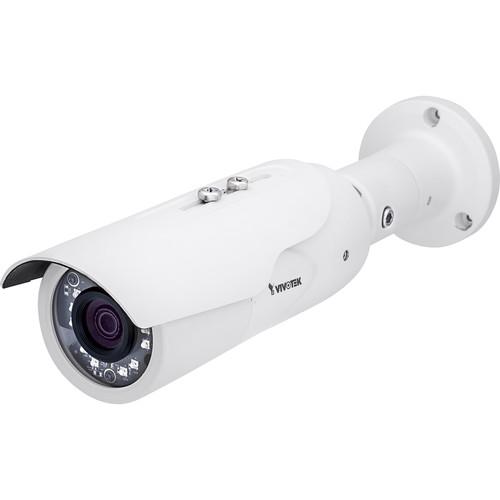

User Manual for Vivotek C Series IB8369A 2MP Outdoor Vandal-Resistant Network Bullet Camera Click to enlarge the picture
Contents of the user manual for the Vivotek C Series IB8369A 2MP Outdoor
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek C Series IB8369A 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The C Series IB8369A 2MP Outdoor Vandal-Resistant Network Bullet Camera from Vivotek has a 2MP 1/2.9" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. IR LEDs provide up to 98' of illumination in low-light conditions. The 3.6mm fixed lens delivers a 78° horizontal field of view. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 64GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. Remote viewing is possible thanks to the free VIVOCloud app for iOS and Android devices.
This bullet camera is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism. - Removable IR cut filter enables day and night functionality
- Supreme Night Visibility (SNV)
- H.264 and MJPEG dual codec compression
- Smart Stream II technology to optimize bandwidth efficiency
- ePTZ provides 48x digital zoom
- Enhanced wide dynamic range
- Image settings include time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D-DNR, video rotation, and defog
- Five-window video motion detection
- Alarm triggers include motion detection, manual trigger, periodical trigger, system boot, recording notification, and camera tampering detection
- Event notification using HTTP, SMTP, FTP, NAS server, and microSD card
- File upload via HTTP, SMTP, FTP, NAS server, and microSD card
- VIVOCloud mobile app of iOS and Android devices
- Compatible with Stratocast cloud-based solution
- VAST video management software included
- Live viewing for up to 10 clients
- System power and status LED indicators
- Compatible with Microsoft Windows 8 and 7, Internet Explorer 10 and 11, Chrome 58.0.3029 or above, VLC 1.1.11 or above, and QuickTime 7 or above
- Safety certifications include CE, LVD, FCC Class A, VCCI, C-Tick, and UL
- IP66- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism
In the Box Vivotek C Series IB8369A 2MP Outdoor Vandal-Resistant Network Bullet Camera Desiccant Bag Alignment Sticker Sunshield Cable Management Bracket Mounting Hardware Waterproof Cable Gland Limited 2-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek C Series IB8369A 2MP Outdoor Vandal-Resistant Network Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Vivotek C Series IB8369A 2MP Outdoor Vandal-Resistant Network Bullet Camera can be downloaded in PDF format at the link stated below.
Technical parametersVivotek IB8369A Specs | | | Sensor | 2 MP 1/2.9" CMOS | | Focal Length | 3.6mm | | Maximum Aperture | f/2.1 | | Zoom | Digital: 48x | | Lens Field of View | Horizontal: 78°
Vertical: 42°
Diagonal: 84° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.06 Lux
B&W: 0.01 Lux | | Shutter Speed | 1/32000 to 1/5 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 4 Streams | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles G and S | | Analytics | Five-Window Video Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Windows OS Support | Windows 7, 8 | | Mobile Operating Systems | iOS, Android | | | | Memory | 256 MB RAM / 128 MB Flash | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | IR Range | 98.43' / 30 m | | Video Management Software | VAST | | Supported Languages | English
French
German
Italian
Japanese
Portuguese
Russian
Simplified Chinese
Traditional Chinese | | Internal Storage | None | | External Storage Options | NAS | | Power Source | PoE 802.3af (15 W) | | Power Consumption | 10 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
