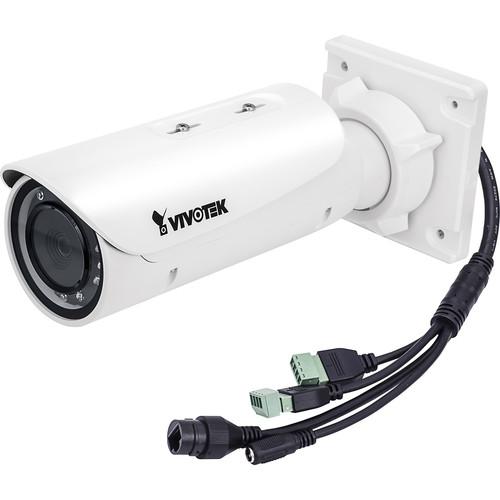

User Manual for Vivotek C Series IB8382-F3 5MP Outdoor Vandal-Resistant Network Bullet Camera Click to enlarge the picture
Contents of the user manual for the Vivotek C Series IB8382-F3 5MP Outdoor
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek C Series IB8382-F3 5MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The C Series IB8382-F3 5MP Outdoor Network Bullet Camera from Vivotek has a 3.6mm fixed lens with an 89° diagonal field of view to capture 5MP video at up to 15 fps. It features IR LEDs to capture images from up to 98' away in low light. WDR and SNV technology further help the camera produce accurate images in varying lighting conditions. The camera is housed in an IP66- and IK10-rated enclosure to protect it from dust, water, and impact, making it suitable for outdoor use in areas at risk of vandalism. - 5MP 1/3.2" progressive scan CMOS sensor captures 2560 x 1920 resolution video at up to 15 fps
- IR LEDs, WDR, and SNV technology for low-light imaging
- 3.6mm fixed lens has an 89° diagonal field of view to monitor medium-sized areas
- Smart IR technology to avoid overexposure and Smart Stream to optimize bandwidth efficiency
- IP66-rated for outdoor use
- IK10-rated for impact and vandal resistance
In the Box Vivotek C Series IB8382-F3 5MP Outdoor Vandal-Resistant Network Bullet Camera Sunshield Wall Mount Bracket Waterproof RJ45 Ethernet Enclosure Alignment Sticker Waterproof Connector Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek C Series IB8382-F3 5MP Outdoor Vandal-Resistant Network Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek IB8382 Specs | | | Image Sensor | 5 MP 1/3.2" progressive scan CMOS sensor | | Maximum Resolution | 2560 x 1920 | | Lens Type | Fixed | | Focal Length | 3.6mm | | Aperture | f/2.1 | | Field of View | Horizontal: 68°
Vertical: 51°
Diagonal: 89° | | Shutter Time | 1/5 to 1/32,000 sec | | WDR Technology | WDR enhanced | | Day/Night | IR cut filter | | Minimum Illumination | Color: 0.089 lux at f/2.1
B&W: 0.001 lux at f/2.1 | | Pan/Tilt/Zoom | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) | | Number of IR LEDs and Range | 8 x IR LEDs, up to 98' (30 m) | | Onboard Storage | SD/SDHC/SDXC card slot
Seamless recording | | | | CPU | Multimedia SoC (system-on-chip) | | Flash | 1 GB | | RAM | 4 GB | | | | Compression | H.264 and MJPEG | | Maximum Frame Rate | 15 fps at 2560 x 1920
15 fps at 2408 x 1536
30 fps at 1920 x 1080
In both compression modes | | Maximum Streams | 4 simultaneous streams | | Signal to Noise Ratio (SNR) | >65 dB | | Dynamic Range | 70 dB | | Video Streaming | Adjustable resolution, quality, and bit rate
Smart Stream | | Image Settings | Adjustable image size, quality, and bit rate
Time stamp, text overlay, flip/mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D noise reduction, video rotation, defog | | | | Capability | Two-way (full duplex) | | Compression | G.711, G.726 | | Interface | External microphone input and audio output | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS | | Interface | RJ45 10Base-T/100Base-TX Ethernet | | ONVIF | Supported | | | | Video Motion Detection | Five-window video motion detection | | | | Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server, and SD card
File upload via HTTP, SMTP, FTP, NAS server, and SD card | | | | Operating System | Microsoft Windows 8, 7, Vista, XP, 2000 | | Web Browser | Mozilla Firefox 7-43 (streaming only)
Internet Explorer 7, 8, 9, 10, 11 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Connectors | RJ45
Audio input
Audio output
12 VDC power input
Digital input
Digital output | | LED Indicator | System power and status indicator | | Power Input | 12 VDC
IEEE 802.3af/at PoE Class 0 | | Maximum Power Consumption | 9 W | | Casing | IP66- and IK10-rated, metal casing | | Safety Certification | CE, LVD, FCC Class A, VCCI, C-Tick | | Operating Temperature | Starting Temperature: 14 to 122°F (-10 to 50°C)
Working Temperature: -4 to 122°F (-20 to 50°C) | | Dimensions (Ø x H) | 3.5 x 11.5" (88 x 293 mm) | | Weight | 2.7 lb (1.3 kg) | | | | Package Weight | 3.98 lb | | Box Dimensions (LxWxH) | 16.2 x 6.35 x 5.55" |
