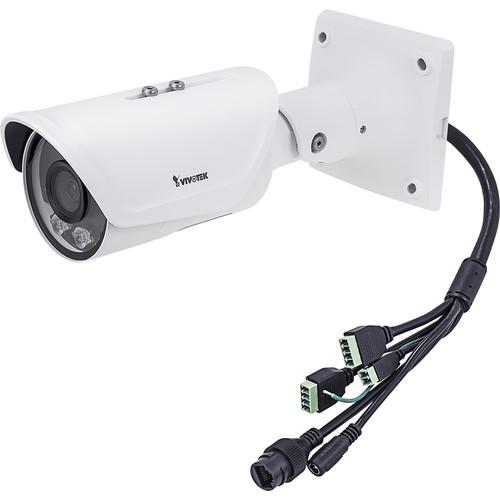

User Manual for Vivotek C Series IB9367-H 2MP Outdoor Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Vivotek C Series IB9367-H 2MP Outdoor
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek C Series IB9367-H 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The C Series IB9367-H 2MP Outdoor Network Bullet Camera with Night Vision from Vivotek uses a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. Two IR LEDs provide up to 98' of night vision. The camera's 3.6mm fixed lens delivers an 88° horizontal field of view. Two-way audio is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 64GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This bullet camera complies with ONVIF profiles G & S, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism. - Supreme Night Visibility for low-light conditions
- Removable IR cut filter for day and night functionality
- H.264, H.264, and MJPEG video compressions
- Smart Stream III optimizes bandwidth efficiency
- Three simultaneous streams
- ePTZ provides 48x digital zoom
- Camera pivots 90° vertically
- Image settings include time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, schedule profile settings, video rotation, 3D-DNR, digital image stabilization, and highlight compensation
- Five-window video motion detection
- Alarm triggers include motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, and microSD card life expectancy
- Event notifications using digital output, HTTP, SMTP, FTP, NAS server, and microSD card
- File upload via HTTP, SMTP, FTP, NAS server, and microSD card
- External microphone input and external line output
- Live viewing for up to 10 clients
- Compatible with Windows 7 and 8, Firefox 7-43 (streaming only), Internet Explorer 10-11, VLC 1.1.11 or above, QuickTime 7 or above, VAST VMS, and Shepherd camera management tool
- LED indicators for system power and status
- Trend Micro IoT Security within standard warranty period
- CE, LVD, FCC Class A, VCCI, C-Tick, and UL certified
In the Box Vivotek C Series IB9367-H 2MP Outdoor Network Bullet Camera with Night Vision L-Wrench Desiccant Bag Screw Pack Sunshield & Screws Alignment Sticker Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek C Series IB9367-H 2MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek IB9367 Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 3.6mm | | Maximum Aperture | f/1.6 | | Zoom | Digital: 48x | | Lens Field of View | Horizontal: 88°
Vertical: 47°
Diagonal: 104° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.07 Lux
B&W: 0 Lux | | Shutter Speed | 1/32,000 to 1/5 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711, G.726 | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles G & S | | Analytics | Five-Window Video Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Windows OS Support | Windows 7, 8 | | | | Memory | 512 MB RAM / 128 MB Flash | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 98.43' / 30 m | | Video Management Software | VAST, Shepherd | | Supported Languages | English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 7 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 90% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions | H: 4.6 x W: 4.6 x L: 10.5" / H: 118.0 x W: 118.0 x L: 266.0 mm | | Weight | 2.5 lb / 1142 g |
