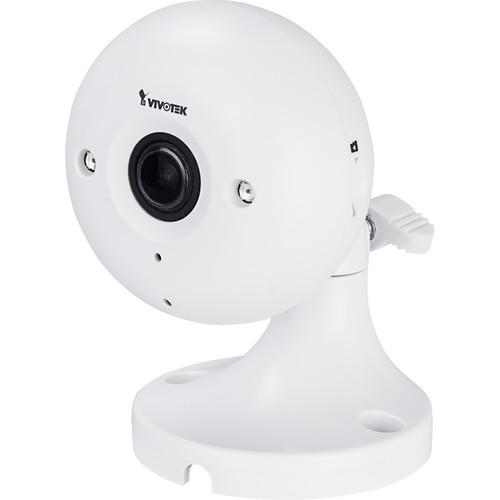

User Manual for Vivotek C Series IP8160-W 2MP Wi-Fi Network Cube Camera Click to enlarge the picture
Contents of the user manual for the Vivotek C Series IP8160-W 2MP Wi-Fi
- Product category: Wireless Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wireless Cameras
|
User manual for the Vivotek C Series IP8160-W 2MP Wi-Fi contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The C Series IP8160-W 2MP Wi-Fi Network Cube Camera from Vivotek uses a 1/2.9" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. Two IR LEDs provide up to 26' of illumination in low-light conditions. The 2.8mm fixed lens delivers a 113° horizontal field of view. Two-way audio communication is possible thanks to a built-in microphone and speaker. AEC (acoustic echo cancellation) enhances audio quality for clearer sound. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 64GB. microSD cards are available separately.
This compact Wi-Fi cube camera is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. - Suitable for small-scale retail security applications
- Built-in 802.11b/g/n WLAN
- Removable IR cut filter for day and night functionality
- H.264 and MJPEG compression
- Smart Stream II technology to optimizes bandwidth efficiency
- ePTZ provides 48x digital zoom
- Image settings include time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, defog, 3D-DNR, and video rotation
- Five-window video motion detection
- Alarm triggers include motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, and audio detection
- Event notification using HTTP, SMTP, FTP, NAS server, and microSD card
- File upload via HTTP, SMTP, FTP, NAS server, and microSD card
- 5 VDC power input via micro-USB connector
- AEC (acoustic echo cancellation)
- Built-in microphone and speaker
- Audio effective range up to 16'
- LED indicators for system power and status
- Live viewing for up to 10 clients
- Compatible with Windows 8, 7, Vista, XP, and 2000, Firefox 7-43 (streaming only), Internet Explorer 7-11, VLC 1.1.11 or above, and QuickTime 7 or above
- Safety certifications include CE, LVD, FCC Class B, VCCI, and C-Tick
In the Box Vivotek C Series IP8160-W 2MP Wi-Fi Network Cube Camera Stand with Screw Kit 5V, 2A USB Connector Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek C Series IP8160-W 2MP Wi-Fi Network Cube Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek IP8160-W Specs | | | CPU | Multimedia SoC | | Flash | 128 MB | | RAM | 256 MB | | | | Image Sensor | 1/2.9" progressive scan CMOS | | Maximum Resolution | 1920 x 1080 | | Lens Type | Fixed | | Focal Length | 2.8mm | | Field of View | Horizontal: 113°
Vertical: 63°
Diagonal: 136° | | Shutter Time | 1/32,000 to 1/5 seconds | | WDR Technology | Enhanced WDR | | Day/Night | Removable IR cut filter for day and night function | | Minimum Illumination | Color: 0.07 lux at f/1.8
B&W: <0.01 lux at f/1.8 | | ePTZ | 48x digital zoom (4x on IE plug-in, 12x built-in) | | Smart IR | Yes | | Number of IR LEDs | 2 | | IR Range | 26.25' / 8 m | | Storage | Supports microSD/SDHC/SDXC cards up to 64 GB (available separately) | | | | Compression | H.264 and MJPEG | | Maximum Frame Rate | 1920 x 1080 at 30 fps
1920 x 1080 at 15 fps (with AEC on) | | Maximum Streams | 3 simultaneous streams | | S/N Ratio | 70 dB | | Dynamic Range | 70 dB | | Video Streaming | Adjustable resolution, quality, and bit rate Smart Stream II | | Image Settings | Time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, defog, 3D-DNR, and video rotation | | | | Audio Capability | Two-way audio (full duplex) | | Compression | G.711, G.726 | | Built-In Microphone | Yes | | Built-in Speaker | Yes | | Effective Range | 16.4' / 5 m | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, SNMP, ARP | | Interface | IEEE 802.11b/g/n WLAN | | ONVIF | ONVIF Profiles G & S | | | | Video Motion Detection | Five-window video motion detection | | | | Alarm Triggers | Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using HTTP, SMTP, FTP, NAS server, and microSD card
File upload via HTTP, SMTP, FTP, NAS server, and microSD card | | | | Languages | English
French
German
Italian
Japanese
Portuguese
Russian
Simplified Chinese
Spanish
Traditional Chinese | | LED Indicators | System power and status | | VMS Software | VAST | | Operating Systems Supported | Windows 8, 7, Vista, XP, and 2000 | | Supported Web Browsers | Firefox 7-43 (streaming only), Internet Explorer 7-11 | | Other Players | VLC 1.1.11 or above, QuickTime 7 or above | | Connectors | Micro-USB for 5 VDC power input | | Power Input | 5 VDC | | Maximum Power Consumption | 8 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 90% | | Safety Certification | CE, LVD, FCC Class B, VCCI, C-Tick | | Dimensions | 2.6 x 3.8 x 3.0" / 66.0 x 97.5 x 75.9 mm | | Weight | Camera Unit: 2.2 oz / 62 g
Stand: 2 oz / 58 g | | | | Package Weight | 0.97 lb | | Box Dimensions (LxWxH) | 7.05 x 6.7 x 2.8" |
