Product description The C Series VC8101 2MP Modular Network Camera System from Vivotek includes a base camera core and a CU8163-H camera unit. The 1.6mm lens camera unit has a 1/2.7" CMOS sensor to capture 1080p video at up to 30 fps. The fisheye design of the lens provides a 180°-wide field of view to make it suitable for covert surveillance. WDR Pro helps the camera produce clear images in varying lighting conditions, making this camera system suited to ATM and retail surveillance, as well as in retail stores and banks. Smart Stream II and H.264 compression help optimize bandwidth use while still providing high-quality recording and playback. - Modular design includes a camera unit and lens unit
- 1/2.7" progressive scan CMOS sensor captures 1080p video at up to 30 fps
- Designed for discreet installations
- Smart Stream II maximizes efficiency
- Video rotation for corridor view
- WDR Pro and 3D Noise Reduction help produce accurate images in varying lighting conditions

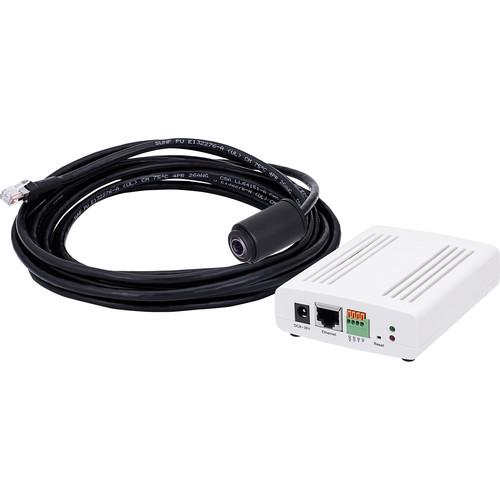

In the Box Vivotek C Series VC8101 2MP Modular Network Camera System with Fisheye Lens CU8163-H Fisheye Lens Unit Installation Kit Limited 2-Year Warranty Guides & Manuals wtdfdavuwrcybzftfzabbqrv Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek C Series VC8101 2MP Modular Network Camera System with Fisheye Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Vivotek C Series VC8101 2MP Modular Network Camera System with Fisheye Lens can be downloaded in PDF format at the link stated below.
Technical parametersVivotek CU8163-H Specs | | | CPU | Multimedia SoC (system-on-chip) | | Flash | 128 MB | | RAM | 256 MB | | On-board Storage | microSD/SDHC/SDXC card slot for seamless recording | | Video Compression | H.264 and MJPEG | | Maximum Streams | 4 simultaneous streams | | Video Streaming | Adjustable resolution, quality, and bit rate
Configurable video cropping for bandwidth conservation
Smart Stream II | | Image Settings | Adjustable image size, quality, and bit rate
Time stamp, text overlay, flip/mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, and privacy masks
Scheduled profile settings, 3D noise reduction, and video rotation | | Audio | Two-way audio (full duplex) | | Audio Compression | G.711 and G.726 | | Interface | External audio input and output | | Users | Live viewing for up to 10 clients | | Network Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, ARP, SSL, TLS | | Network Interface | RJ45 10Base-T/100Base-TX Ethernet | | ONVIF | Supported | | Video Motion Detection | Five-window video motion detection | | Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection | | Alarm Events | Event notification using HTTP, SMTP, FTP, NAS server, and microSD card
File upload via HTTP, SMTP, FTP, NAS server, and microSD card | | Connectors | RJ45 connector for Network/PoE connection
RJ12 connector for camera unit connection
Audio input
Audio output
8-36 VDC power input
Digital input
Digital output | | LED Indicator | System power and status indicator | | Power Input | DC 8-36 VDC, IEEE 802.3af PoE Class 2 | | Power Consumption | Maximum 5.5 W | | Safety Certification | CE, LVD, FCC Class B, VCCI, C-Tick | | Operating Temperature | Starting Temperature: 32 to 122°F (0 to 50°C)
Working Temperature: 14 to 122°F (-10 to 50°C) | | System Requirements | Operating System: Microsoft Windows 8/7/Vista/XP/2000
Web Browser: Mozilla Firefox 7-10 (streaming only), Internet Explorer 7.x or 8.x
Other Players: VLC 1.1.11 or above, QuickTime 7 or above | | Operating System | Microsoft Windows 8/7/Vista/XP/2000 | | Web Browser | Mozilla Firefox 7-10 (streaming only), Internet Explorer 7.x or 8.x | | Video Playback | VLC 1.1.11 or above, QuickTime 7 or above | | Dimensions | 4.1 x 3.3 x 1.2" (105 x 84 x 30 mm) | | Weight | 0.26 lb (119 g) | | | | Image Sensor | 1/2.7" progressive scan CMOS sensor | | Maximum Resolution | 1920 x 1080 at 30 fps | | Focal Length | 1.6mm fisheye | | Aperture | f/2.0 | | Field of View | Horizontal: 180°
Vertical: 140° | | Shutter Time | 1/5 to 1/32,000 sec | | Wide Dynamic Range | WDR Pro | | Minimum Illumination | Color: 0.66 lux at f/2.0 | | Zoom | 12x digital zoom | | S/N Ratio | 47 dB | | Dynamic Range | 100 dB | | Operating Temperature | Starting Temperature: 32 to 122°F (0 to 50°C)
Working Temperature: 14 to122°F (-10 to 50°C) | | Dimensions | Without Cable: 0.9 x 1.7" (24 x 43 mm) Cable Length: 16' (5 m) | | Weight | 0.4 lb (221 g) | | | | Package Weight | 1.295 lb | | Box Dimensions (LxWxH) | 6.95 x 5.75 x 5.15" |
