Vivotek C Series VS8100-V2 D1 1-Channel

Search your instruction manual in PDF to download

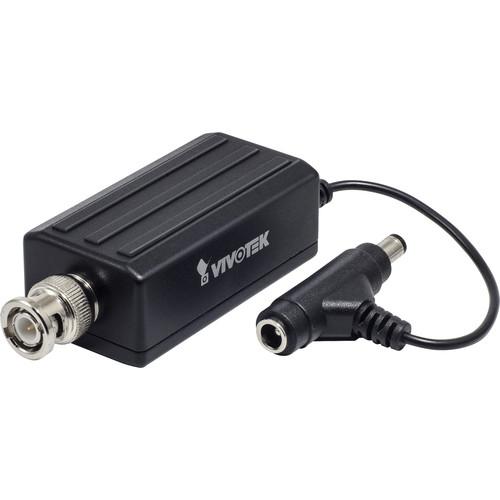

User Manual for Vivotek C Series VS8100-V2 D1 1-Channel Analog-to-Digital Video Server

Click to enlarge the picture
Vivotek C Series VS8100-V2 D1 1-Channel Analog-to-Digital Video Server Contents of the user manual for the Vivotek C Series VS8100-V2 D1 1-Channel
  • Product category: Video Encoders & Decoders Vivotek
  • Brand: Vivotek
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Vivotek Video Encoders & Decoders

User manual for the Vivotek C Series VS8100-V2 D1 1-Channel contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Vivotek product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!



Product description

Convert from an analog to a digital surveillance system by using the C Series VS8100-V2 D1 1-Channel Analog-to-Digital Video Server from Vivotek. This device offers H.264 and MJPEG video compression at a resolution of 720 x 480 at up to 30 fps, and converts analog video sources to a compressed digital signal. There is support for a myriad of analog cameras, including PTZ cameras that can be controlled via a built-in RS-485 port.Additionally, there is support for up to three simultaneous streams with individually configured frame rates, resolutions, and image quality. Five-window video motion detection enables you to customize motion detection for monitoring specific areas. One-way audio is possible thanks to an external microphone input.The device is ONVIF-compliant with Profile S, making it compatible with a wide range of surveillance products.
  • Compact size for front-end installation and discreet surveillance applications
  • Smart Stream II technology reduces bandwidth and storage consumption by up to 50%
  • Live viewing for up to 10 clients
  • Alarm triggers include motion detection, camera tampering detection, audio detection, recording notification, system boot, manual trigger, and periodical trigger
  • Event notification and file uploads via HTTP, SMTP, FTP, and NAS server
  • Image settings include adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, and 2D-DNR
  • 12 VDC power sharing with analog camera
In the Box Vivotek C Series VS8100-V2 D1 1-Channel Analog-to-Digital Video Server
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Vivotek C Series VS8100-V2 D1 1-Channel Analog-to-Digital Video Server in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Vivotek VS8100-V2 Specs

    CPU Multimedia SoC (System-on-Chip)
    Flash Memory 128 MB
    RAM 256 MB
    Compression H.264, MJPEG
    Maximum Frame Rate 30 fps at 720 x 480
    25 fps at 720 x 576
    Maximum Streams 3 simultaneous streams
    Video Streaming Adjustable resolution, quality and bit rate, Smart Stream II
    Image Settings Adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 2D-DNR
    Audio Capability One-way audio
    Compression G.711, G.726
    Interface External microphone input
    Users Live viewing for up to 10 clients
    Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, SSL/ TLS, ARP
    Interface 1 x 10Base-T/100Base-TX Ethernet (RJ45)
    It is highly recommended to use standard Cat 5e & Cat 6 cables which are compliant with the 3P/ETL standard
    ONVIF Conformance Profile S
    Video Motion Detection Five-window video motion detection
    Alarm Triggers Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
    Alarm Events Event notification using HTTP, SMTP, FTP, and NAS server
    File upload via HTTP, SMTP, FTP, and NAS server
    Operating System Microsoft Windows 8, 7
    Web Browser Mozilla Firefox 7-43 (streaming only)
    Internet Explorer 10, 11
    Other Players VLC: 1.1.11 or above
    QuickTime: 7 or above
    Connectors 1 x RJ45 for network connection
    1 x male BNC for analog video input
    1 x RS-485 terminal block
    1 x audio input
    1 x 12 VDC output (to camera)
    1 x 12 VDC input (from power source)
    Supported PTZ Protocols DynaDome/SmartDome, Pelco D, Pelco P, Lilin, Samsung scc643, and customized
    LED Indicator Status power and status indicator
    Operating Temperature 32 to 122°F (0 to 50°C)
    Humidity 90%
    Safety Certification CE, LVD, FCC Class B, VCCI, C-Tick
    Power Input 12 VDC
    Power Consumption 3 W max
    Dimensions (D x W x H) 2.5 x 1.3 x 1" (65 x 34 x 25 mm)
    Weight 2.25 oz (64 g)
    Package Weight 0.25 lb
    Box Dimensions (LxWxH) 5.5 x 2.8 x 1.7"
