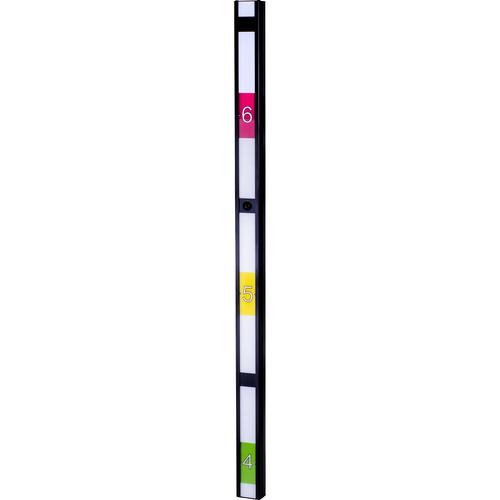

User Manual for Vivotek CC8160 2MP Network Height Strip Camera Click to enlarge the picture
Contents of the user manual for the Vivotek CC8160 2MP Network Height Strip
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek CC8160 2MP Network Height Strip contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description Monitor your business at eye-level with the black CC8160 2MP Network Height Strip Camera from Vivotek at resolutions up to 1920 x 1080. Equipped with a 180° lens, the height strip gives you a wide-angle view of the comings and goings on your premises. The recommended installation height of 5.5' allows the camera to capture facial images even when the subject is wearing a hat or hood. Discreet and easy to install, the height strip can be used in retail stores, banks, restaurants, and small businesses. - Discreet eye-level video surveillance
- 180° horizontal panoramic view
- Built-in 802.3af PoE capability
- Smart Stream III encoding for bandwidth efficiency
- WDR for enhanced image quality when there are contrasting lighting conditions within one frame
- ONVIF compliance ensures compatibility with a wide range of surveillance equipment
In the Box Vivotek CC8160 2MP Network Height Strip Camera (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek CC8160 2MP Network Height Strip Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek CC8160(HS) Specs | | | Sensor | 2 MP 1/2.9" CMOS | | Focal Length | 1.66mm | | Maximum Aperture | f/1.95 | | Zoom | Digital: 48x | | Lens Field of View | Horizontal: 180°
Vertical: 100°
Diagonal: 180° | | Minimum Illumination | Color: 0.22 Lux | | Shutter Speed | 1/32000 to 1/5 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | , 4 Streams | | | | Security | HTTPS | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, , IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ONVIF | | Analytics | Motion detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Windows OS Support | Windows XP, Vista, 7, 8, 2000 | | | | Memory | 256 MB RAM / 128 MB Flash | | Recording Media | None | | Pan/Tilt | None | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | PoE 802.3af (15 W) | | Power Consumption | 2.01 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 90% | | Dimensions |
