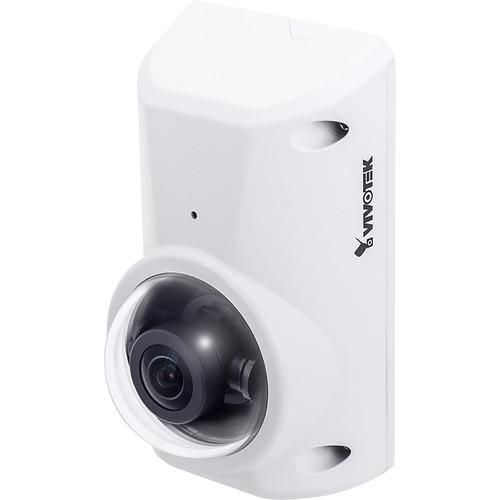

User Manual for Vivotek CC8370-HV 3MP Outdoor Network Fisheye Camera Click to enlarge the picture
Contents of the user manual for the Vivotek CC8370-HV 3MP Outdoor Network Fisheye
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek CC8370-HV 3MP Outdoor Network Fisheye contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The CC8370-HV 3MP Outdoor Network Fisheye Camera from Vivotek offers 2048 x 1536 resolution video at up to 30 fps thanks to its 1/2.8" progressive scan CMOS sensor. It has a wide 180° field of view, thereby providing complete video security with no dead-zones. The camera has a built-in microphone which records sound within a 16.4' radius. Featuring an anti-ligature and anti-grip design, this camera is IP66- and IK10-rated, making it suitable for outdoor use and is also vandal resistant. It features a microSD slot for up to 64GB on-board storage via a microSD card (available separately). - 3MP 1/2.8" progressive-scan CMOS sensor captures 2048 x 1536 resolution video at up to 30 fps
- 1.6mm fixed lens provides a 180° horizontal panoramic view
- WDR Pro (100 dB) to provide visibility in high contrast scenes
- SNV (Supreme Night Visibility)
- 3D noise reduction for low-light conditions
- H.264 and M-JPEG compression codecs
- Built-in microSD slot supports up to 64GB
- Anti-ligature and anti-grip design for added safety
- IP66- and IK10-rated housing
In the Box Vivotek CC8370-HV 3MP Outdoor Network Fisheye Camera Mounting Bracket for Junction Box Mounting Hardware Waterproof Ethernet Cable Housing Alignment Sticker Limited 2-Year Warranty Brochure PDF 333.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek CC8370-HV 3MP Outdoor Network Fisheye Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek CC8370 Specs | | | Image Sensor | 3 MP 1/2.8" progressive scan CMOS sensor | | Maximum Resolution | 2048 x 1536 | | Lens Type | Fixed | | Focal Length | 1.6mm | | Aperture | f/2.0 | | Field of View | Horizontal: 180°
Vertical: 130°
Diagonal: 180° | | Shutter Time | 1/5 to 1/32,000 s | | WDR Technology | WDR Pro | | Minimum Illumination | 0.05 lux @ f/2.0 (color) | | ePTZ | 4x digital zoom IE plug-in | | On-board Storage | microSD slot supports up to 64 GB | | | | Compression | H.264 and M-JPEG | | Maximum Frame Rate | 30 fps at 2048 x 1536 | | Maximum Streams | 3 simultaneous streams | | S/N Ratio | 58.8 dB | | Dynamic Range | 100 dB | | Video Streaming | Adjustable resolution, quality and bitrate | | Image Settings | Adjustable image size, quality and bit rate; time stamp, text overlay, flip & mirror & rotate; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings | | | | Capability | Audio input | | Compression | G.711, G.726 | | Interface | Built-in microphone | | Effective Range | 16.4' (5 m) | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS | | Interface | RJ45 10Base-T/100Base-TX Ethernet | | ONVIF | Supported | | | | Alarm Triggers | Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using HTTP, SMTP, FTP, NAS server and SD card
File upload via HTTP, SMTP, FTP, NAS server and SD card | | | | CPU | Multimedia SoC (system-on-chip) | | Flash | 128 MB | | RAM | 256 MB | | | | Operating System | Microsoft Windows 8, 7, Vista, XP, 2000 | | Web Browser | Mozilla Firefox 7 to 10 (streaming only)
Internet Explorer 7, 8, 9, 10 | | Other Players | VLC 1.1.11 or above
QuickTime 7 or above | | | | Video Motion Detection | Five-window video motion detection | | Connectors | RJ45 for network/PoE connection | | LED Indicator | System power and status indicator | | Power Input | IEEE 802.3af PoE Class 1 | | Power Consumption | 4.9 W maximum | | Casing | IP66- and IK10-rated | | Safety Certification | CE, LVD, FCC Class B, VCCI, C-Tick, UL | | Operating Temperature | Starting Temperature: 14 to 122°F (-10 to 50°C)
Working Temperature: -4 to 122°F (-20 to 50°C) | | Dimensions | 4.5 x 2.6 x 2.3" (11.5 x 6.5 x 5.9 cm) | | Weight | 11.7 oz (331 g) | | | | Package Weight | 1.295 lb | | Box Dimensions (LxWxH) | 5.35 x 5.3 x 4.15" |
