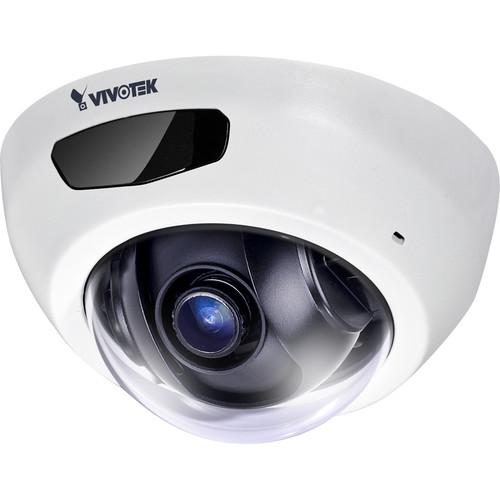

User Manual for Vivotek FD8166A-N C Series 2MP Network Mini Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Vivotek FD8166A-N C Series 2MP Network
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek FD8166A-N C Series 2MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The FD8166A-N C Series 2MP Network Mini Dome Camera with Night Vision from VIVOTEK is equipped with a 2MP CMOS sensor making it able to capture 1920 x 1080 resolution video at up to 30 fps. IR LEDs provide night vision illumination of objects up to 20' away, while WDR (Wide Dynamic Range) enhanced and SNV (Supreme Night Visibility) technology help the camera produce accurate images in varying lighting conditions. The camera's 2.8mm lens has a wide-angle 136° field of view to monitor large indoor areas in retail and business environments. - Captures 1080p video at up to 30 fps
- IR LEDs for night vision up to 20'
- Wide Dynamic Range Enhanced
- PoE technology for single-cable power and video transmission
- Built-in microphone picks up audio from up to 16' away
In the Box Vivotek FD8166A-N C Series 2MP Network Mini Dome Camera with Night Vision Focus Kit Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek FD8166A-N C Series 2MP Network Mini Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek FD8166A Specs | | | CPU | Multimedia SoC (System-on-Chip) | | Flash | 128 MB | | RAM | 256 MB | | | | Image Sensor | 1/2.8" progressive scan CMOS sensor | | Maximum Resolution | 1920 x 1080 (2 MP) | | Lens Type | Fixed | | Focal Length | 2.8mm | | Aperture | f/1.8 | | Field of View | Horizontal: 113°
Vertical: 63°
Diagonal: 136° | | Shutter Time | 1/5 to 1/32,000 sec | | Wide Dynamic Range | WDR enhanced | | Day/Night | Supported | | Minimum Illumination | Color: 0.05 lux @ f/1.8
B/W: < 0.001 lux @ f/1.8
0 lux with IR illumination on | | Pan Range | 45° | | Tilt Range | 33-90° | | Pan/Tilt/Zoom Functionalities | ePTZ:
48x digital zoom (4x on IE plug-in, 12x built-in) | | IR Illuminators | Built-in 940 nm IR illuminators, effective up to 20' (6 m) with Smart IR | | On-board Storage | microSD/SDHC/SDXC card slot
Seamless recording | | | | Compression | H.264 and MJPEG | | Maximum Frame Rate | 30 fps at 1920 x 1080 (in both compression modes) | | Maximum Streams | 4 simultaneous streams | | S/N Ratio | 47 dB | | Dynamic Range | 70 dB | | Video Streaming | Adjustable resolution, quality, and constant bit rate control
Smart Stream II | | Image Settings | Time stamp, text overlay, flip/mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
Scheduled profile settings, 3D noise reduction, video rotation, defog | | | | Audio Capability | One-way audio | | Compression | G.711, G.726 | | Interface | Built-in microphone | | Effective Range | 16.4' (5 m) | | | | Operating System | Microsoft Windows 7, Vista, XP, 2000 | | Web Browser | Mozilla Firefox 7 to 43 (streaming only)
Internet Explorer 7, 8, 9, 10, 11 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/ RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS | | Interface | RJ45 10Base-T/100Base-TX Ethernet | | ONVIF | Supported | | Video Motion Detection | Five-window video motion detection | | Video Analytics | Line crossing detection, field detection, loitering detection | | | | Alarm Triggers | Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using HTTP, SMTP, FTP, NAS server, and SD Card
File upload via HTTP, SMTP, FTP, NAS server, and SD card | | | | Connectors | RJ45 cable connector for 10/100 Mbps
Network/PoE connection | | LED Indicator | System power and status indicator | | Safety | CE, LVD, FCC Class B, VCCI, C-Tick, UL | | Humidity | 90% | | Operating Temperature | Starting: 32 to 122°F (0 to 50°C)
Working: 14 to 122°F (-10 to 50°C) | | Power Input | IEEE 802.3af PoE Class 2 | | Power Consumption | Maximum 4.75 W | | Dimensions | 3.5 x 1.9" (90 x 50 mm) | | Weight | 5.1 oz (145.8 g) | | | | Package Weight | 0.645 lb | | Box Dimensions (LxWxH) | 5.3 x 5.3 x 3.6" |
