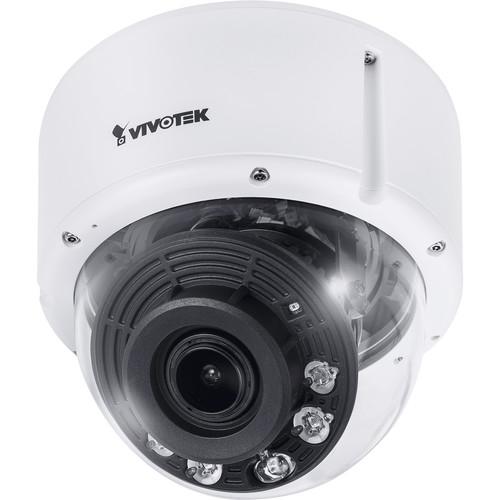

Vivotek FD9365-EHTV 2MP Outdoor Network Dome

User Manual for Vivotek FD9365-EHTV 2MP Outdoor Network Dome Camera with Night Vision & Heater

• Product category: Wired IP Cameras Vivotek
• Brand: Vivotek
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Vivotek Wired IP Cameras

Product description

• Equipped with an embedded heater

• Multimedia SoC CPU

• 4-9mm remote focus, precise iris lens

• Removable IR cut filter enables day and night functionality

• Supreme Night Visibility (SNV II)

• Smart IR II technology

• H.265, H.264, and MJPEG compression

• 4 simultaneous streams

• Smart Stream III optimizes bandwidth efficiency

• Seamless recording

• 140 dB WDR Pro II

• 66 dB S/N ratio

• Camera pivots 353° horizontally & 65° vertically

• 180° rotation range

• ePTZ provides 48x digital zoom

• Image settings include time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, video rotation, 3D-DNR, DIS, and HLC

• Smart motion detection to reduce false alarms

• Smart motion detection includes five-window video motion detection, human detection, and time filter

• Alarm triggers include motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, and microSD card life expectancy

• Event notification using digital output, HTTP, SMTP, FTP, NAS server, and microSD card

• File upload via HTTP, SMTP, FTP, NAS server, and microSD card

• RJ45 connector

• Built-in microphone

• Audio input and output

• 16' effective audio range

• 2 digital inputs and 2 digital outputs

• TV output

• System power and status LED indicators

• VAST video management software included

• Live viewing for up to 10 clients

• Compatible with Microsoft Windows 8 and 7, Internet Explorer 10 and 11, Mozilla Firefox 7 to 43 (streaming only), VLC 1.1.11 or above, and QuickTime 7 or above

• Trend Micro IoT Security within standard warranty period

• Safety certifications include CE, LVD, FCC Class A, VCCI, C-Tick, and UL

• IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Vivotek FD9365 Specs

Memory	512 MB RAM / 128 MB Flash
Recording Media	microSD (Up to 64 GB)
Pan/Tilt	None
I/O Connections	1 x RJ45 1 x Power
IR Range	164.04' / 50 m
Video Management Software	VAST
Supported Languages	English French German Italian Japanese Portuguese Simplified Chinese Spanish Traditional Chinese
Internal Storage	None
External Storage Options	NAS
Power Source	AC, DC, PoE 802.3at (30 W)
Power Consumption	24.8 W (With Heater)
Operating Temperature	-58 to 122°F / -50 to 50°C
Operating Humidity	90%
IP Rating	IP66
IK Rating	IK10
