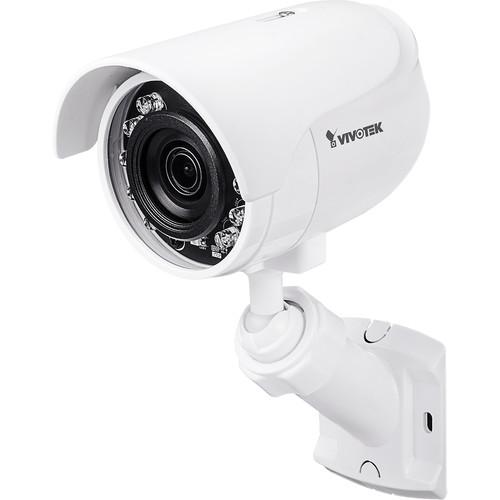

User Manual for Vivotek IB8360 2MP Outdoor Mini Bullet Network Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Vivotek IB8360 2MP Outdoor Mini Bullet
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek IB8360 2MP Outdoor Mini Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The IB8360 2MP Outdoor Mini Bullet Network Camera from Vivotek is a 1/2.9" CMOS sensor mini bullet camera with up to 1920 x 1080 pixels resolution at 30 fps. This camera has a 3.6mm fixed lens and integrated IR LEDs with a maximum range of 39'. It features SNV technology for low-light environments and Smart Stream II technology to optimize bandwidth efficiency. It has a wide dynamic range of 70 dB, day and night functionality, and a removable IR cut filter. This camera has a weatherproof IP66-rated housing to withstand rain and dust and can be powered via PoE, simplifying installation. - Smart IR technology to avoid overexposure
- Supreme Night Visibility (SNV) technology for low-light environments
- Smart Stream II technology reduces bandwidth and storage consumption by up to 50% while retaining image quality
- VIVOCloud mobile app for Android and iOS
- ePTZ 48x digital zoom (4x on IE plug-in, 12x built-in)
In the Box Vivotek IB8360 2MP Outdoor Mini Bullet Network Camera with Night Vision Stand with Screw Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek IB8360 2MP Outdoor Mini Bullet Network Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek IB8360 Specs | | | Sensor | 2 MP 1/2.9" CMOS | | Focal Length | 3.6mm | | Maximum Aperture | f/2 | | Zoom | Digital: 12x | | Lens Field of View | Horizontal: 89°
Vertical: 46°
Diagonal: 105° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 Lux
B&W: 0 Lux | | Shutter Speed | 1/32000 to 1/5 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, , IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UPnP | | | | Application Programming Interface (API) | ONVIF | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Windows OS Support | Windows 7, 8 | | Mobile Operating Systems | iOS, Android | | | | Memory | 256 MB RAM / 128 MB Flash | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | IR Range | 39.37' / 12 m | | Internal Storage | None | | External Storage Options | Cloud, NAS | | Power Source | PoE 802.3af (15 W) | | Power Consumption | 6.1 W | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | Dimensions | H: 3.9 x W: 2.9 x L: 6.4" / H: 99.2 x W: 74.5 x L: 163.5 mm | | Weight | 7.8 oz / 220.0 g | | | | Package Weight | 1.07 lb | | Box Dimensions (LxWxH) | 8.7 x 5.85 x 4.05" |
