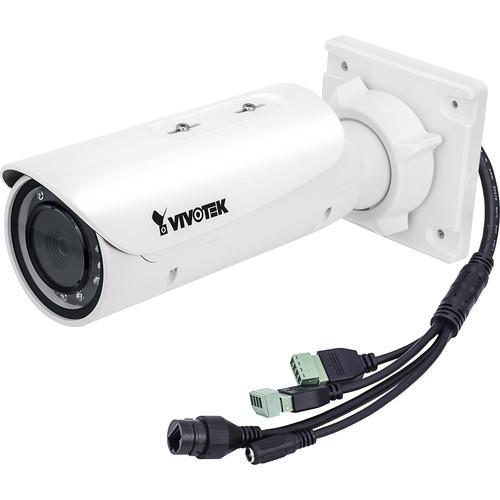

User Manual for Vivotek IB9371-EHT 3MP Outdoor Bullet Network Camera with Heater and 3-9mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Vivotek IB9371-EHT 3MP Outdoor Bullet Network
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek IB9371-EHT 3MP Outdoor Bullet Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The IB9371-EHT 3MP Outdoor Bullet Network Camera from Vivotek features WDR enhancement for visibility in environments with variable lightning. It features Smart Stream and 3D-DNR that enable the camera to optimize resolution on a desired object or area to maximize bandwidth efficiency.
The IP66-rated housing is also designed to help the camera body withstand rain and dust to ensure smooth operation under harsh weather conditions. Additionally, the wide operating temperature range further enhances the IB9371-EHT camera's performance and reliability in cold and hot weather even with PoE. This camera can be deployed in high contrast outdoor environments such as parking areas and streets. - 3-9mm varifocal, P-iris, remote focus lens
- Built-in IR illuminators, effective up to 98' (30m)
- WDR enhancement for visibility in extremely varying lighting conditions
- Smart focus system for remote and precise focus adjustment
- Weatherproof IP66-rated housing
- Extreme weather support with PoE
- SNV (Supreme Night Visibility) for low light conditions
- Video rotation for corridor view
- IK10-rated vandal resistance
In the Box Vivotek IB9371-EHT 3MP Outdoor Bullet Network Camera with Heater and 3-9mm Varifocal Lens Sunshield Wall Mount Bracket Desiccant Bag Waterproof Connector Mounting Hardware Limited 3-Year Warranty Brochure PDF 470.3kbzrddvwqsvutcsuzwuayvryraqux Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek IB9371-EHT 3MP Outdoor Bullet Network Camera with Heater and 3-9mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek IB9371 Specs | | | Image Sensor | 3 MP 1/2.8" progressive scan CMOS sensor | | Maximum Resolution | 2048 x 1536 | | Lens Type | Varifocal | | Focal Length | 3-9 mm | | Aperture | f/1.2 to f/2.3 | | Auto Iris | P-iris | | Field of View | 39 to 82° (Horizontal)
29 to 60° (Vertical)
49 to 108° (Diagonal) | | Shutter Time | 1/5 to 1/16,000 sec | | WDR Technology | WDR pro | | Day/Night | Removable IR cut filter for day & night function | | Minimum Illumination | 0.01 lux at f/1.2 (Color)
0.001 lux at f/1.2 (B&W) | | Pan/Tilt/Zoom | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) | | IR Range | 98.4' (30 m) | | Onboard Storage | SD/SDHC/SDXC card slot
Seamless recording | | | | CPU | Multimedia SoC (System-on-Chip) | | Flash | 128 MB | | RAM | 512 MB | | | | Compression | H.265, H.264, and MJPEG | | Maximum Frame Rate | H.264 & H.265: 30 fps at 2048 x 1536
MJPEG: 15 fps at 2048 x 1536 | | Maximum Streams | 3 simultaneous streams | | SNR | 60 dB | | Dynamic Range | 100 dB | | Streaming | Adjustable resolution, quality, and bit rate
Smart Stream II | | Image Settings | Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
Scheduled profile settings, 3D-DNR, video rotation, defog, DIS | | | | Capability | Two-way (full duplex) | | Compression | G.711, G.726 | | Interface | External microphone input and audio output | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS | | Interface | 10Base-T/100 BaseTX Ethernet (RJ45) Recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. | | ONVIF | Supported | | | | Video Motion Detection | Five-window video motion detection | | | | Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server, and SD card
File upload via HTTP, SMTP, FTP, NAS server, and SD card | | | | Operating System | Microsoft Windows 7/8/Vista/XP/2000 | | Web Browser | Mozilla Firefox 7 to 10 (streaming only)
Internet Explorer 7, 8, 9, 10, 11 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Smart Focus System | Remote focus | | Connectors | RJ45 cable connector for Network/PoE connection
Audio input
Audio output
12 VDC power input
1 x Digital input
1 x Digital output | | LED Indicator | System power and status indicator | | Power Input | 12 VDC
IEEE 802.3at PoE Class 4 | | Power Consumption | Maximum 23.6 W (Heater On) | | Casing | Weatherproof IP66-rated housing
Vandal-resistant IK10-rated metal housing | | Safety Certification | CE, LVD, FCC Class A, VCCI, C-Tick, UL | | Operating Temperature | Starting Temperature: -40 to 122°F (-40 to 50°C)
Working Temperature: -58 to 122°F (-50 to 50°C) | | Humidity | 90% | | Dimensions (Ø x H) | 3.5 x 11.5" (88 x 293 mm) | | Weight | 2.6 lb (1.4 kg) | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 13.3 x 6.5 x 6.1" |
