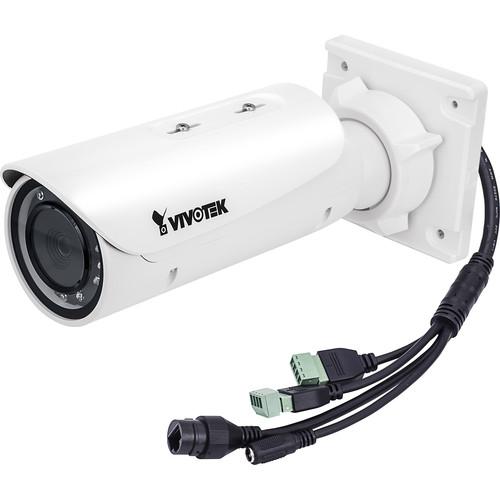

User Manual for Vivotek IB9371-HT 3MP Outdoor Network Bullet Camera Click to enlarge the picture
Contents of the user manual for the Vivotek IB9371-HT 3MP Outdoor Network Bullet
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek IB9371-HT 3MP Outdoor Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The IB9371-HT 3MP Outdoor Network Bullet Camera from Vivotek offers 3MP images at 30 fps and employs H.265 technology to provide efficient image compression rates. In addition, VIVOTEK's Smart Stream II Technology enables the camera to optimize resolution for a desired object or area, and therefore, to maximize efficiency of bandwidth usage. Combining both H.265 and Smart Stream II technologies, the IB9371-HT Camera can reduce bandwidth and storage consumption while maintaining image quality. The IB9371-HT Camera is also equipped with WDR Pro and SNV features. Additionally, the camera’s IP66-rated housing ensures the ability to withstand rain and dust for smooth operation under harsh weather conditions. The camera's housing is also IK10-rated for protection against acts of vandalism and other impacts. - 1/2.8" progressive CMOS sensor
- Smart Stream II optimizes bandwidth efficiency
- WDR Pro for clear visibility in high contrast environments
- Built-in IR Illuminators, effective up to 98'
- Remote focus for focus adjustments
- Weatherproof IP66-rated and vandal-resistant IK10-rated housing
- SNV (Supreme Night Visibility) for low light conditions
- Video rotation for corridor view
In the Box Vivotek IB9371-HT 3MP Outdoor Network Bullet Camera Sunshield Wall Mount Bracket Desiccant Bag Alignment Sticker Waterproof Connector Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek IB9371-HT 3MP Outdoor Network Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek IB9371 Specs | | | Image Sensor | 1/2.8" Progressive CMOS | | Maximum Resolution | 2048 x 1536 | | Lens Type | Varifocal | | Focal Length | 3-9 mm | | Aperture | f/1.2 to f/2.3 | | Auto Iris | P-iris | | Field of View | 39 to 82° (Horizontal)
29 to 60° (Vertical)
49 to 108° (Diagonal) | | Shutter Time | 1/5 to 1/16,000 sec | | WDR Technology | WDR pro | | Day/Night | Removable IR cut filter for day & night function | | Minimum Illumination | Color 0.01 lux at f/1.2
B&W: 0.001 lux at f/1.2 | | Pan/Tilt/Zoom | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) | | IR Illuminators | 98.4' (30.0 m) | | Onboard Storage | SD/SDHC/SDXC card slot
Seamless recording | | | | CPU | Multimedia SoC (System-on-Chip) | | Flash | 128 MB | | RAM | 512 MB | | | | Compression | H.265, H.264, and MJPEG | | Maximum Frame Rate | H.264 & H.265: 30 fps at 2048 x 1536, 30 fps at 1920 x 1080
MJPEG: 15 fps at 2048 x 1536 | | Maximum Streams | 3 simultaneous streams | | S/N Ratio | 60 dB | | Dynamic Range | 100 dB | | Streaming | Adjustable resolution, quality, and bit rate
Smart Stream II | | Image Settings | Time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D-DNR, video rotation, defog | | | | Capability | Two-way (full duplex) | | Compression | G.711, G.726 | | Interface | External microphone input and audio output | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS | | Interface | 10Base-T/100 BaseTX Ethernet (RJ45) Recommended to use standard CAT5e & CAT6 cables compliant with the 3P/ETL standard. | | ONVIF | Supported | | | | Video Motion Detection | Five-window video motion detection | | | | Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server, and SD card
File upload via HTTP, SMTP, FTP, NAS server, and SD card | | | | Operating System | Microsoft Windows 7/8/Vista/XP/2000 | | Web Browser | Mozilla Firefox 7 to 43 (streaming only)
Internet Explorer 7, 8, 9, 10, 11 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Smart Focus System | Remote focus | | Connectors | RJ45 cable connector for Network/PoE connection
Audio input
Audio output
12 VDC power input
1 x Digital input
1 x Digital output | | LED Indicator | System power and status indicator | | Power Input | 12 VDC
IEEE 802.3af/at PoE Class 0 | | Power Consumption | Maximum 11 W | | Casing | Weatherproof IP66-rated housing
Vandal-resistant IK10-rated metal housing (Metal Casing) | | Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL | | Operating Temperature | Starting Temperature: 14 to 122°F (-10 to 50°C)
Working Temperature: -4 to 122°F (-20 to 50°C) | | Humidity | 90% | | Dimensions (Ø x H) | 3.5 x 11.5" (88 x 293 mm) | | Weight | 2.6 lb (1.2 kg) |
