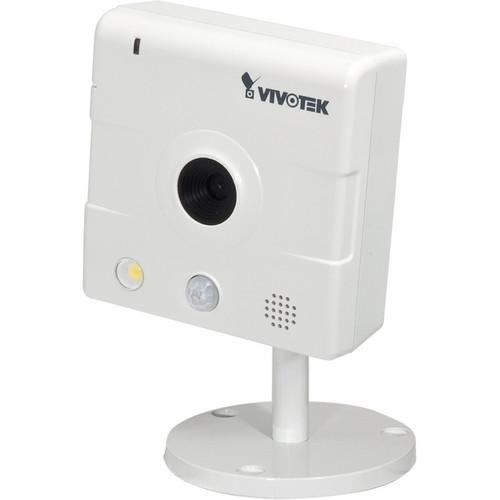

User Manual for Vivotek IP8133W Wired Cube Network Camera with 3.45mm Lens Click to enlarge the picture
Contents of the user manual for the Vivotek IP8133W Wired Cube Network Camera
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek IP8133W Wired Cube Network Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description Featuring a compact white body and a 1MP 1/4" CMOS sensor, the IP8133 Wired Cube Network Camera from Vivotek is useful for home security systems. It has a 3.45mm f/2.4 lens that will capture a wide viewing angle of 55°, which combines with the sensor for a resolution of 1280 x 800 at 30 fps. The camera also offers built-in microphone and speaker for full two-way audio support and it has H.264, MJPEG, and MPEG-4 compression to limit bandwidth and storage usage.
The camera can be set up with a wired Ethernet connection with support for power over said connection and it has a PIR sensor for motion detection. It also has a tamper detection setting and has white light illuminators for events to better capture the scene. Additionally, users can access the video remotely via an Internet browser. - 1 MP CMOS sensor delivers clear and crisp images at a resolution of 1280 x 800
- Real-time H.264, MPEG-4 and MJPEG compression (triple codec)
- Tamper detection and Vivotek's 32-channel recording software
- Built-in microphone and 2-way audio to communicate with people in another location or to ward off intruders
- Multiple real-time H.264, MPEG-4, and MJPEG compression formats for versatile applications
- Privacy button allows you to pause monitoring when not required
- Tamper detection feature sets off an alarm when an unauthorized user is trying to break/vandalize your network camera
- PIR sensor for detecting the presence of people in the surveillance area
- White-light LED for illuminating dark rooms or dim-lit areas to deliver clear footage
- Compact, elegant design blends the camera into your décor
- Supports ONVIF standard to simplify integration and enhance interoperability
In the Box Vivotek IP8133W Wired Cube Network Camera with 3.45mm Lens (White) Stand Screws Power Adapter Software CD-ROM Limited 2-Year Warranty User Manual PDF 7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek IP8133W Wired Cube Network Camera with 3.45mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek IP8133 Specs | Lens Type | Board lens | | Focal Length | 3.45mm | | Aperture | f/2.4 | | Field of View | Horizontal: 47.4°
Vertical: 30.6°
Diagonal: 54.7° | | Shutter Speed | 1/15 ti 1/25,000 sec | | Image Sensor | 1/4" CMOS sensor in 1280 x 800 resolution | | Resolution | 1280 x 800 | | Minimum Illumination | 3.0 lux at f/2.4 | | Video Compression | H.264, MJPEG, MPEG-4 | | Streaming | Multiple simultaneous streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS | | Frame Rates | H.264: 30 fps at 1280 x 800
MJPEG: 30 fps at 1280 x 800
MPEG-4: 30 fps at 1280 x 800 | | Image Settings | Adjustable image size, quality and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGC, AWB, AES
BLC (Backlight Compensation)
Supports privacy masks | | Audio Compression | GSM-AMR speech encoding; Bit Rate: 4.75-12.2 kbps
G.711 audio encoding; Bit Rate: 64 kbps, μ-Law or A-Law mode selectable | | Audio Interface | Built-in microphone
Built-in speaker | | Connectivity | 10/100 Mbps Ethernet RJ45 | | ONVIF | Supported | | Protocol Support | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, and 802.1X | | Alarm and Event Management | Triple-window video motion detection
Tamper detection
One D/I and one D/O for external sensor and alarm
PIR (Passive Infrared Sensor) for human detection
White-light illuminators when event triggered
Event notification using HTTP, SMTP or FTP
Local recording of MP4 file | | Security | Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission | | Users | Live viewing for 10 clients | | LED Indicator | System power and status indicator
System activity and network link indicator
Privacy button on | | System Requirements | Windows 7, Vista, XP, 2000
Mozilla Firefox, Internet Explorer 7.x or above
Cell Phone: 3GPP player
Real Player 10.5 or above
Quicktime: 6.5 or above | | Power Requirements | 5 VDC
802.3af compliant PoE | | Power Consumption | 4.3 W | | Operating Conditions | Temperature: 32 to 104°F / 0 to 40°C
Humidity: Up to 90% relative | | Dimensions | 1.3 x 3.1 x 3.1" / 32 x 79 x 80 mm | | Weight | 7.1 oz / 200 g | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 11.0 x 8.3 x 2.8" |
