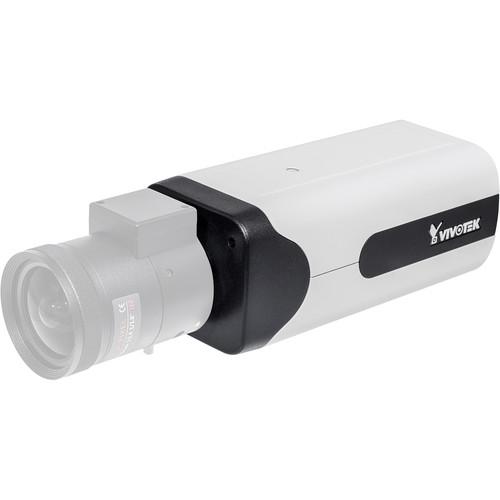

User Manual for Vivotek IP816A 2MP Network License Plate Camera with 4-18mm Lens Click to enlarge the picture
Contents of the user manual for the Vivotek IP816A 2MP Network License Plate
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek IP816A 2MP Network License Plate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The IP816A 2MP Network License Plate Camera from VIVOTEK is a surveillance camera designed for license plate capture (LPC) with a headlight filter design and specialized firmware for traffic monitoring. Featuring dedicated LPC firmware and mutually compatible lens options, the IP816A-LPC camera is designed for parking- and street-based applications. With external IR LEDs (available separately), this camera delivers images in varied lighting conditions.Equipped with a P-iris lens HD sensor enabling viewing resolution of 1920 x 1080 at a smooth 30 fps, the IP816A-LPC Camera is capable of capturing high-quality and high-resolution video in many conditions.The RBF (Remote Back Focus) System adjusts the focus of the camera, allowing installers to adjust focus in complicated or sensitive installation environments. Value-added features like EIS and Snapshot Focus allow installers to adjust camera positions and focus. - 60 fps @ 1920 x 1080 (one-stream mode only)
- Headlight filter to block visible light
- 3D Noise Reduction for low-light conditions
- WDR Pro (100 dB) to provide visibility in high light contrast scenes
- SNV (Supreme Night Visibility)
- RBF system to assist with focus adjustment
- EIS (Electronic Image Stabilization) to control image stability
- Video rotation for corridor view
- Lens profile for lens selection
In the Box Vivotek IP816A 2MP Network License Plate Camera with 4-18mm Lens Limited 3-Year Warranty Brochure PDF 466.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek IP816A 2MP Network License Plate Camera with 4-18mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek IP816A-LPC Specs | | | CPU | Multimedia SoC (System-on-Chip) | | Flash | 256 MB | | RAM | 384 MB | | | | Image Sensor | 1/1.9" Progressive CMOS | | Maximum Resolution | 1920 x 1080 (2 MP) | | Lens Type | Varifocal | | Focal Length | 4 to 18mm | | Aperture | f/1.4 to f/13 | | Auto Iris | P-iris (DC-iris reserved) | | Field of View | 29 to 106° (Horizontal)
16 to 60° (Vertical)
33 to 130° (Diagonal) | | Shutter | 1/400 to 1/10,000 sec.
1/5 to 1/10,000 sec. (maximum) | | WDR Technology | WDR Pro | | Day/Night | Removable IR cut filter for day & night function | | Minimum Illumination | 300 lux @ IR On
600 lux @ IR Off | | PTZ Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in) | | Onboard Storage | SD/SDHC/SDXC card slot | | | | Compression | H.264 & MJPEG | | Maximum Frame Rate | 30 fps @ 1920 x 1080
60 fps @ 1920 x 1080 (In one-stream mode only) | | Maximum Streams | 2 simultaneous streams | | S/N Ratio | 50.8 dB | | Dynamic Range | Up to 100 dB | | Video Streaming | Adjustable resolution, quality and bit rate | | Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, Smart Stream, 3DNR, EIS, video rotation, snapshot focus | | | | Audio Capability | Two-way Audio (full duplex) | | Compression | AAC, G.711, G.726 | | Interface | External microphone input
Audio output | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS | | Interface | 10 Base-T/100 BaseTX Ethernet (RJ45) | | ONVIF | Supported | | | | Video Motion Detection | Triple-window video motion detection | | | | Alarm Triggers | Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using HTTP, SMTP, FTP, and NAS server
SD Card
File upload via HTTP, SMTP, FTP, NAS server, and SD card | | | | OS Compatibility | Microsoft Windows 8/7/Vista/XP/2000 | | Web Browser | Mozilla Firefox 7 to 10 (streaming only)
Internet Explorer 7/8/9/10/11 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Smart Focus System | RBF (Remote Back Focus) | | Connectors | RJ45 for Network/PoE connection
Audio input/output
BNC Video output
24 VAC power input
12 VDC power input
3 x Digital input
1 x Digital output
RS-485 | | LED Indicator | System power and status indicator | | Power Input | 12 VDC / 24 VAC
IEEE 802.3af PoE | | Power Consumption | Maximum 9.2 W (12 VDC)
Maximum 15.4 W (24 VAC)
Maximum 12.2 W (PoE) | | Agency & Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick, UL | | Operating Temperature | Starting Temperature: 32 to 122°F (0 to 60°C)
Working Temperature: 14 to 122°F (-10 to 60°C) | | Dimensions | 9.1 x 2.7 x 2.5" (23 x 7 x 6.4 cm) | | Weight | 22.3 oz (632 g) |
