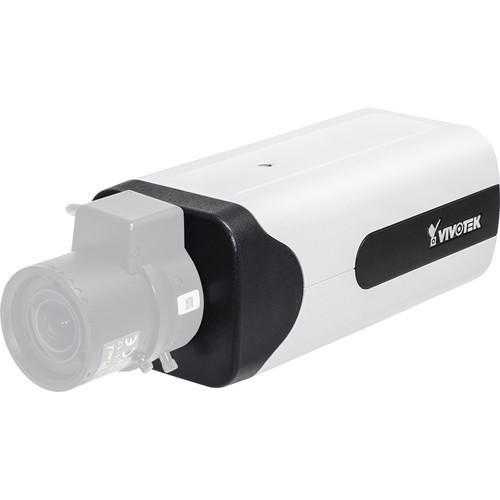

User Manual for Vivotek IP9171-HP 3MP Network Box Camera Click to enlarge the picture
Contents of the user manual for the Vivotek IP9171-HP 3MP Network Box Camera
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek IP9171-HP 3MP Network Box Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The IP9171-HP 3MP Network Box Camera from VIVOTEK offers 3MP images at 30 fps and employs H.265 technology to provide efficient image compression rates. It features VIVOTEK's Smart Stream II Technology to optimize resolution on a desired object or area. Thanks to H.265 and Smart Stream II technologies, the IP9171-HP Camera can reduce bandwidth and storage consumption while maintaining image quality. Additionally, WDR Pro allows the camera to capture both the dark and bright areas of an image, combining the differences to create a realistic representation of the original scene. SNV technology makes full-color surveillance video possible even under low-light conditions. The combination of high resolution and low storage consumption makes the camera suitable for a wide range of video surveillance, including government and industrial buildings, retail environments, airports, railway stations, and schools. Further enhancing the camera's ability to adapt to its environment, precise software controls maintain the iris opening of the camera lens at an optimal level, providing sharpness as well as depth of field. The IP9171-HP Camera is also equipped with the VIVOTEK RBF (Remote Back Focus) System, empowering the installer to adjust focus both precisely and flexibly. - H.265 compression technology
- Smart Stream II to optimize bandwidth efficiency
- WDR Pro for visibility in high contrast environments
- Remote back focus for focus adjustments
- SNV (Supreme Night Visibility) for low light conditions
- Video rotation for corridor view
- Lens profile ensures full compatibility for different lens options
- Gigabit Ethernet for high transmission speed
In the Box Vivotek IP9171-HP 3MP Network Box Camera Lens Mounting Bracket Screw Pack Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek IP9171-HP 3MP Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Vivotek IP9171-HP 3MP Network Box Camera can be downloaded in PDF format at the link stated below.
Technical parametersVivotek IP9171 Specs | | | Image Sensor | 1/2.8" Progressive CMOS | | Maximum Resolution | 2048 x 1536 | | Lens Type | Varifocal | | Focal Length | 2.8-8mm | | Aperture | f/1.2 to f/1.95 | | Auto Iris | P-iris | | Field of View | 51 to 114° (Horizontal)
39 to 84° (Vertical)
63 to 143° (Diagonal) | | Shutter Time | 1/5 to 1/16,000 sec | | WDR Technology | WDR pro | | Day/Night | Removable IR cut filter for day & night function | | Minimum Illumination | Color: 0.01 lux at f/1.2
B&W: 0.001 lux at f/1.2 | | Pan/Tilt/Zoom | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) | | Onboard Storage | microSD/SDHC/SDXC card slot for seamless recording | | | | CPU | Multimedia SoC (System-on-Chip) | | Flash | 128 MB | | RAM | 512 MB | | | | Compression | H265, H264, and MJPEG | | Maximum Frame Rate | H.264 & H.265: 30 fps at 2048 x 1536
MJPEG: 15 fps at 2048 x 1536 | | Maximum Streams | 3 simultaneous streams | | S/N Ratio | 60 dB | | Dynamic Range | 100 dB | | Streaming | Adjustable resolution, quality, and bit rate
Smart Stream II | | Image Settings | Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
Scheduled profile settings, video rotation, 3D-DNR, defog, Snapshot Focus, Lens Profile, DIS | | | | Capability | Two-way (full duplex) | | Compression | G.711, G.726 | | Interface | External microphone input and audio output | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS | | Interface | 10Base-T/100 BaseTX Ethernet (RJ45) Recommended to use standard CAT5e & CAT6 cables compliant with the 3P/ETL standard. | | ONVIF | Supported | | | | Video Motion Detection | Five-window video motion detection | | | | Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server, and SD card
File upload via HTTP, SMTP, FTP, NAS server, and SD card | | | | Operating System | Microsoft Windows 7/8/Vista/XP/2000 | | Web Browser | Mozilla Firefox 7 to 10 (streaming only)
Internet Explorer 7, 8, 9, 10, 11 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Smart Focus System | Remote back focus via UI | | Connectors | RJ45 cable connector for Network/PoE connection
Audio input
Audio output
12 VDC power input
24 VAC power input
3 x Digital input
1 x Digital output | | LED Indicator | System power and status indicator | | Power Input | 12 VDC / 24 VAC
IEEE 802.3af/at PoE Class 0 | | Power Consumption | Maximum 8.6 W | | Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL | | Operating Temperature | Starting Temperature: 32 to 122°F (0°C to 50°C)
Working Temperature: 14 to 122°F (-10 to 50°C) | | Humidity | 90% | | Dimensions (D x W x H) | 8.3 x 2.7 x 2.5" (21 x 7 x 6.3 cm) | | Weight | 21.9 oz (623 g) | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 10.4 x 7.2 x 3.7" |
