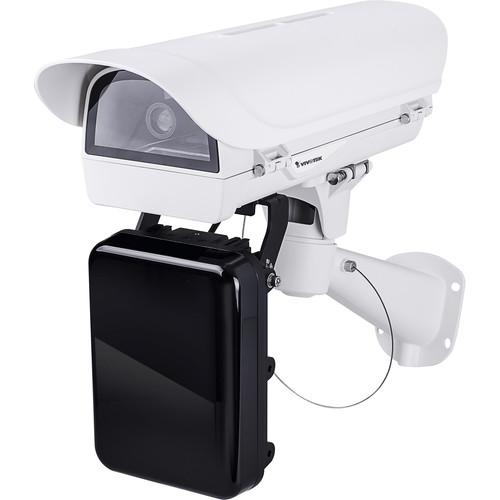

User Manual for Vivotek License Plate Camera and Housing with Housing & IR Emitter Kit

• Product category: Wired IP Cameras Vivotek
• Brand: Vivotek
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Vivotek Wired IP Cameras

Product description

• IP816A-LPC 2MP Network License Plate Camera with 12-40mm Lens The IP816A-LPC 2MP Network License Plate Camera from VIVOTEK is a surveillance camera designed for license plate (LPC) capture with a headlight filter design and specialized firmware for traffic monitoring. Featuring dedicated LPC firmware and mutually compatible lens options, the IP816A-LPC camera is designed for street-based applications. With external IR LEDs, this camera delivers images in varied lighting conditions.Equipped with a P-iris lens HD sensor enabling viewing resolution of 1920 x 1080 at a smooth 30 fps, the IP816A-LPC Camera is capable of capturing high-quality and high-resolution video in many conditions.The RBF (Remote Back Focus) System adjusts the focus of the camera, allowing installers to adjust focus in complicated or sensitive installation environments. Value-added features like EIS and Snapshot Focus allow installers to adjust camera positions and focus.
  • 2MP CMOS sensor
  • 30 fps @ 1920 x 1080
  • 60 fps @ 1920 x 1080 (one-stream mode only)
  • P-iris lens
  • Headlight filter to block visible light
  • 3D Noise Reduction for low-light conditions
  • WDR Pro (100 dB) to provide extreme visibility in high light contrast scenes
  • SNV (Supreme Night Visibility)
  • RBF system to assist for precise focus adjustment
  • EIS (Electronic Image Stabilization) to control image stability
  • Two-way audio
  • Snapshot Focus
  • Video rotation for corridor view
  • Lens profile for lens selection
  • Snapshot Focus

• Anti-Icing Outdoor Vandal-Resistant Camera Housing with Sunshield for IP816A-LPC (24 VAC)

• Limited 3-Year Warranty

Also Includes

• CM48I8-2040 IR Illuminator
• AM-21E Wall Mount Bracket

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• IP816A-LPC 2MP Network License Plate Camera with 12-40mm Lens

  CPU	Multimedia SoC (System-on-Chip)
  Flash	256 MB
  RAM	384 MB

  Image Sensor	1/1.9" Progressive CMOS
  Maximum Resolution	1920 x 1080 (2 MP)
  Lens Type	Varifocal
  Focal Length	12 to 40mm
  Aperture	f/2.36 to f/2.44
  Auto Iris	P-iris (DC-iris reserved)
  Field of View	10.2 to 30° (Horizontal) 8 to 22° (Vertical) 12 to 38° (Diagonal)
  Shutter	1/800 to 1/10,000 sec. 1/5 to 1/10,000 sec. (maximum)
  WDR Technology	WDR Pro
  Day/Night	Removable IR cut filter for day & night function
  Minimum Illumination	Illumination Threshold: 300 lux @ IR On 600 lux @ IR Off
  PTZ Functionalities	ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
  Onboard Storage	SD/SDHC/SDXC card slot

  Compression	H.264 & MJPEG
  Maximum Frame Rate	30 fps @ 1920 x 1080 60 fps @ 1920 x 1080 (In one-stream mode only)
  Maximum Streams	3 simultaneous streams
  S/N Ratio	50.8 dB
  Dynamic Range	Up to 100 dB
  Video Streaming	Adjustable resolution, quality and bitrate
  Image Settings	Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, Smart Stream, 3DNR, EIS, video rotation, snapshot focus

  Audio Capability	Two-way Audio (full duplex)
  Compression	AAC, G.711, G.726
  Interface	External microphone input Audio output

  Users	Live viewing for up to 10 clients
  Protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
  Interface	10 Base-T/100 BaseTX Ethernet (RJ45)
  ONVIF	Supported

  Video Motion Detection	Triple-window video motion detection

  Alarm Triggers	Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
  Alarm Events	Event notification using HTTP, SMTP, FTP, and NAS server SD Card File upload via HTTP, SMTP, FTP, NAS server, and SD card

  OS Compatibility	Microsoft Windows 8/7/Vista/XP/2000
  Web Browser	Mozilla Firefox 7 to 10 (streaming only) Internet Explorer 7/8/9/10/11
  Other Players	VLC: 1.1.11 or above QuickTime: 7 or above

  Smart Focus System	RBF (Remote Back Focus)
  Connectors	RJ45 for Network/PoE connection Audio input/output BNC Video output 24 VAC power input 12 VDC power input 3 x Digital input 1 x Digital output RS-485
  LED Indicator	System power and status indicator
  Power Input	12 VDC / 24 VAC IEEE 802.3af PoE
  Power Consumption	Maximum 9.2 W (12 VDC) Maximum 15.4 W (24 VAC) Maximum 12.2 W (PoE)
  Agency & Safety Certifications	CE, LVD, FCC Class B, VCCI, C-Tick, UL
  Operating Temperature	Starting Temperature: 32 to 122°F (0 to 60°C) Working Temperature: 14 to 122°F (-10 to 60°C)
  Dimensions	9.1 x 2.7 x 2.5" (23 x 7.0 x 6.4 cm)
  Weight	22.3 oz (632 g)

  Box Dimensions (LxWxH)	10.5 x 7.0 x 3.8"

• Anti-Icing Outdoor Vandal-Resistant Camera Housing with Sunshield for IP816A-LPC (24 VAC)

  Product Type	Camera housing
  Built-In Devices	Blower, heater, power supply
  Package Content	Screws
  Voltage Required	24 V
  Indoor / Outdoor	Outdoor
  Product Material	Aluminum
  Width	6.7 in
  Depth	19.8 in
  Height	6.2 in

  Mounting Kit	Included
  Features	IP68 protection, IK10 impact rating

  Min Operating Temperature
