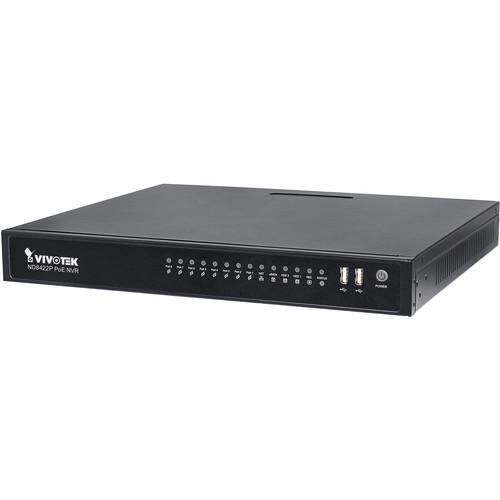

User Manual for Vivotek ND8422P 16-Channel Embedded Plug-and-Play NVR Click to enlarge the picture
Contents of the user manual for the Vivotek ND8422P 16-Channel Embedded Plug-and-Play NVR
- Product category: Network Video Recorders (NVRs) Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Network Video Recorders (NVRs)
|
User manual for the Vivotek ND8422P 16-Channel Embedded Plug-and-Play NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The 2TB ND8422P 16-Channel Embedded Plug-and-Play NVR from Vivotek is a Linux-embedded 16-channel standalone NVR with 8 802.3af-compliant PoE ports, allowing connection with PoE cameras for a maximum 120W power supply. It also features one button setup with its plug-and-play and auto-setup functionality, making this unit simple to install and suitable for many small-scale video surveillance applications.
Supporting HDMI and VGA local video output, users can control the interface via mouse and keyboard, eliminating the need for a separate PC to search or play back video from the NVR. The NVR supports software fisheye camera dewarping. It features the VAST CMS to control attached cameras. For remote and mobile access, Vivotek provides EZConnet and iViewer apps for iOS and Android handheld devices. - Plug-and-play one button auto setup
- Up to 5MP camera LiveView and play back
- EZConnect by scanning QR code for 24/7 mobile viewing
- 8x 802.3af-compliant PoE ports
- Camera configuration and VAST CMS integrated
- Live and playback fisheye dewarp
- e-SATA for extension storage
In the Box Vivotek ND8422P 16-Channel Embedded Plug-and-Play NVR (2TB) Power Adapter Power Cord 16 x H.D.D. Screws 4 x H.D.D. Brackets USB Mouse 2 x SATA Cables Limited 2-Year Warranty Brochure PDF 501.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek ND8422P 16-Channel Embedded Plug-and-Play NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek ND8422P Specs | | | OS | Embedded Linux | | CPU | ARM processor | | Flash | 256 MB | | RAM | 2 GB | | Watchdog Function | Hardware and software | | Power | Restoration: System restarts automatically after power recovery | | | | HDD | Device: 2 x internal
Maximum Capacity: 2 x 8 TB | | Storage Capacity | 2 TB | | Disk Management | Create, format, and remove disk
HDD S.M.A.R.T | | | | Video Output | 1 x HDMI, 1 x VGA | | Resolution | 1920 x 1080, 1280 x 720 | | Graphics | Decoder: Hardware decoding | | Recording Capacity | H.264:
2560 x 1920 @ 30 fps (1-channel)
1920 x 1080 @ 120 fps (4-channel)
1280 x 720 @ 240 fps (8-channel)
720 x 480 @ 480 fps (16-channel) | | Camera Position | Camera: Change position on the Live View screens | | | | USB Interface | Front: 2 (USB 2.0)
Back: 1 (USB 2.0) | | Alarm Input | 8 | | Alarm Output | 4 | | Audio | 3.5 mm phone jack audio output
3.5 mm phone jack audio input (reserved) | | External HDD | 1 x eSATA Port | | RS-232 | 1 port (reserved) | | RS-485 | 1 port (reserved) | | | | Network Interface | 1 x 10/100/1000 Mb/sec Ethernet (RJ45) Recommended to use standard Cat5E & Cat6 cables which are compliant with the 3P/ETL standard. | | PoE | 8 x 802.3af-compliant PoE Ports (total maximum 80 W) | | Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter | | | | Power Input | 56 VDC, 2.5 A | | Power Consumption | Maximum 120 W | | | | LED Indicator | Power, Status, Record, HDD1, HDD2, eSATA, Ethernet, Port 1 to 8 | | | | Operating System | Microsoft Windows OS: XP/Vista/7/8/2008/2012 | | CPU | Intel Celeron or above | | Memory | 2 GB or above | | Ethernet | 10/100 Mb/sec | | Display Resolution | 1024 x 768p or above | | Web Browser | Internet Explorer 10 (32-bit) or above | | Software | AP: Installation Wizard 2, ST7501, VAST | | Application | Mobile/Tablet: EZConnect (iOS/Android), iViewer (iOS/Android) | | | | Certifications | Safety: CE, LVD, FCC, VCCI, C-Tick | | | | Form Factor | Desktop | | Button | Power (front) / reset (back) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 0 to 95% | | Dimensions | 14.2 x 12.2 x 1.7" (36 x 31.1 x 4.4 cm) | | Weight | 5.9 lb (2.7 kg) without HDD | | | | Maximum Channel Output | 16 | | Record | Throughput (MB): 96 Mb/sec | | Network Throughput | 48 Mb/sec | | Audio Format | G.711, G.726 | | Video Format | MJPEG, H.264 | | Video Resolution | VGA, 1MP, 2MP, 3MP & 5MP Camera | | Recording Time | Pre-Record: 5 (maximum 10)
Post-Record: 20 (maximum 300) | | Streaming | Single record | | Recording Mode | Continuous, Schedule, Manual, Event, Activity Adaptive Streaming | | Setting | Recording: Recycle (Unit: Day) | | Recording Path | Local Path | | Recording Video Format | 3GP | | | | Stream Application | Auto Adaptive Stream | | LiveView Display | 16-Channel Multi Layout Display: 1 x 1, 1 x 3 (corridor view), 2 x 2, 3 x 3, 4 x 4, 1 + 5, 1 + 3, 1 + 12, 1 + 1 + 3 (1P), 1 + 3 + 3 (1P) | | Monitor Enhancement | OSD Display (NVR), OSD Display (Camera), Camera Information, Remote I/O Control, Event Notification, Aspect Ratio Fisheye Dewarp: 1O,1P,1R,1O3R | | PTZ Control | Panel Control | | PTZ Operation | Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control | | | | Playback Display | 1-channel
Multi Layout Display: 1x1 | | Playback Control | Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard) | | Video Search | By calendar, date/time, and alarm | | Thumbnail Explorer | Listing the thumbnail of recorded video (maximum 2-channel) | | Monitor Enhancement | OSD Display (Camera), Event Notification, Aspect Ratio, PiP Control, Fisheye Dewarp (1O,1P,1R,1O3R) | | Snapshot | JPEG | | Video Clip Export | EXE | | | | Stream Application | Stream selection | | Audio Capability | One way | | LiveView Display | 16-Channel Multi Layout Display: 1 x 1, 2 x 2, 3 x 3, 4 x 4, 1 + 3, 1 +5 , 1 + 12 | | Monitor Enhancement | OSD Display (NVR), Drag & Drop, Image Freeze, Audio Control, Remote I/O Control, Event Notification, Bookmark, Fisheye Dewarp (1O, 1P, 1R) | | PTZ Control | Panel control | | PTZ Operation | Direction Control, Home, Zoom, Focus, Iris, Preset, Patrol (Group), PiP Control | | Snapshot | JPEG | | | | Playback Display | 4-Channel Multi Layout Display: 1 x 1, 2 x 2, 1 + 3 | | Playback Control | Regular (Play, Pause, Stop), Next Frame, Speed Control, Calendar, Timeline, Timeline Scale, Bookmark | | Monitor Enhancement | OSD Display (NVR), Drag & Drop, Audio Control, PiP Control, Fisheye Dewarp (1O, 1P, 1R) | | Snapshot | JPEG | | Video Clip Export | EXE | | | | Schedule | Type: Continuous, schedule, manual | | Event | Motion Detection, PIR Detection, Tampering Detection, Digital Input (Camera), Digital Output (Camera), Connection Abnormal, Storage Abnormal, Storage Full, Camera Network Loss, DI, DO | | Action Type | Record, Email (Text), Email (Snapshot), FTP, Buzzer, PTZ Control (Go to Preset), NVR DO, Camera DO | | Recording Time | Pre-Record: 5 (maximum 10), Post-Record: 20 (maximum 300) | | | | Manual Controls | USB dongle (FAT Format) | | | | User Management | User Account: 16
User Account Time Limit: 10 mins
User Level: Administrator / Regular User
User Feature Definition: By Camera | | Log | System, recording, user, error | | Date & Time | Time zone, manual, automatic sync NTP, daylight saving time | | Firmware | Manual update | | Restore Default | Supported | | Backup / Restore | Configuration: Supported | | Language | Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Simplified Chinese, Traditional Chinese | | | | Camera | Manual, search | | Video Setting | Compression, resolution, FPS, video quality | | Image Settings | Image display, image adjustment | | PTZ Control | Panel control | | PTZ Operation | Direction Control, Home, Preset, Patrol (Group) | | Motion Detection | Supported |
