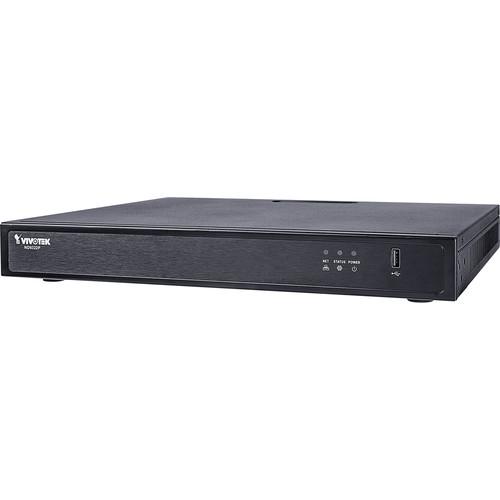

User Manual for Vivotek ND9322P 8-Channel 4K UHD NVR Click to enlarge the picture
Contents of the user manual for the Vivotek ND9322P 8-Channel 4K UHD NVR
- Product category: Network Video Recorders (NVRs) Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Network Video Recorders (NVRs)
|
User manual for the Vivotek ND9322P 8-Channel 4K UHD NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description Record from and manage up to eight cameras with the ND9322P 8-Channel 4K UHD NVR from Vivotek at resolutions up to 3840 x 2160. This NVR has an 8TB storage capacity. H.265 and H.264 compressions keep file sizes manageable while maintaining the best quality possible. Two-way audio communication is supported thanks to an audio input and output. This NVR complies with ONVIF profile S for interoperability with ONVIF cameras. - Smart Stream II technology optimizes bandwidth efficiency
- Recording modes include continuous, schedule, manual, event, and activity adaptive streaming
- Support for simultaneous live view and playback modes for one fisheye network camera
- Supports RAID 0, 1 to prevent recording data loss
- Supports VCA Counting Solution
- 4 x alarm inputs and 1 x alarm output
- 1 x USB 2.0 and 1 x USB 3.0
- Compatible with Internet Explorer 10 (32-bit) or higher for Windows, Chrome 68.0.3 or higher for Windows and macOS, Firefox 61.02 or higher for Windows and macOS, iViewer for Android and iOS, VIVOCloud, Shepherd, and VAST 2
- Trend Micro IoT Security within standard warranty period
- CE, FCC, VCCI, C-Tick, UL, CB, and BSMI certified
In the Box Vivotek ND9322P 8-Channel 4K UHD NVR Power Cord Mouse Screws Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek ND9322P 8-Channel 4K UHD NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek ND9322P Specs | | | Operating System | Embedded Linux | | CPU | ARM Processor | | Memory | Flash: 256 GB
RAM: 1 GB | | WatchDog | Hardware + Software | | Power Restoration | System Restart Automatically after Power Recovery | | | | Live View | 8 Channels
Multi-Layout Display: 1 x 1, 3V, 2 x 2, 3 x 3, 1P + 3, 1M + 5, 1P + 6 | | Video Output | 1 x HDMI
1 x VGA | | Display Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720 | | Camera Position | Change the Viewcell Position on the Live View Screens | | Stream Application | Constant/Auto Adaptive Stream | | Monitor Enhancement | OSD Display (NVR), OSD Display (Camera), Camera Information, Remote I/O Control, Event Notification, Aspect Ratio | | Fisheye Dewarping | 1O, 1P, 1R, 1O3R, 1O8R | | PTZ Operation | Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control | | | | Video Format | H.265, H.264, MJPEG | | Graphics Decoder | Hardware Decoding | | Decoding Resolution | Up to 3840 x 2160 | | Decoding Capability | 3840 x 2160 at 30 fps (1 Channel)
1920 x 1080 at 120 fps (4 Channels)
1280 x 720 at 240 fps (8 Channels) | | | | Audio Format | G.711, G.726 | | Audio Input/Output | 1 x 3.5mm Jack Output
1 x 3.5mm Jack Input | | | | Recording Time | Pre-Record: 5 Seconds (Maximum 10 Seconds)
Post-Record: 20 Seconds (Maximum 300 Seconds) | | Recording Stream | Single | | Recording Throughput | 64 Mb/s | | Recording Modes | Continuous, Schedule, Manual, Event, Activity Adaptive Streaming | | Recording Setting | Recycle (Unit: Day) | | Watermark | Supported | | | | HDD | 2 x 3.5" HDD (Internal) | | HDD Capacity | 8 TB | | RAID | RAID 0, 1 | | Disk Management | Create, Format, Remove Disk, HDD S.M.A.R.T | | Local Backup | USB Dongle (FAT Format) | | Schedule Backup | FTP | | | | Playback Display | 4 Channels
Multi-Layout Display: 1 x 1, 2 x 2, 1P + 3, 1V + 3 | | Playback Control | Regular (Play, Pause, Stop), Rewind, Next/Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard) | | Video Search | By Calendar, Date/Time, Alarm | | Thumbnail Explorer | Thumbnail Explorer (Storyboard): Listing the Thumbnail of Recorded Video (Maximum 2 Channels) | | Snapshot | JPEG | | Video Clip Export | EXE | | | | Ethernet | 1 x 1000M RJ45 | | Throughput | Video Throughput for Remote Client: 24 Mb/s | | PoE | 8 x 802.3at/af Compliant PoE Ports
Maximum 120 W | | Network Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter | | | | USB | 1 x USB 2.0 (Front)
1 x USB 3.0 (Rear) | | Alarm Inputs | 4 | | Alarm Output | 1 | | Audio Input/Output | 1 x 3.5mm Jack Audio Output
1 x 3.5mm Jack Audio Input (Reserved) | | | | POS Integration | Supported (Request by Project) | | UPS Integration | Supported (Request by Project) | | Camera Integration | ONVIF Profile S | | Event | Camera: Motion Detection, PIR Detection, Tampering Detection, DI/DO, Disconnection
System: Storage Abnormal, Storage Full, DI/DO | | Event Action | Video Recording, Email with Snapshot, Buzzer, PTZ, FTP, DO (Camera, System), Full Screen, Send to CMS, VIVOCloud App Notification | | User Management | User Level: Administrator, Regular User | | Log | System, Recording, User, Error | | Date & Time | Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time | | Advanced Features | VCA Counting Solution | | Internet of Things (IoT) Compatible | Trend Micro IoT Security | | Software AP | Shepherd, VAST 2 | | Mobile App | iViewer for Android and iOS | | Supported Web Browsers | Internet Explorer 10 (32-Bit) or Higher for Windows
Chrome 68.0.3 or Higher for Windows and macOS
Firefox 61.02 or Higher for Windows and macOS | | Cloud Service | VIVOCloud | | Power Input | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Maximum 170 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 0 to 95% | | Safety Certification | CE, FCC, VCCI, C-Tick, UL, CB, BSMI | | Dimensions (W x D x H) | 14.2 x 12.2 x 1.7" / 360 x 311 x 44 mm | | Weight | Without HDD: 7 lb / 3.16 kg |
