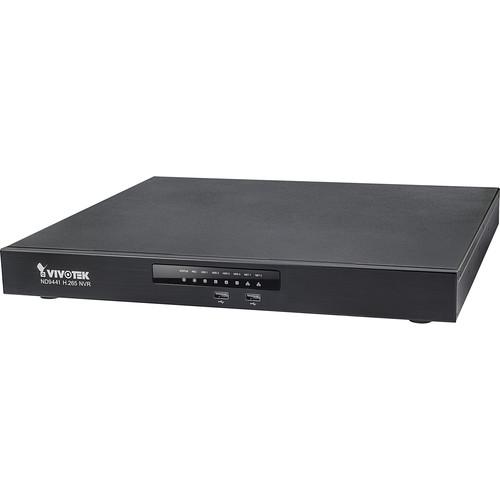

Product description The Linux-based ND9441 16-Channel 12MP Embedded NVR from Vivotek enables live viewing, recording, and playback of up to 16 cameras. It is compatible with up to 12MP cameras and it can record at frame rates of up to 30 fps and compressed video using H.265, H.264, and MJPEG codecs to conserve network bandwidth and storage space. The NVR contains four drive bays, each with an 8TB capacity, for a total of up to 32TB of storage (available separately). The NVR also supports snapshots in JPEG format and can export video clips as EXE files. Additionally, a 1/8" audio input and output provide two-way audio, with G.711 and G.726 audio formatting. HDMI and VGA outputs allow for on-site monitoring via an external monitor (available separately). - H.265, H.264, and MJPEG compression technology
- Auto-Wizard one-button setup
- Auto Adaptive Stream automatically adjusts the second stream of a camera to the selected display layout
- EZConnect by scanning the QR code for 24/7 mobile viewing
- Integrated Vivotek camera configuration and VAST CMS
- Fisheye dewarp for both live viewing and playback
- Embedded Linux operating system
- Storyboard event search and Camera Integration Level (CIL) 5
- Supports up to 12MP camera live view and playback
- Dual LAN network ports with failover function
- ONVIF Version 2.2 compliant
In the Box Vivotek ND9441 16-Channel 12MP Embedded NVR Power Adapter Power Cord USB Mouse 4 x SATA Cables Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek ND9441 16-Channel 12MP Embedded NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek ND9441 Specs | | | Operating System | Embedded Linux | | CPU | ARM processor | | Flash | 256 MB | | RAM | 2 GB | | Power Restoration | Automatic system restart after power recovery | | | | HDD Trays | 4 x internal | | HDD Capacity | 4 x 8 TB (available separately) | | Disk Management | Create, format, and remove disk
HDD S.M.A.R.T | | | | Video Output | 1 x HDMI, 1 x VGA | | Resolution | 1920 x 1080, 1280 x 720 | | Graphics Decoder | Hardware decoding | | Frame Rates | 2560 x 1920 @ 30 fps (1 channel)
1920 x 1080 @ 120 fps (4 channel)
1280 x 720 @ 240 fps (8 channel)
1280 x 720 @ 480 fps (16 channel) | | Camera Position | Change the view cell position on the Live View screens | | | | Throughput | Recording: 192 Mb/s
Network: 96 Mb/s | | Video Format | MJPEG, H.264, H.265 | | Audio Format | G.711, G.726 | | Video Resolution | Supports VGA, 1 MP, 2 MP, 3 MP, 5 MP, 12 MP cameras | | Array Type | RAID 0, 1, 5 | | Recording Time | Pre-Record: 5 seconds (max: 10 seconds)
Post-Record: 20 seconds (max: 300 seconds) | | Streaming | Single stream | | Recording Modes | Continuous, Schedule, Manual, Event, Activity Adaptive Streaming | | Settings | Recycle (unit: Day) | | Recording Path | Local | | Recording Video Format | 3 GP | | | | Stream Application | Auto adaptive stream | | Display | 16 Channels
Multi Layout Display: 1 x 1, 1 x 3 (Corridor View), 2 x 2, 3 x 3, 4 x 4, 1 + 5, 1 + 3, 1 + 12, 1 + 1 + 3 (1P), 1 + 3 + 3 (1P) | | Monitor Enhancement | OSD display (NVR), OSD display (camera), camera information, remote I/O control, event notification, aspect ratio, fisheye dewarp
(1O, 1P, 1R, 1O3R, 1O8R) | | PTZ Control | Panel control | | PTZ Operation | Direction control, home, iris, preset, patrol (group), PiP control | | | | Display | 4 Channels
Multi Layout Display: 2 x 2 | | Playback Control | Regular (play, pause, stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (storyboard) | | Video Search | By calendar, date/time, alarm | | Thumbnail Explorer | Listing the thumbnail of recorded video (maximum 2 channels) | | Monitor Enhancement | OSD Display (camera), event notification, aspect ratio, PiP control, fisheye dewarp (1O, 1P, 1R, 1O3R, 1O8R) | | Snapshot | JPEG | | Video Clip Export | EXE | | | | Stream Application | Stream selection | | Audio | One-way | | Display | 16 Channels
Multi Layout Display: 1 x 1, 2 x 2, 3 x 3, 4 x 4, 1 + 3, 1 + 5, 1 + 12 | | Monitor Enhancement | OSD display (NVR), drag & drop, image freeze, audio control, remote I/O control, event notification, bookmark, fisheye dewarp (1O, 1P, 1R) | | PTZ Control | Panel control | | PTZ Operation | Direction control, home, zoom, focus, iris, preset, patrol (group), PiP control | | Snapshot | JPEG | | | | Display | 4 Channels
Multi Layout Display: 1 x 1, 2 x 2, 1 + 3 | | Playback Control | Regular (play, pause, stop), Next Frame, Speed Control, Calendar, Timeline, Timeline Scale, Bookmark | | Monitor Enhancement | OSD display (NVR), drag & drop, audio control, PiP control, fisheye dewarp (1O, 1P, 1R) | | Snapshot | JPEG | | Video Clip Export | EXE | | | | Schedule | Continuous, Scheduled, Manual | | Event | Motion detection, PIR detection, tampering detection, digital input (camera), digital output (camera), connection abnormal, storage abnormal, storage full, camera network loss, DI, DO | | Action Type | Record, email (text), email (snapshot), FTP, buzzer, ePTZ control (go to preset), NVR DO, camera (DO) | | Recording Time | Pre-Record: 5 seconds (maximum 10 seconds)
Post-Record: 20 seconds (maximum 300 seconds) | | | | Manual | USB Dongle (FAT Format) | | | | Insert Camera | Manual, search | | Video Settings | Compression, resolution, fps, video quality | | Image Settings | Image display, image adjustment | | PTZ Control | Panel control | | PTZ Operation | Direction control, home, preset, patrol (group) | | Motion Detection | Supported | | ONVIF | Core Spec: Version 2.2 or above (by project)
Stream: Video (H.264, MPEG4, MJPEG)
Recording: Continuous, schedule, manual
Discover: Through "Insert Camera & Batch Insert" | | | | Users | User Account: 16
User Account Time Limit: 10 minutes
User Level: Administrator / Regular User
User Feature Definition: By camera | | Log | System, Recording, User, Error | | Date & Time | Time Zone, Manual, Automatic, Sync NTP, Daylight Saving Time | | Firmware | Manual update | | Restore Default | Supported | | Backup / Restore | Supported | | Languages | Czech, English, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Simplified Chinese, Traditional Chinese | | | | UPS | Compatibility: APC model | | | | USB | Front: 2 x USB 2.0
Rear: 1 x USB 3.0 | | Alarm | Inputs: 8
Outputs: 4 | | Audio | 1 x 1/8" (3.5 mm) phone jack audio output
1 x 1/8" (3.5 mm) phone jack audio input (reserved) | | RS485 | 1 x port (reserved) | | | | Interface | 2 x 10/100/1000 Mb/s Ethernet (RJ45) | | Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter | | | | Operating System | Microsoft Windows OS: 2008, 2012, XP, Vista, 7, 8, | | CPU | Intel Celeron or above | | Memory | 2 GB or above | | Ethernet | 10/100 Mb/s | | Display Resolution | 1024 x 768 pixels or above | | Web Browser | Internet Explorer 10 (32-bit) or above | | Software AP | Installation Wizard 2, ST7501, VAST | | Mobile OS Support | EZConnect (iOS/Android), iViewer (iOS/Android) | | | | Input | 56 VDC, 2.32 A | | Maximum Power Consumption | 120 W | | | | LED Indicators | Status, Record, HDD1, HDD2, HDD3, HDD4, Net1, Net2 | | Buttons | Power (front), reset (rear) | | Form Factor | Desktop | | Approvals and Compliance | CE, LVD, FCC, VCCI, UL | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 0 to 95% | | Dimensions | 17 x 16 x 1.8" / 43 x 40 x 4.5 cm | | Weight | 8.5 lb / 3.9 kg without HDD | | | | Package Weight | 14.5 lb | | Box Dimensions (LxWxH) | 22.0 x 21.4 x 6.75" |
