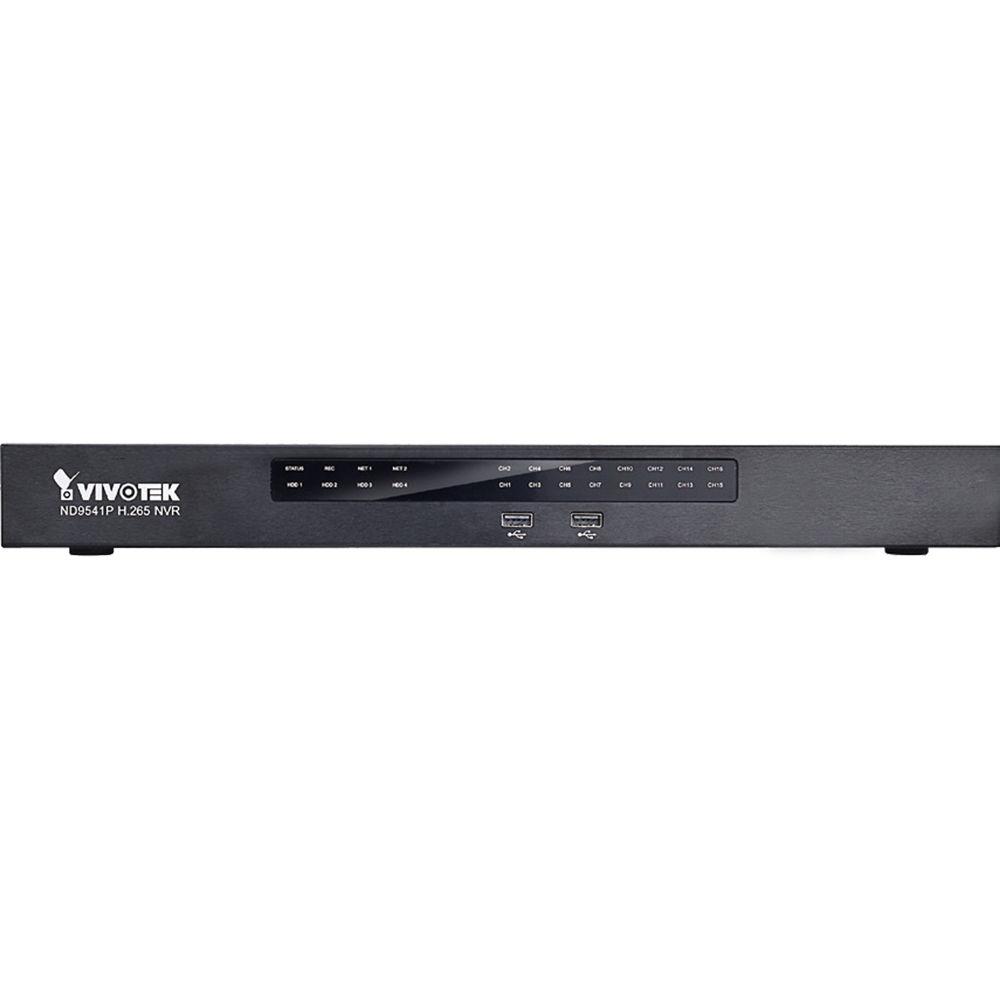

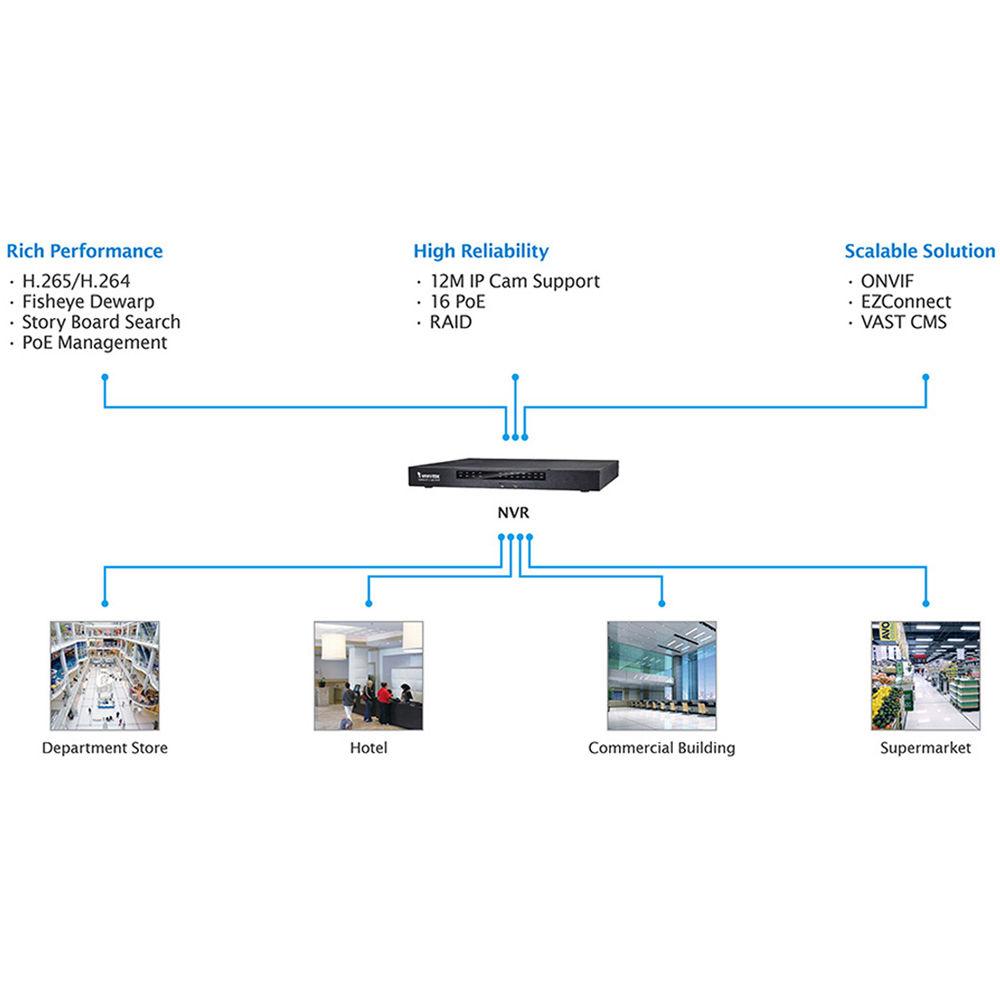

Product description Record video from up to 32 cameras with the ND9541P 32-Channel 12MP NVR with 16 PoE Ports from Vivotek. This NVR is capable of recording high-quality video from cameras with up to 12MP resolution and can support up to 32TB of storage (available separately). This embedded, plug-and-play NVR features 16 PoE-injected ports to supply power and a data connection to connected cameras. It supports fisheye dewarping and features HDMI and VGA video outputs for onsite monitoring when connected to an external display (available separately). Additionally, users can view playback using the free EZConnect and iViewer apps for iOS and Android devices. - 32-channel NVR supports up to 12MP cameras
- Up to 32TB of storage via four HDD slots

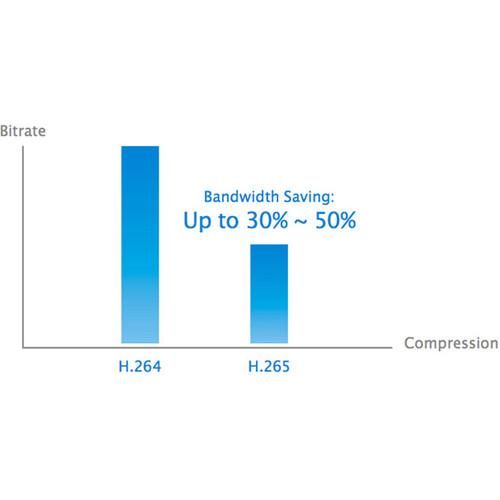

- H.265 and H.265 compression formats
- One-button, plug-and-play auto setup

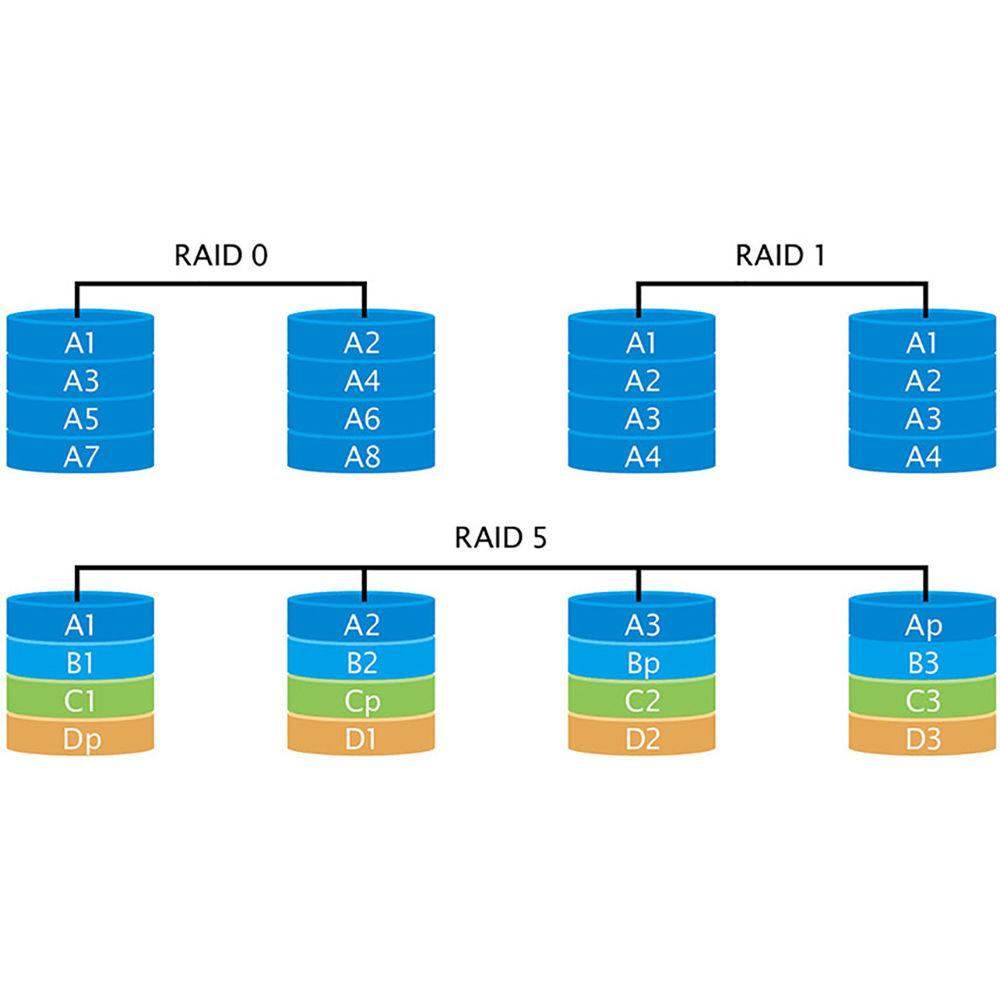

- Supports a RAID 0, 1, or 5 storage configurations

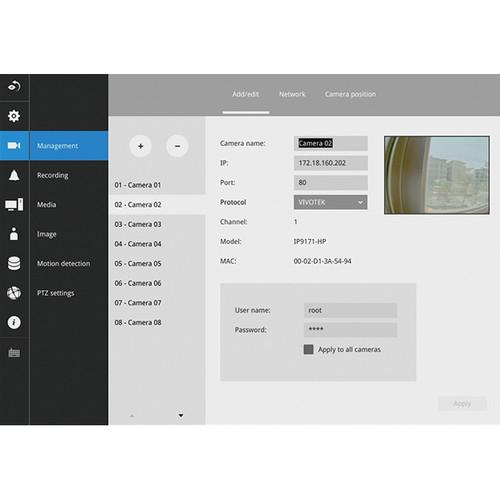

- Integrated Vivotek camera configuration and VAST CMS support
- Fisheye dewarping function during live viewing and playback
- Story Board event search function

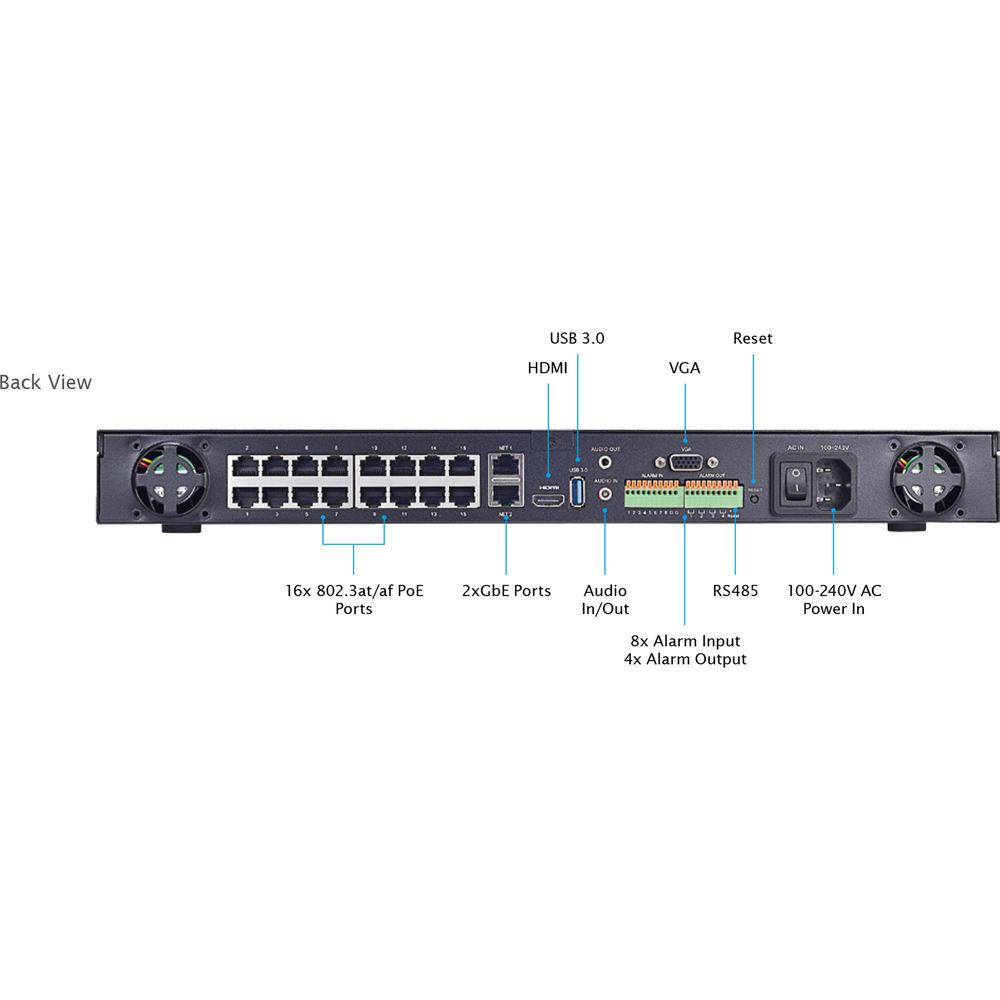

- 16 PoE-injected ports with built-in PoE management functions

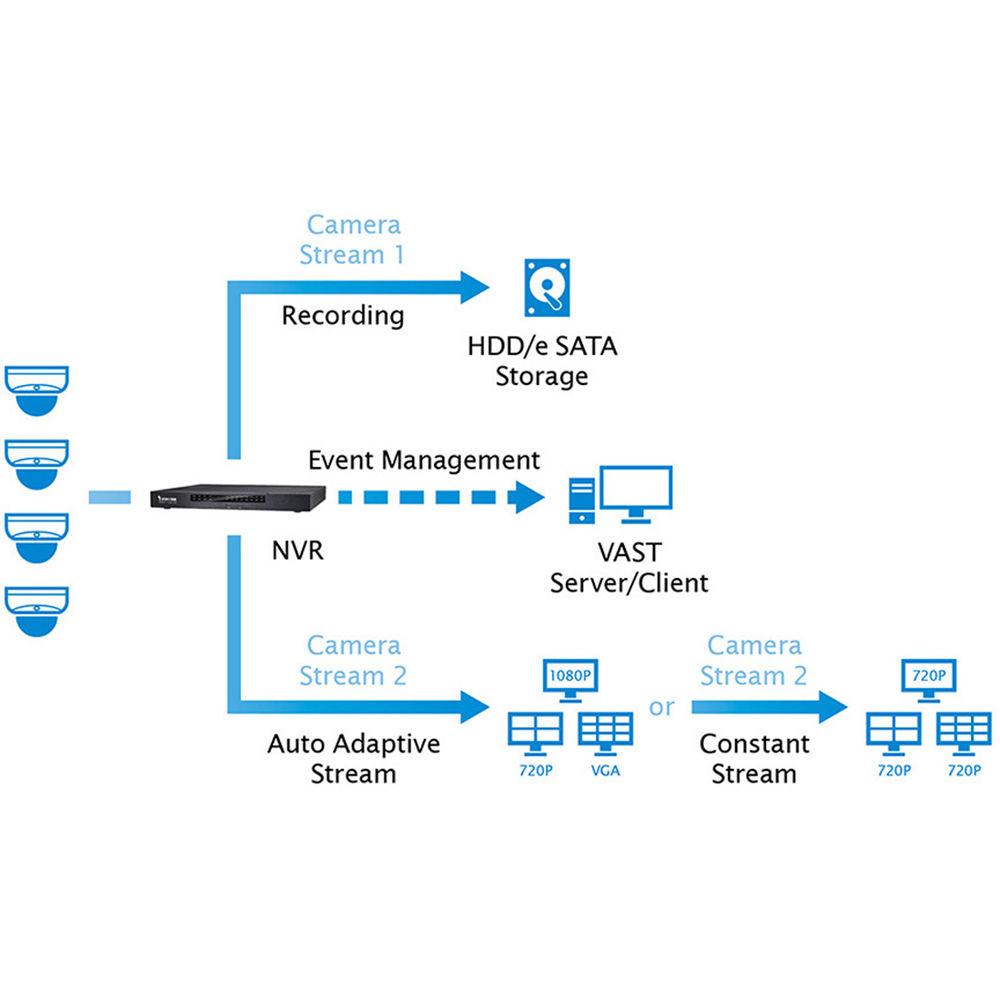

- Auto and constant adaptive stream options to help reduce network bandwidth
- EZConnect and iViewer app for iOS and Android for push notifications and direct video playback
- ONVIF-compliant for a wide range of compatibility
In the Box Vivotek ND9541P 32-Channel 12MP NVR with 16 PoE Ports (No HDD) Power Cord USB Mouse HDD Mounting Hardware 4 x SATA Cables Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek ND9541P 32-Channel 12MP NVR with 16 PoE Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek ND9541P Specs | | | OS | Embedded Linux | | CPU | ARM processor | | Flash | 256 MB | | RAM | 4 GB | | Watchdog Function | Hardware and software | | Power Restoration | System restarts automatically after power recovery | | | | HDD Capacity | 4 x internal HDDs up to 8 TB each | | Disk Management | Create, format, and remove disk
HDD S.M.A.R.T
RAID 0, 1, 5 | | | | Video Output | HDMI and VGA | | Resolution | 1920 x 1080, 1280 x 720 | | Graphics Decoder | Hardware decoding | | Decoding | 2560 x 1920 at 30 fps (1 channel)
1920 x 1080 at 120 fps (4 channels)
1280 x 720 at 240 fps (8 channels)
1280 x 720 at 480 fps (16 channels)

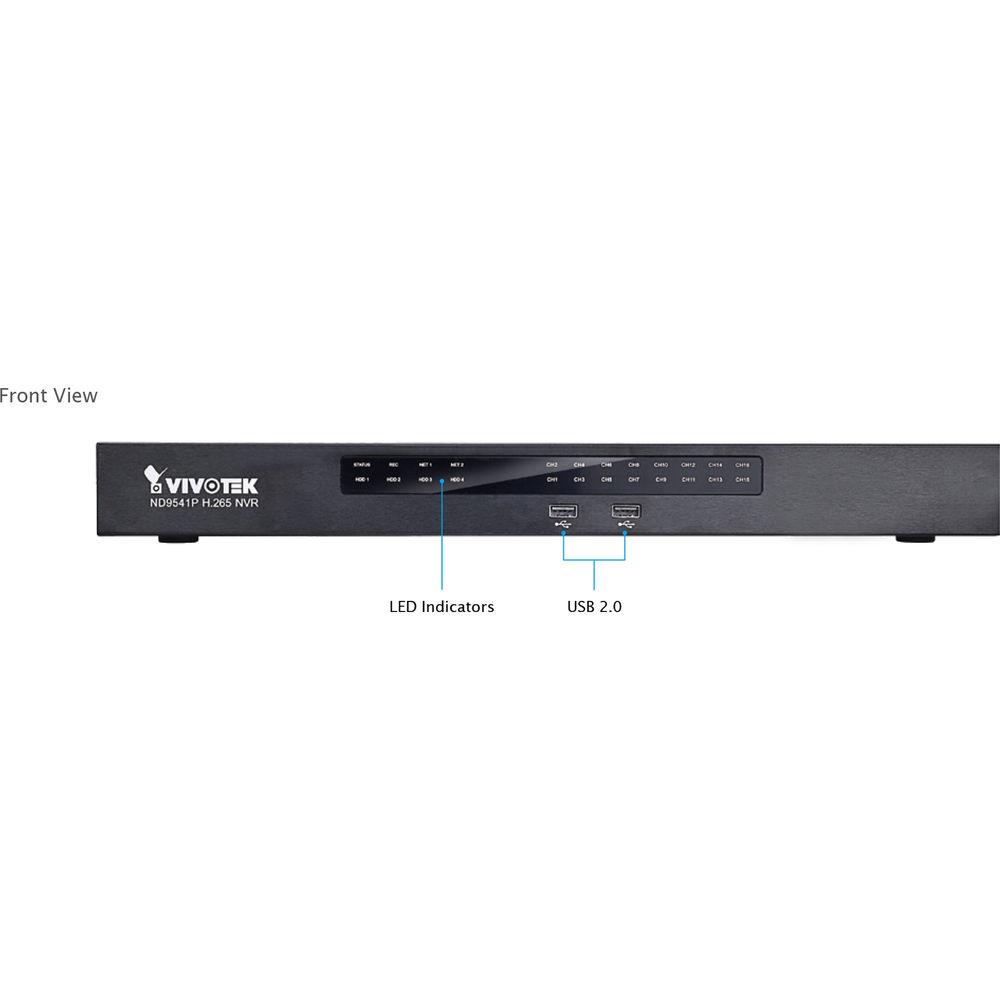

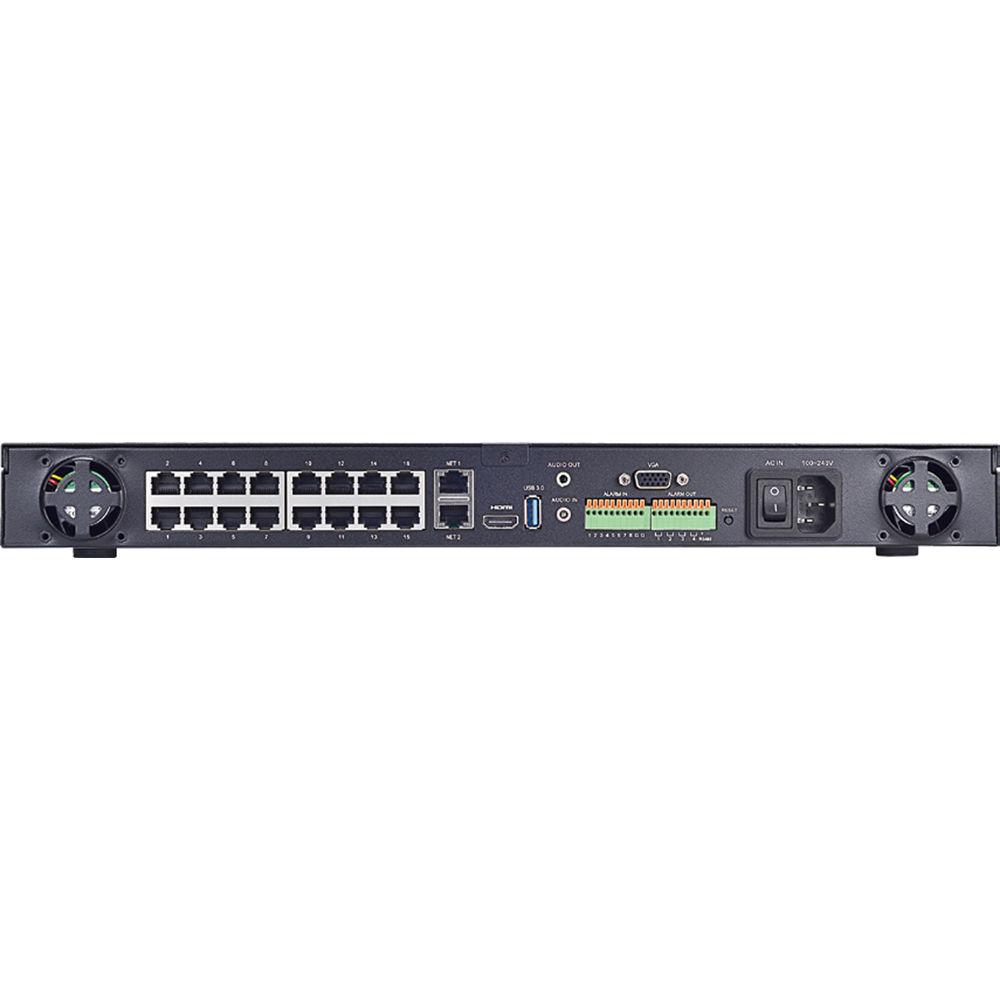

720 x 480 at 960 fps (32 channels) | | Camera Position | Change the viewcell position on live view screens | | | | USB Interface | Front: 2 x USB 2.0
Back: 1 x USB 3.0 | | Alarm Input | 8 | | Alarm Output | 4 | | Audio | 3.5 mm phone jack audio output
3.5 mm phone jack audio input (reserved) | | External HDD | 1 x USB 3.0 | | RS-485 | 1 port (reserved) | | | | Network Interface | 2 x RJ45 10/100/1000 Mbps Ethernet | | PoE | 16 x 802.3at/af PoE ports (total maximum 160 W) | | Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter | | | | Power Input | 100-240 VAC, 50/60 Hz | | Maximum Power Consumption | 260 W | | | | LED Indicator | Status, record, HDD1, HDD2, HDD3, HDD4, Net1, Net2, channel 1-32 | | | | Operating System | Microsoft Windows OS: XP, Vista, 7, 8, 2008, 2012 | | CPU | Intel Celeron or above | | Memory | 2 GB or above | | Ethernet | 10/100 Mbps | | Display Resolution | 1024 x 768 or above | | Web Browser | Internet Explorer 10 (32-bit) or above | | Software AP | Installation Wizard 2, Shepherd, VAST | | Mobile OS Support | EZConnect and iViewer for iOS and Android | | | | Certifications | CE, LVD, FCC, VCCI, C-Tick, UL | | | | Maximum Channel Output | 32 | | Record | Throughput (MB): 192 Mbps | | Network Throughput | 96 Mbps | | Audio Format | G.711, G.726 | | Video Format | MJPEG, H.264, H.265 | | Video Resolution | Up to 12 MP camera | | Recording Time | Pre-Record: 5 sec (maximum 10 sec)
Post-Record: 20 sec (maximum 300 sec) | | Streaming | Single | | Recording Mode | Continuous, schedule, manual, event, activity adaptive streaming | | Setting | Recycle (Unit: Day) | | Recording Path | Local Path | | Recording Video Format | 3GP | | | | Stream Application | Constant or auto adaptive stream | | LiveView Display | 16 channels
Multi Layout Display: 1 x 1, 2 x 2, 3 x 3, 1P + 3, 2P + 3, 1M + 5, 1P +6, 3V, 1M + 12, 4 x 4, 1M + 31 | | Monitor Enhancement | OSD display (NVR), OSD display (camera), camera information, remote I/O control, event notification, aspect ratio, fisheye dewarp (1O, 1P, 1R, 1O3R, 1O8R) | | PTZ Control | Panel control, joystick | | PTZ Operation | Direction control, home, iris, preset, patrol (group), PiP control | | | | Playback Display | 4 channels
Multi Layout Display: 2 x 2, 1V + 3, 1P + 3 | | Playback Control | Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard) | | Video Search | By calendar, date/time, alarm | | Thumbnail Explorer | Listing the thumbnail of recorded video (maximum 2 channels) | | Monitor Enhancement | OSD display (camera), event notification, aspect ratio, PiP control, fisheye dewarp (1O, 1P, 1R, 1O3R, 1O8R) | | Snapshot | JPEG | | Video Clip Export | EXE | | | | Stream Application | Stream selection | | Audio Capability | One way | | LiveView Display | 16-Channel Multi Layout Display: 1 x 1, 2 x 2, 3 x 3, 4 x 4, 1 + 3, 1 + 5, 1 + 12, 1M + 31 | | Monitor Enhancement | OSD (NVR), drag and drop, image freeze, audio control, remote I/O control, event notification, bookmark, fisheye dewarp (1O, 1P, 1R) | | PTZ Control | Panel control | | PTZ Operation | Direction control, home, zoom, focus, iris, preset, patrol (group), PiP control | | Snapshot | JPEG | | | | Playback Display | 4 channels
Multi Layout Display: 1 x 1, 2 x 2, 1V + 3 | | Playback Control | Regular (play, pause, stop), next frame, speed control, calendar, timeline, timeline scale, bookmark | | Monitor Enhancement | OSD (NVR), drag and drop, audio control, PiP control, fisheye dewarp (1O, 1P, 1R) | | Snapshot | JPEG | | Video Clip Export | EXE | | | | Schedule | Continuous, schedule, manual | | Event | Motion detection, PIR detection, tampering detection, digital input (camera), digital output (camera), connection abnormal, storage abnormal, storage full, camera network loss, DI, DO | | Action Type | Record, email (text, snapshot), FTP, buzzer, ePTZ control (go to preset), NVR DO, camera DO | | Recording Time | Pre-Record: 5 sec (maximum 10 sec), Post-Record: 20 sec (maximum 300 sec) | | | | Manual Controls | USB dongle (FAT format) | | | | User Management | User Account: 16
User Account Time Limit: 10 mins
User Level: Administrator and regular user
User Feature Definition: By camera | | Log | System, recording, user, error | | Date & Time | Time zone, manual, automatic sync NTP, daylight saving time | | Firmware | Manual update | | Restore Default | Supported | | Backup / Restore | Configuration: Supported | | Language | Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Simplified Chinese, Traditional Chinese, Polish | | | | Camera | Manual, search | | ONVIF | Supported | | Video Setting | Compression, resolution, FPS, video quality | | Image Settings | Image display, image adjustment | | PTZ Control | Panel control, joystick | | PTZ Operation | Direction control, home, preset, patrol (group) | | Motion Detection | Supported | | | | UPS | APC model compatible | | Joystick | Yes | | | | Form Factor | Desktop | | Button | Reset (back) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 0 to 95% | | Dimensions | 17 x 15.7 x 1.75" (430 x 400 x 44.5 mm) | | Weight | 9.9 lb (4.5 kg) without HDD | | | | Package Weight | 15.6 lb | | Box Dimensions (LxWxH) | 21.7 x 21.3 x 6.9" |
