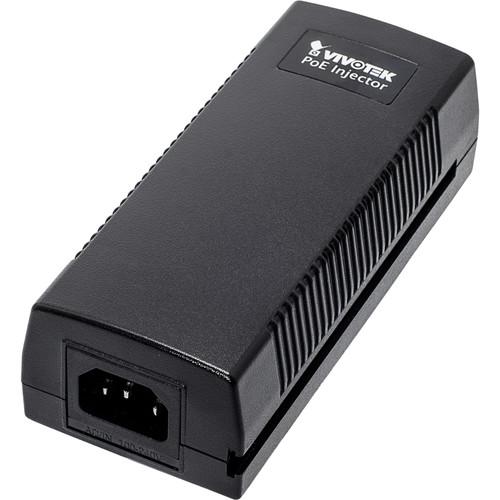

User Manual for Vivotek PoE Injector Click to enlarge the picture
Contents of the user manual for the Vivotek PoE Injector
- Product category: Power over Ethernet (PoE) Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Power over Ethernet (PoE)
|
User manual for the Vivotek PoE Injector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The PoE Injector from VIVOTEK can be used to power VIVOTEK network cameras over a single Ethernet connection. It features over current and short-circuit protection and supports IP cameras with H.264, H.265, MPEG-4, and MJPEG compression. This single port injector operates on 100 to 240 VAC input, provides 30W of output power, and supports 802.3at and 802.3af standards. In the Box Vivotek PoE Injector Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek PoE Injector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek AP-GIC-010A-030 Specs | Compatibility | Cameras: VIVOTEK network cameras
Video Resolution: Megapixel, D1, VGA
Video Compression: H.264, H.265, MPEG-4, MJPEG | | Ethernet | 1 x RJ45 | | Standards | IEEE 802.3 10Base-T (Ethernet)
IEEE 802.3u 100Base-TX (Fast Ethernet)
IEEE 802.3ab 1000Base-TX (Gigabit Ethernet)
IEEE 802.3af PoE
IEEE 802.3at PoE | | Transmission Media | 10Base-T: Cat 3, 4, 5 UTP/STP
100Base-TX: Cat 5, 5e UTP/STP
1000Base-TX: Cat 5e, 6, 7 UTP/STP | | Output Power | 30 W | | Power Pin Assignment | 1/2(+); 3/6(-) | | Detection | PoE PD auto detection | | LED Indicators | Power, PoE | | Power Input | 100-240 VAC, 50/60 Hz | | Power Consumption | 35 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Humidity (Non-Condensing) | 10 to 90% | | Dimensions | 5.7 x 2.5 x 1.7" (14.6 x 6.4 x 4.2 cm) | | Weight | 7.1 oz (0.2 g) | | | | Package Weight | 1.02 lb | | Box Dimensions (LxWxH) | 8.1 x 6.4 x 2.45" |
