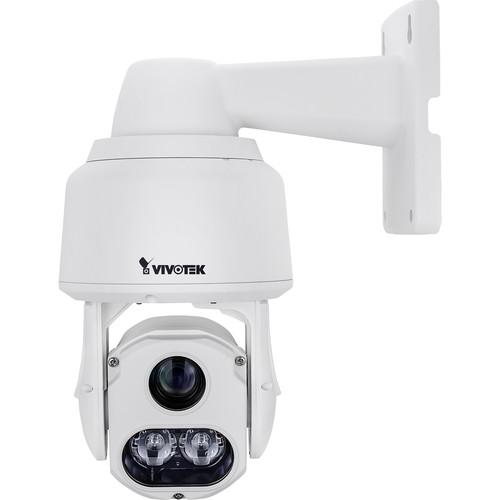

Product description The S Series 1080p Outdoor 20x PTZ Network Dome Camera from VIVOTEK is specifically designed to enhance low light surveillance in large coverage areas. Equipped with 492' IR illuminators and a 20x optical zoom lens it provides images in challenging low light situations. It leverages VIVOTEK's IR technology, VAIR (Vari-Angle IR), that provides smooth vari-angle adjustment of IR illuminators, allowing broad FOV and uniform IR intensity while avoiding hot spots traditionally associated with IR illumination. When combined with VIVOTEK's Smart Stream II technology, users can obtain bandwidth savings of up to 80% compared to traditional H.264. By combining 1080p full HD resolution with H.265, IR illuminators, VAIR, WDR, and 20x optical zoom, the SD9363-EHL can capture fine details 24 hours a day, 7 days a week. VIVOTEK further strengthened the camera's performance with an IP66- and NEMA 4X-rated housing to protect the camera against rain, dust, and corrosion. The SD9363-EHL features a removable IR cut filter, maintaining clear images even under low-light conditions. The camera comes equipped with audio detection functionality for recognizing changes in ambient noise. It also comes equipped with an SD/SDHC/SDXC card slot. -
- Real-time H.265, H.264, and MJPEG compression (triple codec)
- 1/3" CMOS sensor
- 20x zoom lens, 492' IR
- Supports 360° continuous panning and 220° tilting
- WDR Pro for unparalleled visibility in high contrast environments
- -58 to 131°F wide temperature range for extreme weather conditions
- Auto tracking for moving objects
- 3D privacy masks for additional protection
- Supports defogging and electronic image stabilization
- IP66-rated weatherproof, IK10-rated vandal-resistant, and NEMA 4x-rated housing
In the Box Vivotek S Series 1080p Outdoor 20x PTZ Network Dome Camera Wall-Mount Bracket Waterproof Connectors Terminal Blocks Alignment Sticker Ground Wire Mounting Hardware Desiccant Bags AO-003 I/O Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek S Series 1080p Outdoor 20x PTZ Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek SD9363 Specs | | | CPU | Multimedia SoC (system-on-chip) | | Flash | 128 MB | | RAM | 512 MB | | | | Image Sensor | 1/3" progressive CMOS | | Maximum Resolution | 1920 x 1080 | | Lens Type | 20x optical zoom, auto focus | | Focal Length | 4.7-94mm (20x zoom) | | Aperture | f/1.6 to f/3.5 | | Auto-Iris Lens Support | DC-iris | | Field of View | 55 to 3° (Horizontal)
33 to 2° (Vertical)
63 to 3° (Diagonal) | | Shutter Time | 1/8 to 1/30,000 secs | | WDR Technology | WDR Pro | | Day/Night | Removable IR cut filter for day & night function | | Minimum Illumination | 0.26 lux at f/1.6 (Color)
0.01 lux at f/1.6 (B&W) | | Pan Speed | 0.1 to 300°/sec | | Pan Range | 360° endless | | Tilt Speed | 0.1 to 300°/sec | | Tilt Range | 220° (-110 to 110°) | | Location | 256 preset locations
128 presets per tour | | Pan/Tilt/Zoom Functionalities | 128x digital zoom (4x on IE plug-in, 32x built-in)
Auto pan mode
Auto patrol mode | | IR Illuminators | 492.1' (150 m) | | On-board Storage | Slot Type: SD/SDHC/SDXC card slot
Seamless recording | | | | Compression | H265, H264, MJPEG | | Maximum Frame Rate | 60 fps at 1920 x 1080
In all compression mode | | Maximum Streams | 4 simultaneous streams | | S/N Ratio | 53 dB | | Dynamic Range | 110 dB | | Video Streaming | Adjustable resolution, quality, and bit rate
Smart Stream II | | Image Settings | Adjustable image size, quality, and bit rate
Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, backlight
compensation, privacy masks (Up to 24)
Scheduled profile settings, Defog, 3D-DNR, EIS, HLC | | | | Audio Capability | Two-way audio (full duplex) | | Compression | G.711, G.726 | | Interface | External microphone input
External line output | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS, NTCIP | | Interface | 10Base-T/100Base-TX/1000Base-T
Ethernet (RJ45) | | ONVIF | Supported | | | | Video Motion Detection | Five-window video motion detection | | Auto Tracking | Auto-tracking on moving object | | | | Alarm Triggers | Manual trigger, periodical trigger, system boot, recording notification, audio detection, motion detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server, and SD card
File upload via HTTP, SMTP, FTP, NAS server, and SD card | | | | Operating System | Microsoft Windows 8/7/Vista/XP/2000 | | Web Browser | Mozilla Firefox 7~43 (streaming only)
Internet Explorer 7/8/9/10/11 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Connectors | RJ45 cable connector for network
10/100/1000 Mb/s PoE connection
Audio input
Audio output
48 VDC power input
4 x Digital input
2 x Digital output
RS-485 for PTZ control (Pelco D protocol, Baud rate 2400) | | LED Indicator | System power and status indicator | | Power Input | 95 W PoH/PoE
48 VDC | | Power Consumption | Maximum 81.8 W (heater on)
Maximum 28.5 W (heater off) | | Certifications | CE, FCC class A, VCCI, C-tick, NEMA 4X, UL | | Casing | Weatherproof IP66, vandal-proof IK10 and NEMA 4X-rated housing | | Operating Temperature | -58 to 131°F (-50 to 55°C) | | Humidity | 90% | | Dimensions | 8.03 x 11.22" (204 x 285 mm) | | Weight | 13.2 lb (6.03 kg) |
