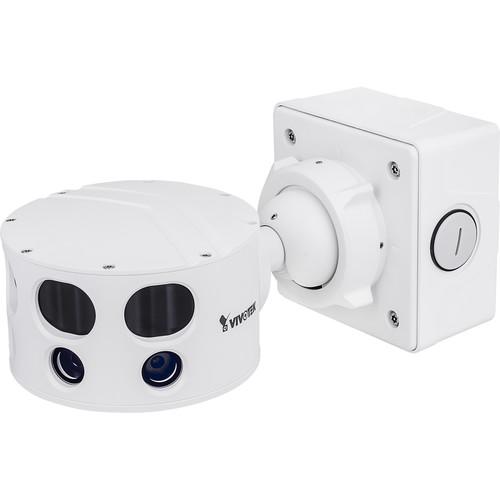

Product description Monitor multiple areas using a single device with the S Series 12MP Outdoor Vandal-Resistant Multi-Sensor Panoramic Camera from Vivotek. The camera consists of four sensors, each with a 3MP resolution, for a total resolution of 7552 x 1416 (12MP). The sensors use 6mm lenses with f/1.6 apertures for four 34° vertical fields of view with a 180° panoramic field of view. Additionally, four SmartIR LEDs provide up to 98' of recording in extreme low light. Housed in an IP66-rated weatherproof and IK10-rated vandal-resistant housing, the camera is suitable for use outdoors and in high-risk areas. Furthermore, it can operate in temperatures as low as -58°F and as high at 140°F for extra versatility.
The camera features enhanced WDR, backlight compensation, and white balance for capturing high-quality images in ambient lighting. Additionally, configurable brightness, saturation, contrast, and sharpness enable you to configure your camera based on various environments. An external microphone input and line output provide full duplex audio capability. Motion, sound, and tampering detection will trigger an alarm so that you are sent a notification of the event. Four simultaneous streams can be transmitted in either H.264 or MJPEG formats, and video resolution, quality, and bitrate are all adjustable for conserving storage and bandwidth. The camera can be powered using PoE technology for a minimum of wires during setup, or it can be powered with a traditional auxiliary power cord. - Four 3MP sensors provide a total video resolution of 7552 x 1416 (12MP)
- 180° panoramic view with video alignment for seamless pictures
- Removable IR cut filter for true Day/Night functionality
- SmartIR technology assists in avoiding overexposure
- Integrated IR LEDs for a maximum 98' recording range in extreme low light
- Input and output for full duplex audio (microphone input and line output)
- ePTZ with up to 48x digital zoom for focusing within your field of view
- Built-in microSD slot supports edge storage for on-site recording
- Enhanced WDR, white balance, exposure control, gain, and backlight compensation
- Configurable brightness, contrast, saturation, and sharpness
- Time stamp, text overlay, flip & mirror, privacy masks, and scheduled profile settings
- Four simultaneous video streams in H.264 and MJPEG compressions
- Up to 10 simultaneous users can view live video
- Alarm triggers include motion detection, audio detection, and tampering detection
- Smart Stream feature optimizes bandwidth efficiency
- IP66 weatherproof and IK10 vandal-resistant housing
- -58 to 140°F / -50 to 60°C temperature range for use in extreme temperatures
In the Box Vivotek S Series 12MP Outdoor Vandal-Resistant Multi-Sensor Panoramic Camera Desiccant Bag Alignment Sticker Wall Mount Kit Screws Limited 3-Year Warranty Guides & Manuals vddbbftxavvuuvcbbxzb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek S Series 12MP Outdoor Vandal-Resistant Multi-Sensor Panoramic Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Vivotek S Series 12MP Outdoor Vandal-Resistant Multi-Sensor Panoramic Camera can be downloaded in PDF format at the link stated below.
Technical parametersVivotek MS8391 Specs | | | CPU | Multimedia SoC (system-on-chip) | | Flash | 128 MB | | RAM | 1 GB | | | | Image Sensor | 1/2.8" progressive scan CMOS | | Maximum Resolution | 7552 x 1416 | | Lens | 6mm fixed at f/1.6 | | Field of View | Horizontal: 180°
Vertical: 34° | | Shutter Time | 1/5 to 1/32,000 seconds | | Wide Dynamic Range | Enhanced | | Day/Night | Removable IR cut filter | | Minimum Illumination | Color: 0.23 lux at f/1.6
B&W: 0.01 lux at f/1.6 | | Presets | 20 locations | | ePTZ | 48x digital zoom (4x on IE plugin, 12x built-in) | | IR Illumination | 4 x SmartIR LEDs
Range: Up to 98.4' / 30 m | | Storage | microSD/SDHC/SDXC slot
Seamless recording | | | | Compression | H.264 and MJPEG | | Maximum Frame Rate | 7 fps at 7552 x 1416 | | Maximum Streams | 4 simultaneous streams | | Signal to Noise Ratio | 63 dB | | Dynamic Range | 60 dB | | Video Streaming | Adjustable resolution, quality, bit rate
Configurable video cropping for bandwidth saving
Smart Stream II | | Image Settings | Time stamp, text overlay, flip and mirror, scheduled profile settings, configurable brightness / contrast / saturation / sharpness, white balance, exposure control, gain, backlight compensation, privacy masks | | | | Audio Capability | Input / Output (full duplex) | | Compression | G.711, G.726 | | Interface | External microphone input
External line output | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, NTCIP, ARP, SSL, TLS | | Interface | 10Base-T/100Base-TX Ethernet (RJ45) | | | | Motion Detection | Five-window video motion detection | | | | Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera, tampering detection, audio detection | | Alarm Events | Event notification using HTTP, SMTP, FTP, NAS sever, and SD card
File upload via HTTP, SMTP, FTP, NAS server, and SD card | | | | Operating System | Microsoft Windows 8 / 7 / Vista / XP / 2000 | | Web Browser | Mozilla Firefox 7 to 43 (streaming only)
Internet Explorer 7 / 8 / 9 / 10/ 11 | | Media Player | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Connectors | RJ45 cable connector for network / PoE connection
Audio input and output
24 VAC power input
Digital input and output | | LED Indicator | System power and status indicator | | Power Input | 24 VAC
IEEE 802.3at PoE Class 4 | | Power Consumption | 24 VAC: Max 43.5 W / 15.6 W (Heater on/off)
IEEE 802.3at PoE: Max 23.5 W / 15.6 W (Heater on/off) | | Operating Temperature | 24 VAC:
Startup: -40 to 140°F / -40 to 60°C
Working: -58 to 140°F / -50 to 60°C
PoE:
Startup: -4 to 140°F / -20 to 60°C
Working: -4 to 140°F / -20 to 60°C | | Humidity | 90% | | Certifications & Approvals | CE, LVD, FCC, Class A, VCCI, C-Tick, UL | | Ratings | IP66 weatherproof
IK10 vandal-resistant | | Dimensions | 10.8 x 5 x 4.8" (275 x 126 x 123 mm) | | Weight | 6.2 lb (2.8 kg) | | | | Package Weight | 7.95 lb | | Box Dimensions (LxWxH) | 13.4 x 10.2 x 7.0" |
