User Manual for Vivotek S Series 2MP Outdoor Network Mobile Dome Camera with 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the Vivotek S Series 2MP Outdoor Network
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek S Series 2MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|

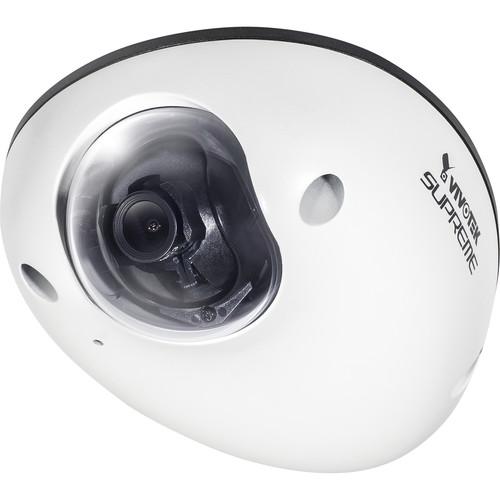

Product description The S Series 2MP Outdoor Network Mobile Dome Camera from Vivotek features a 1/2.7" progressive scan CMOS sensor and 2.8mm fixed lens for capturing videos at a maximum resolution of 1920 x 1080. With full EN50155 compliance and IP67-rated rugged design, the camera can withstand shocks, vibration, humidity, dust, and temperature fluctuations to capture stable and reliable videos during vehicle movement. In addition, the vandal-resistant IK10-rated metal housing provides protection from vandalism.
With WDR Pro technology, the MD8563-EH camera provides improved visibility in high-contrast lighting environments. The 3D Noise Reduction technology enables the camera to capture video under low-light conditions and reduce bandwidth from sensor noise.
Thanks to Smart Stream II technology, this mobile camera can minimize bandwidth and storage consumption considerably while preserving image quality. PoE (Power-over-Ethernet) allows the camera to be operated and powered via a single Ethernet cable for ease of installation. To facilitate on-board storage and data portability, the camera is equipped with a microSD/SDHC/SDXC card slot for local recording. In corridor scenarios, its video rotation feature can provide wider vertical coverage for more depth and a larger field of view. - Frame rate of up to 30 fps at 1920 x 1080
- Smart Stream II to optimize bandwidth efficiency
- EN50155 for mobile surveillance
- WDR Pro for improved visibility in high-contrast environments
- Vandal-resistant IK10-rated and weatherproof IP67-rated housing
- Built-in microSD/SDHC/SDXC card slot for on-board storage
- Video rotation for corridor scenario
In the Box Vivotek S Series 2MP Outdoor Network Mobile Dome Camera with 2.8mm Lens Software CD Screwdriver Alignment Sticker Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek S Series 2MP Outdoor Network Mobile Dome Camera with 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek MD8563 Specs | | | CPU | Multimedia SoC (system-on-chip) | | Flash Memory | 128 MB | | RAM | 256 MB | | | | Image Sensor | 1/2.7" progressive CMOS | | Maximum Resolution | 1920 x 1080 | | Lens Type | Fixed-focal | | Focal Length | 2.8mm | | Aperture | f/1.8 | | Field of View | Horizontal: 114°
Vertical: 65°
Diagonal: 119° | | Shutter Time | 1/5 to 1/32,000 sec | | WDR Technology | WDR Pro | | Minimum Illumination | Color: 0.21 lux at f/1.8 | | Pan Range | ±5° | | Tilt Range | 90° | | ePTZ | 48x digital zoom (4x on IE plug-in,12x built in) | | On-board Storage | microSD/SDHC/SDXC card slot
Seamless recording | | | | Compression | H.264 and MJPEG | | Maximum Frame Rate | 30 fps at 1920 x 1080 | | Maximum Streams | 4 simultaneous streams | | S/N Ratio | 55 dB | | Dynamic Range | 100 dB | | Video Streaming | Adjustable resolution, quality, and bit rate
Smart Stream II | | Image Settings | Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3DNR, video rotation | | | | Audio Capability | Audio input / Audio output (full duplex) | | Compression | G.711, G.726 | | Interface | Built-in microphone
External line output | | Effective Range | 16.4' (5 m) | | | | Users | Live viewing for up to 10 clients | | Protocols | IIPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS | | Interface | 10Base-T/100BaseTX Ethernet (M12, Female, 4pin D-coded) | | ONVIF Conformance | Yes | | | | Video Motion Detection | 5-window video motion detection | | | | Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server, and SD Card
File upload via HTTP, SMTP, FTP, NAS server, and SD card | | | | Operating System | Microsoft Windows 8/7/Vista/XP/2000 | | Web Browser | Mozilla Firefox 7~43 (streaming only)
Internet Explorer 7/8/9/10/11 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Connectors | M12 for Network/PoE connection
Audio line out
1 x Digital input
1 x Digital output | | LED Indicator | System power and status indicator | | Power Input | IEEE 802.3af PoE Class 2 | | Power Consumption | Maximum 4.2 W | | Casing | Weatherproof IP67-rated housing
Vandal-resistant IK10-rated housing | | Agency & Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick, UL, IP67, IK10, EN50130-4, EN50121-4, EN50155, IEC60571 | | Operating Temperature | Starting/Working Temperature: -40 to 158°F (-40 to 70°C) | | Humidity | 90% | | Dimensions (D x W x H) | 5 x 4.2 x 2.1" (129 x 107 x 54 mm) | | Weight | 15.97 oz (453 g) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 6.7 x 5.7 x 5.2" |
