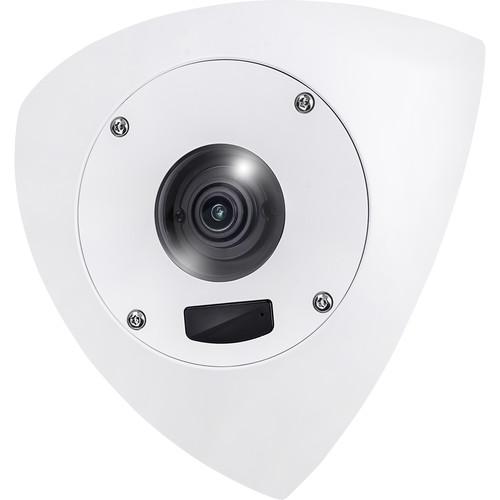

User Manual for Vivotek S Series CD8371-HNVF2 3MP Outdoor Network Corner Dome Camera with 2.8mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the Vivotek S Series CD8371-HNVF2 3MP Outdoor
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek S Series CD8371-HNVF2 3MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The S Series CD8371-HNVF2 3MP Outdoor Network Corner Dome Camera from Vivotek captures video during the day and at night thanks to integrated IR LEDs around the 2.8mm fixed lens. Its 1/2.8" progressive scan CMOS sensor allows the camera to record in 2048 x 1536 resolution at up to 20 fps. The camera is housed in an IP66- and IK10+ rated enclosure for protection against dust, water, and impact, making it suitable for outdoor use, even in areas at risk of vandalism. - 3MP progressive scan CMOS sensor captures 2048 x 1536 resolution video at up to 30 fps
- 2.8mm fixed lens has a 137° diagonal field of view to monitor large areas
- Built-in IR LEDs for video of objects up to 33' away in low light
- Supreme Night Visibility (SNV) and WDR Pro for visibility in varying lighting conditions
- Two-way audio communication with built-in microphone and external line output
- IP66- and IK10+ rated vandal-resistant enclosure for outdoor use
In the Box Vivotek S Series CD8371-HNVF2 3MP Outdoor Network Corner Dome Camera with 2.8mm Fixed Lens Input/Output Cable Mounting Bracket Alignment Sticker Mounting Hardware Screwdriver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek S Series CD8371-HNVF2 3MP Outdoor Network Corner Dome Camera with 2.8mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek CD8371 Specs | | | Image Sensor | 1/2.8" progressive scan CMOS sensor | | Maximum Resolution | 2048 x 1536 (3 MP) | | Lens | 2.8mm fixed | | Aperture | f/1.8 | | Field of View | Horizontal: 108°
Vertical: 79°
Diagonal: 137° | | Shutter Time | 1/5 to 1/32,000 sec | | Wide Dynamic Range | WDR Pro | | Day/Night | Removable IR cut filter | | Minimum Illumination | Color: 0.01 lux at f/1.8
B&W: <0.01 lux at f/1.8
0 lux with IR LEDs on | | Tilt | 15° | | PTZ | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in) | | IR LED Wavelength | 940 nm, Smart IR | | IR LED Range | Up to 33' (10 m) | | On-board Storage | microSD/SDHC/SDXC card slot
Seamless recording | | | | Compression | H.264 and MJPEG | | Maximum Frame Rate | 20 fps at 2048 x 1536 | | Maximum Streams | 3 simultaneous streams | | S/N Ratio | 55 dB | | Dynamic Range | 100 dB | | Video Streaming | Adjustable resolution, quality, and constant bit rate; Smart Stream II | | Image Settings | Adjustable image size, quality, and bit rate
Time stamp, text overlay, flip/mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
Scheduled profile settings, 3D noise reduction, video rotation | | | | Type | Two-way audio (full duplex) | | Compression | G.711, G.726 | | Interface | Built-in microphone
External microphone input
External line output | | Microphone | Range: Up to 16.4' (5 m) | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, NTCIP, ARP, SSL, TLS | | Interface | RJ45 10Base-T/100Base-TX Ethernet | | ONVIF | Supported | | | | CPU | Multimedia SoC (system-on-chip) | | Flash | 128 MB | | RAM | 256 MB | | | | Operating System | Microsoft Windows 8, 7, Vista, XP, 2000 | | Web Browser | Mozilla Firefox 7 to 43 (streaming only)
Internet Explorer 7 to 11 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Video Motion Detection | Five-window video motion detection | | | | Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, shock detection | | Event | Event notification using HTTP, SMTP, FTP, NAS server, and microSD card (available separately)
File upload via HTTP, SMTP, FTP, NAS server, and microSD card (available separately) | | | | Connectors | 1 x RJ45 cable connector for network/PoE connection
1 x Audio input
1 x Audio output
1 x 12 VDC power input
1 x 24 VAC power input
1 x Digital input
1 x Digital output | | LED Indicator | System power and status indicator | | Power Input | 12 VDC, 24 VAC, IEEE 802.3af PoE Class 2 | | Maximum Power Consumption | 6.2 W | | Safety | CE, LVD, FCC Class A, VCCI, C-Tick, UL | | IP Rating | IP66 | | IK Rating | IK10+ | | Operating Temperature | Starting: 14 to 131°F (-10 to 55°C)
Working: 14 to 131°F (-10 to 55°C) | | Dimensions | 8.9 x 8.7 x 4.4" (226 x 221 x 112 mm) | | Weight | 3.3 lb (1.5 kg) |
