User manual
Vivotek S Series FE9181-H 5MP Network

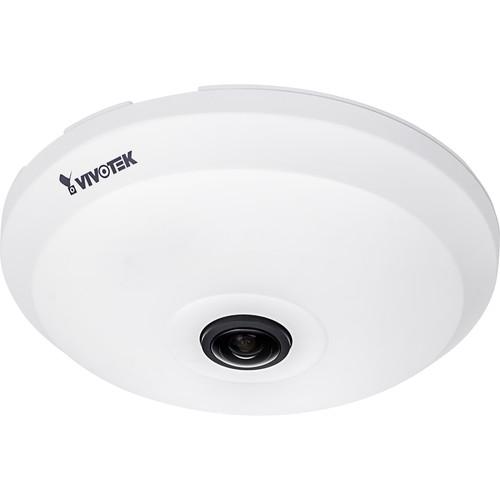

User Manual for Vivotek S Series FE9181-H 5MP Network Fisheye Dome Camera

• Product category: Wired IP Cameras Vivotek
• Brand: Vivotek
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Vivotek Wired IP Cameras

Product description

• Suitable for retail, shopping mall, lobby, office, and airport applications

• Multimedia SoC CPU

• 1.47mm fisheye lens delivers a 180° panoramic view or 360° surround view with no blind spots

• Removable IR cut filter enables day and night functionality

• H.265, H.264, and MJPEG video compressions

• Four simultaneous streams

• Smart Stream II optimizes bandwidth efficiency

• Seamless recording

• ePTZ provides 12x digital zoom

• WDR Pro

• 100 dB dynamic range

• 42.3 dB S/N ratio

• Supports client side dewarping

• Image settings include time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D-DNR, adjustable image size, quality and bit rate, defog, and pixel calculator

• Five-window video motion detection

• Alarm triggers include motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, and microSD card life expectancy

• Event notification using digital output, HTTP, SMTP, FTP, NAS server, and microSD card

• File upload via HTTP, SMTP, FTP, NAS server, and microSD card

• RJ45 connector

• Built-in microphone

• External microphone input and external line output

• Effective audio range up to 16'

• Digital input and output

• LED indicators for system power and status

• Live viewing for up to 10 clients

• Compatible with Microsoft Windows 7 and 8, Firefox 7 to 43 (streaming only), Internet Explorer 10 and 11, VLC 1.1.11 or above, QuickTime 7 or above, VAST VMS, and Shepherd camera management tool

• CE, LVD, FCC Class A, VCCI, C-Tick, and UL certified

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Vivotek FE9181 Specs

Memory	512 MB RAM / 128 MB Flash
Recording Media	microSD (Up to 64 GB)
Pan/Tilt	None
I/O Connections	1 x RJ45 1 x Power
Video Management Software	VAST, Shepherd
Supported Languages	English French German Italian Japanese Portuguese Simplified Chinese Spanish Traditional Chinese
Internal Storage	None
External Storage Options	NAS
Power Source	DC, PoE 802.3af (15 W)
Power Consumption	5.5 W
Operating Temperature	14 to 122°F / -10 to 50°C
Operating Humidity	90%
