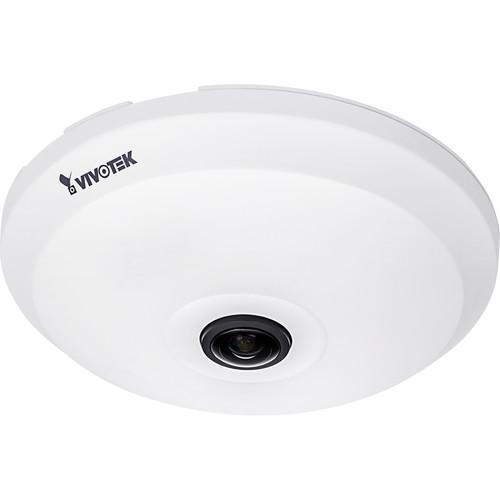

User Manual for Vivotek S Series FE9181-H 5MP Network Fisheye Dome Camera Click to enlarge the picture
Contents of the user manual for the Vivotek S Series FE9181-H 5MP Network
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek S Series FE9181-H 5MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The S Series FE9181-H 5MP Network Fisheye Dome Camera (10 Units) from Vivotek uses a 1/1.8" progressive scan CMOS sensor to capture video at a maximum resolution of 1920 x 1920 at up to 30 fps. An IR cut filter enables day and night functionality. The 1.47mm fixed fisheye lens delivers a 180° panoramic view or 360° surround view. Two-way audio communication is possible thanks to a built-in microphone, along with an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 64GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
Compliance with ONVIF profiles G & S offers compatibility with a wide range of surveillance devices. - Suitable for retail, shopping mall, lobby, office, and airport applications
- 1.47mm fisheye lens delivers a 180° panoramic view or 360° surround view with no blind spots
- Removable IR cut filter enables day and night functionality
- H.265, H.264, and MJPEG video compressions
- Four simultaneous streams
- Smart Stream II optimizes bandwidth efficiency
- ePTZ provides 12x digital zoom
- Supports client side dewarping
- Image settings include time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D-DNR, adjustable image size, quality and bit rate, defog, and pixel calculator
- Five-window video motion detection
- Alarm triggers include motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, and microSD card life expectancy
- Event notification using digital output, HTTP, SMTP, FTP, NAS server, and microSD card
- File upload via HTTP, SMTP, FTP, NAS server, and microSD card
- External microphone input and external line output
- Effective audio range up to 16'
- LED indicators for system power and status
- Live viewing for up to 10 clients
- Compatible with Microsoft Windows 7 and 8, Firefox 7 to 43 (streaming only), Internet Explorer 10 and 11, VLC 1.1.11 or above, QuickTime 7 or above, VAST VMS, and Shepherd camera management tool
- CE, LVD, FCC Class A, VCCI, C-Tick, and UL certified
In the Box Vivotek S Series FE9181-H 5MP Network Fisheye Dome Camera (10 Units) Mounting Bracket Screw Pack Desiccant Bag Double-Sided Tape Alignment Stickers Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek S Series FE9181-H 5MP Network Fisheye Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek FE9181 Specs | | | Sensor | 5 MP 1/1.8" CMOS | | Focal Length | 1.47mm | | Maximum Aperture | f/2.2 | | Zoom | Digital: 12x | | Lens Field of View | Horizontal: 180°
Vertical: 180°
Diagonal: 180° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.18 Lux
B&W: 0.001 Lux | | Shutter Speed | 1/32,000 to 1/5 Seconds | | | | Streaming Resolution | 1920 x 1920 at 30 fps
1920 x 1920 at 12 fps (MJPEG) | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 4 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711, G.726 | | Built-In Mic | Yes | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G | | Analytics | Five-Window Video Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | Built-In Installation Aids | Pixel Calculator | | | | Windows OS Support | Windows 7, 8 | | | | Memory | 512 MB RAM / 128 MB Flash | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | Video Management Software | VAST, Shepherd | | Supported Languages | English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 5.5 W | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 90% | | Dimensions |
