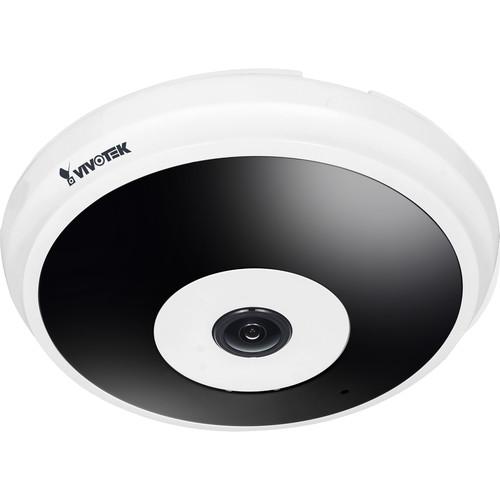

User Manual for Vivotek S Series FE9182-H 5MP Network Fisheye Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Vivotek S Series FE9182-H 5MP Network
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek S Series FE9182-H 5MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The S Series FE9182-H 5MP Network Fisheye Dome Camera from Vivotek features a 1/1.8" CMOS sensor and 1.47mm fisheye lens for capturing videos at a maximum resolution of 1920 x 1920 at 30 fps. Featuring a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/floor mount) with zero blind spots, the camera provides coverage of wide, open areas such as those found in airports, shopping malls, retail stores, and offices. The day/night camera provides 24-hour surveillance thanks to a removable IR cut filter and built-in IR LEDs with a range of up to 66'. WDR Pro technology enables the camera to maintain optimal quality and clear visibility in high-contrast lighting environments. The camera supports H.265 compression standards and features Smart Stream II technology. - H.265 compression technology
- 5MP 1/1.8" CMOS sensor captures 1920 x 1920 resolution videos at up to 30 fps
- 1.47mm fisheye lens for 180° panoramic view or 360° surround view
- Removable IR cut filter for day / night function
- Smart Stream II to optimize bandwidth efficiency
- Built-in 802.3af compliant PoE
- Support client side dewarping
- Pixel counter for image clarity measurement
In the Box Vivotek S Series FE9182-H 5MP Network Fisheye Dome Camera with Night Vision Alignment Sticker Desiccant Bag Screwdriver Screw Pack I/O Cable Mounting Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek S Series FE9182-H 5MP Network Fisheye Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek FE9182 Specs | | | CPU | Multimedia SoC (system-on-chip) | | Flash | 128 MB | | RAM | 512 MB | | | | Image Sensor | 1/1.8" progressive CMOS in 3096 x 2094 | | Maximum Resolution | 1920 x 1920 | | Lens Type | Fixed-focal | | Focal Length | 1.47mm | | Aperture | f/2.2 | | Field of View | Horizontal: 180°
Vertical: 180°
Diagonal: 180° | | Shutter Time | 1/5 to 1/32,000 sec | | WDR Technology | WDR Pro | | Day/Night | Removable IR cut filter | | Minimum Illumination | Color: 0.18 lux at f/2.2
B&W: 0.001 lux at f/2.2 | | Pan/Tilt/Zoom Functionalities | ePTZ
48x digital zoom (4x on IE plug-in, 12x built-in) | | Number of IR LEDs and Range | 6 x IR LEDs, up to 66' (20 m) in low light | | IR Range | Built-in IR x 6, effective up to 65.6' (20 m) | | IR Wavelength | 850 nm | | microSD Support | Slot Type: microSD/SDHC/SDXC card slot (card sold separately)
Seamless recording | | | | Compression | H.265, H.264, and MJPEG | | Maximum Frame Rate | H.265/H.264: 30 fps at 1920 x 1920
MJPEG: 12 fps at 1920 x 1920 | | Maximum Streams | 4 simultaneous streams | | S/N Ratio | 42.3 dB | | Dynamic Range | 100 dB | | Video Streaming | Adjustable resolution, quality, and bit rate
Smart Stream II | | Image Settings | Time stamp, text overlay, flip, and mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
Scheduled profile settings, 3D noise reduction
Adjustable image size, quality, and bit rate, defog
Pixel counter | | | | Audio Capability | 2-way audio (full duplex) | | Compression | G.711, G.726 | | Interface | Built-in microphone
External microphone input
External line output | | Effective Range | 16.4' (5 m) | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS, NTCIP | | Interface | 10Base-T/100BaseTX Ethernet (RJ45) | | ONVIF | Supported | | | | Video Motion Detection | 5-window video motion detection | | | | Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server, and SD card
File upload via HTTP, SMTP, FTP, NAS server, and SD card | | | | Operating System | Microsoft Windows 8, 7, Vista, XP, 2000 | | Web Browser | Mozilla Firefox 7 to 43 (streaming only)
Internet Explorer 7, 8, 9, 10, 11 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Connectors | 1 x RJ45 cable connector for network/PoE connection
1 x audio input
1 x audio output
1 x 12 VDC power input
1 x digital input
1 x digital output | | LED Indicator | System power and status indicator | | Power Input | 12 VDC, IEEE 802.3at PoE Class 4 | | Maximum Power Consumption | 12.95 W | | Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL | | Operating Temperature | Starting Temperature: 32 to 122°F (0 to 50°C)
Working Temperature: 14 to 122°F (-10 to 50°C) | | Humidity | 90% | | Dimensions | 6.3 x 1.5" (160 x 39 mm) | | Weight | 20 oz (568 g) |
