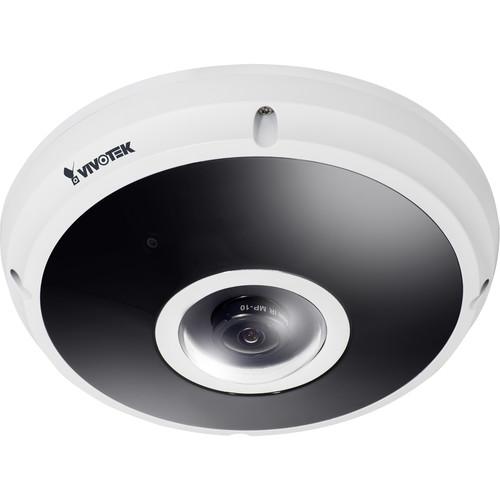

User Manual for Vivotek S Series FE9382-EHV 5MP Outdoor Network Fisheye Dome Camera Click to enlarge the picture
Contents of the user manual for the Vivotek S Series FE9382-EHV 5MP Outdoor
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek S Series FE9382-EHV 5MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The S Series FE9382-EHV 5MP Outdoor Network Fisheye Dome Camera from Vivotek has a 1/1.8" CMOS sensor to capture 1920 x 1920 resolution video at up to 30 fps. Its 1.47mm fisheye lens has a 180° panoramic field of view to monitor large indoor or outdoor areas. WDR Pro technology helps the camera produce accurate images in varying lighting conditions, while an IR cut filter allows the camera to automatically switch from color to B&W for low-light recording. The camera is housed in an IP66- and IK10-rated enclosure to protect it from dust, water, and impact, making it suitable for use in high-risk environments and outdoor surveillance. The enclosure is also EN50155 compliant, making it suitable for professional mobile surveillance. - 5MP 1/1.8" CMOS sensor captures 1920 x 1920 resolution video at up to 30 fps
- 1.47mm fisheye lens for a 180° panoramic view or 360° surround view
- Smart Stream II to optimize bandwidth efficiency while retaining high-quality recording and playback
- RJ45 Ethernet with PoE for a quick, single-cable installation
- IP66- and IK10-rated enclosure for outdoor use
- EN50155 compliant for professional mobile surveillance
In the Box Vivotek S Series FE9382-EHV 5MP Outdoor Network Fisheye Dome Camera Mounting Bracket Mounting Hardware Alignment Sticker I/O Cable Screwdriver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek S Series FE9382-EHV 5MP Outdoor Network Fisheye Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek FE9382 Specs | | | CPU | Multimedia SoC (system-on-chip) | | Flash | 128 MB | | RAM | 512 MB | | | | Image Sensor | 1/1.8" progressive CMOS in 3096 x 2094 | | Maximum Resolution | 1920 x 1920 | | Lens Type | Fixed-focal | | Focal Length | 1.47mm | | Aperture | f/2.2 | | Field of View | Horizontal: 180°
Vertical: 180°
Diagonal: 180° | | Shutter Time | 1/5 to 1/32,000 sec | | WDR Technology | WDR Pro | | Day/Night | Removable IR cut filter | | Minimum Illumination | Color: 0.18 lux at f/2.2
B&W: 0.001 lux at f/2.2 | | Pan/Tilt/Zoom Functionalities | ePTZ
48x digital zoom (4x on IE plug-in, 12x built-in) | | Number of IR LEDs and Range | 6 x IR LEDs, up to 66' (20 m) in low light | | IR Wavelength | 850 nm | | microSD Support | microSD/SDHC/SDXC
Seamless recording | | | | Compression | H.265, H.264, and MJPEG | | Maximum Frame Rate | H.265/H.264: 30 fps at 1920 x 1920
MJPEG: 12 fps at 1920 x 1920 | | Maximum Streams | 4 simultaneous streams | | S/N Ratio | 42.3 dB | | Dynamic Range | 100 dB | | Video Streaming | Adjustable resolution, quality and bit rate, Smart Stream II | | Image Settings | Time stamp, text overlay, flip and mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
Scheduled profile settings, 3D noise reduction
Adjustable image size, quality and bit rate, defog
Pixel counter | | | | Audio Capability | Two-way audio (full duplex) | | Compression | G.711, G.726 | | Interface | Built-in microphone
External microphone input
External line output | | Effective Range | 16.4' (5 m) | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS, NTCIP | | Interface | RJ45 10Base-T/100BaseTX Ethernet | | ONVIF | Supported | | | | Video Motion Detection | Five-window video motion detection | | | | Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server, and SD card
File upload via HTTP, SMTP, FTP, NAS server, and SD card | | | | Connectors | 1 x RJ45 cable connector for network/PoE connection
1 x Audio input
1 x Audio output
1 x 12 VDC power input
1 x Digital input
1 x Digital output | | LED Indicator | System power and status indicator | | Power Input | 12 VDC, IEEE 802.3at PoE Class 4 | | Maximum Power Consumption | 20 W | | Casing | IP66- and IK10-rated metal housing | | Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50155 | | Operating Temperature | Starting Temperature: -13 to 131°F (-25 to 55°C)
Working Temperature: -40 to 131°F (-40 to 55°C) | | Humidity | 90% | | | | Operating System | Microsoft Windows 8, 7, Vista, XP, 2000 | | Web Browser | Mozilla Firefox 7 to 43 (streaming only)
Internet Explorer 7, 8, 9, 10, 11 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | Dimensions | 6.3 x 2" (160 x 51 mm) | | Weight | 1.8 lb (0.8 kg) | | | | Package Weight | 3.365 lb | | Box Dimensions (LxWxH) | 9.15 x 7.95 x 4.75" |
