Vivotek S Series FE9391-EV 12MP 360°

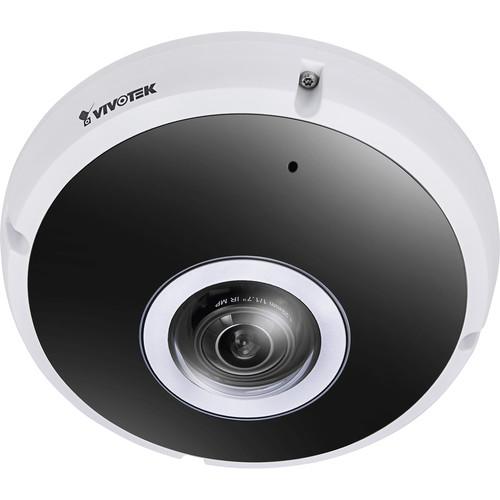

User Manual for Vivotek S Series FE9391-EV 12MP 360° Panomorph Outdoor Network Fisheye Camera

• Product category: Wired IP Cameras Vivotek
• Brand: Vivotek
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Vivotek Wired IP Cameras

Product description

• Suitable for open areas like airports, shopping malls, parking lots, retail stores, and offices

• Multimedia SoC CPU

• 180° panoramic and 360° panomorph views

• Removable IR cut filter enables day and night functionality

• Smart IR II technology

• H.265, H.264, and MJPEG compression

• Smart Stream III technology

• 4 simultaneous streams

• Seamless recording

• Pixel calculator for image clarity measurement

• Image settings include adjustable image size, quality, and bit rate, as well as a time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, pixel calculator, 3D-DNR, white balance, exposure control, gain, backlight compensation, privacy masks, and defog

• Five-window video motion detection

• ePTZ provides 12x digital zoom

• 16' effective audio range

• Enhanced wide dynamic range

• 61.8 dB dynamic range

• 42.9 dB S/N ratio

• Alarm triggers include motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, and microSD card life expectancy

• Event notification using digital output, HTTP, SMTP, FTP, NAS server, and microSD card

• File upload via HTTP, SMTP, FTP, NAS server, and microSD card

• Built-in microphone

• Audio input and output

• Digital input and output

• System power and status LED indicators

• VAST video management software included

• Live viewing for up to 10 clients

• Supports client side dewarping

• Panoramic PTZ function with speed dome camera for monitoring detailed regional view

• Trend Micro IoT security within standard warranty period

• Compatible with Microsoft Windows 8 and 7, Internet Explorer 10 and 11, VLC 1.1.11 or above, and QuickTime 7 or above

• Safety certifications include CE, LVD, VCCI, C-Tick, UL, FCC Class A, and EN50155

• IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Vivotek FE9391 Specs

Memory	1 GB RAM / 256 MB Flash
Recording Media	microSD (Up to 64 GB)
Pan/Tilt	None
I/O Connections	1 x RJ45 1 x Power
IR Range	65.62' / 20 m
Video Management Software	VAST
Supported Languages	English French German Italian Japanese Portuguese Russian Simplified Chinese Traditional Chinese
Internal Storage	None
External Storage Options	NAS
Power Source	DC, PoE 802.3at (30 W)
Power Consumption	25 W
Operating Temperature	-40 to 122°F / -40 to 50°C
Operating Humidity	90%
IP Rating	IP66
IK Rating	IK10
