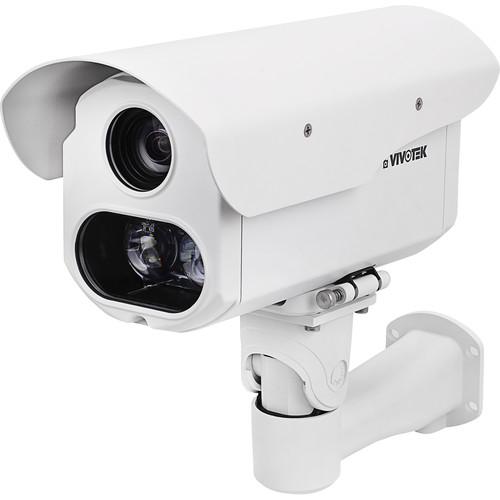

User Manual for Vivotek S Series IZ9361-EH 1080p Outdoor Network Bullet Camera with Heater Click to enlarge the picture
Contents of the user manual for the Vivotek S Series IZ9361-EH 1080p Outdoor
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek S Series IZ9361-EH 1080p Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The S Series IZ9361-EH 1080p Outdoor Network Bullet Camera with Heater from Vivotek uses a 1/3" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. Built-in IR illumination provides visibility for up to 492' in low-light conditions. The 4.7-94mm varifocal lens delivers a 55.4-2.9° horizontal field of view and 20x optical zoom. Two-way audio communication is possible thanks to a microphone input and line output. An onboard SD/SDHC/SDXC slot supports cards up to 128GB. SD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This bullet camera is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. It is equipped with an embedded heater, and is housed in an IP67-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. - Equipped with an embedded heater
- VAIR (Vari-Angle IR) technology
- Removable IR cut filter enables day and night functionality
- H.265, H.264, and MJPEG video compression
- Smart Stream II optimizes bandwidth efficiency
- Four simultaneous streams
- 20x optical and 128 digital zoom
- Image settings include configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, BLC, privacy masks, scheduled profile settings, EIS (electronic image stabilization), 3D-DNR, defog, HLC, and video rotation
- Alarm triggers include motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, and SD card life expectancy
- Event notification using digital output, HTTP, SMTP, FTP, and NAS server
- File upload via HTTP, SMTP, FTP, NAS server, and SD card
- Five-window video motion detection
- System power and status LED indicators
- Three digital inputs and one digital output
- VAST video management software included
- Live viewing for up to 10 clients
- Compatible with Microsoft Windows 8, 7, Vista, XP, and 2000, Internet Explorer 7, 8, 9, 10, and 11, Mozilla Firefox 7-10 (streaming only), VLC 1.1.11 or above, and QuickTime 7 or above
- CE, LVD, FCC Class A, VCCI, C-Tick, UL, and EN50121-4 certified
- IP67-, NEMA 4X-, and IK10-rated housing that is suitable for outdoor use in areas at risk of vandalism
In the Box Vivotek S Series IZ9361-EH 1080p Outdoor Network Bullet Camera with Heater Sunshield Wall Mount Bracket Waterproof Connectors Mounting Hardware Alignment Sticker Desiccant Bag I/O Combo Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek S Series IZ9361-EH 1080p Outdoor Network Bullet Camera with Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek IZ9361 Specs | | | Sensor | 2 MP 1/3" CMOS | | Focal Length | 4.7 to 94mm | | Maximum Aperture | f/1.6 - f/3.5 | | Zoom | Optical: 20x
Digital: 128x | | Lens Field of View | Horizontal: 55.4 to 2.9°
Vertical: 32.6 to 1.6°
Diagonal: 62.7 to 3.3° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.26 Lux
B&W: 0.01 Lux | | Shutter Speed | 1/30000 to 1/8 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30/60 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 4 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711, G.726 | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G | | Analytics | Five-Window Video Motion Detection
Video Content Analysis (VCA) | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Windows OS Support | Windows XP, Vista, 7, 8, 2000 | | | | Memory | 512 MB RAM / 128 MB Flash | | Recording Media | SD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 3 / 1 | | I/O Connections | 1 x RJ45
1 x Power
1 x 9-Pin Serial (RS-485) | | IR Range | 492.13' / 150 m | | Video Management Software | VAST, VADP | | Supported Languages | English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese | | Internal Storage | None | | External Storage Options | NAS | | Power Source | AC, DC, PoE 802.3bt (60 W) | | Power Consumption | 48 W (With Heater)
18 W | | Operating Temperature | -58 to 140°F / -50 to 60°C | | Operating Humidity | 90% | | IP Rating | IP67 | | IK Rating | IK10 Camera body only | | Dimensions | H: 12.7 x W: 5.8 x L: 14.8" / H: 322.0 x W: 147.0 x L: 375.0 mm | | Weight | 9.5 lb / 4.3 kg | | | | Package Weight | 16.1 lb | | Box Dimensions (LxWxH) | 19.9 x 16.7 x 9.8" |
