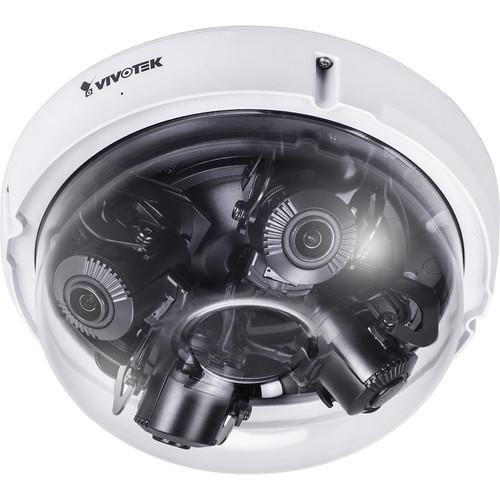

Product description Monitor an outdoor area with the S Series MA8391-ETV 12MP Outdoor 360° Multi-Sensor Network Dome Camera from Vivotek. This multi-sensor camera has four independent 3MP (2048 x 1536) sensors for a total resolution of 12MP. Each sensor is equipped with a 2.8-8mm varifocal lens to deliver a 105-51° horizontal field of view. One-way audio is possible thanks to a built-in microphone. An on-board memory card slot accepts microSD/SDHC/SDXC cards up to 64GB. microSD cards are available for purchase separately. H.264 & MJPEG video compression help reduce bandwidth requirements, allowing for efficient data storage while maintaining the best possible video quality. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. This device is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. It has an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at high risk of vandalism. - Four independent 3MP (2048 x 1536) 1/2.8" progressive scan CMOS image sensors with a 2.8-8mm remote focus variable lens and 3-axis design that allow for 360° coverage
- WDR (wide dynamic range) enhancement offers improved visibility in bright and dark lighting conditions
- Removable IR cut filter for day and night functionality
- Image settings include time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, and privacy masks
- 3D noise reduction for low-light conditions
- Four simultaneous video streams in H.264 & MJPEG compression
- Five-window video motion detection enables you to customize motion detection for monitoring specific areas
- Smart Stream II optimizes bandwidth efficiency
- Alarm triggers include motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, and audio detection
- Alarm events include event notifications and file uploads using HTTP, SMTP, FTP, NAS server, and microSD card
- ePTZ with up to 48x digital zoom
- Live viewing for up to 10 users
- IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at high risk of vandalism
In the Box Vivotek S Series MA8391-ETV 12MP Outdoor 360° Multi-Sensor Network Dome Camera Alignment Sticker Desiccant Bag Screwdriver Screws Pack Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek S Series MA8391-ETV 12MP Outdoor 360° Multi-Sensor Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek MA8391 Specs | | | CPU | Multimedia SoC (System-on-Chip) | | Flash | 128 MB | | RAM | 1 GB | | | | Image Sensor | 1/2.8" progressive scan CMOS | | Maximum Resolution | 2048 x 1536 (3 MP) x 4 | | Lens Type | Varifocal, remote focus | | Focal Length | 2.8-8mm | | Aperture | f/1.6 | | Field of View | Horizontal: 105-51°
Vertical: 72-37°
Diagonal: 140-63° | | Shutter Time | 1/5 to 1/32,000 seconds | | Wide Dynamic Range | WDR enhanced | | Day/Night | Removable IR cut filter | | Minimum Illumination | Color: 0.23 lux at f/1.6
B&W: 0.01 lux at f/1.6 | | Tilt Range | 0-105° each lens | | Rotation Range | ±90° each lens | | ePTZ | 48x digital zoom (4x on IE plug-in, 12x built-in) | | Storage | Supports microSD/SDHC/SDXC cards up to 64 GB
Seamless recording | | | | Compression | H.264 & MJPEG | | Maximum Frame Rate | 7 fps at 2048 x 1536 | | Maximum Streams | 4 simultaneous streams | | S/N Ratio | 66.5 dB | | Dynamic Range | 60 dB | | Streaming | Adjustable resolution, quality, and bit rate
Configurable video cropping for bandwidth saving
Smart Stream II | | Image Settings | Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks | | 3D-DNR | Yes | | | | Capability | One-way audio | | Compression | G.711, G.726 | | Interface | Built-in microphone | | Effective Range | 16.4' (5 m) | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, NTCIP, ARP, SSL, TLS, CIFS/SMB | | Interface | 10Base-T/100Base-TX Ethernet (RJ45)
It is highly recommended to use standard Cat 5e & Cat 6 cables which are compliant with the 3P/ETL standard | | ONVIF Conformance | Profiles S & G | | | | Video Motion Detection | Five-window video motion detection | | | | Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server, and microSD card
File upload via HTTP, SMTP, FTP, NAS server, and microSD card | | | | Operating System | Microsoft Windows 7, 8 | | Web Browser | Internet Explorer 10, 11 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Connectors | RJ45 for network/PoE connection
24 VAC power input
1 x digital input
1 x digital output | | LED Indicator | System power and status indicator | | Power Input | 24 VAC
IEEE 802.3at PoE Class 4 | | Power Consumption (max) | 24 W | | Operating Temperature | Starting Temperature: -22 to 131°F (-30 to 55°C)
Working Temperature: -40 to 131°F (-40 to 55°C) | | Humidity | 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL | | Dimensions | With Cover Plate:
