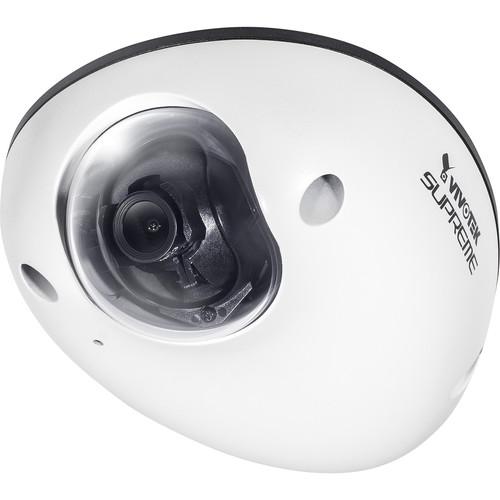

User Manual for Vivotek S Series MD8563-DEHF2 2MP Outdoor Network Mobile Dome Camera with 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the Vivotek S Series MD8563-DEHF2 2MP Outdoor
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek S Series MD8563-DEHF2 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The S Series MD8563-DEHF2 2MP Outdoor Network Mobile Dome Camera with 2.8mm Lens from Vivotek is designed to be used for transportation applications in buses, trains, and other vehicles. It has a 1/2.7" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. The 2.8mm fixed lens delivers a 114° horizontal field of view. Two-way audio communication is possible thanks to a built-in microphone and an audio line out. An onboard memory card slot accepts microSD/SDHC/SDXC cards for local storage. microSD cards are available separately. An M12 connector enables network connection.
This camera is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism. - Suitable for installation on buses, trains, and other vehicles
- Capable of withstanding shocks, vibration, humidity, dust, and temperature fluctuations to maintain stable and reliable video during vehicle movement
- Day and night functionality
- H.264 and MJPEG compression
- Smart Stream II technology to optimize bandwidth efficiency
- ePTZ provides 48x digital zoom
- Camera pivots ±5° horizontally & 90° vertically
- Video rotation for corridor scenario
- Image settings include adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D-DNR, video rotation, and defog
- Alarm triggers include motion detection, manual trigger, digital input, periodic trigger, system boot, recording notification, camera tampering detection, and audio detection
- Five-window video motion detection
- Event notification using digital output, HTTP, SMTP, FTP, NAS server, and microSD card
- File upload via HTTP, SMTP, FTP, NAS server, and microSD card
- Live viewing for up to 10 clients
- M12 connector for network connection
- 1 digital input and 1 digital output
- Built-in microphone and audio line out
- 16' effective audio range
- System power and status LED indicators
- VAST video management software included
- Compatible with Microsoft Windows 8 and 7, Internet Explorer 10 and 11, Mozilla Firefox 7-43 (streaming only), VLC 1.1.11 or above, and QuickTime 7 or above
- Safety certifications include CE, LVD, FCC Class B, VCCI, C-Tick, UL, EN50155 TX, IEC60571, EN61373, EN50121-3-2, EN50121-4, and E-Mark
- IP67- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism
In the Box Vivotek S Series MD8563-DEHF2 2MP Outdoor Network Mobile Dome Camera with 2.8mm Lens Screw Pack T10 Star Screwdriver Desiccant Bag Alignment Sticker Focal Adjustment Tool Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek S Series MD8563-DEHF2 2MP Outdoor Network Mobile Dome Camera with 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek MD8563 Specs | | | Sensor | 2 MP 1/2.7" CMOS | | Focal Length | 2.8mm | | Maximum Aperture | f/1.8 | | Zoom | Digital: 48x | | Lens Field of View | Horizontal: 114°
Vertical: 65°
Diagonal: 119° | | Day/Night | Yes | | Minimum Illumination | Color: 0.21 Lux | | Shutter Speed | 1/32000 to 1/5 Seconds | | Camera Angle Adjustment | Horizontal: -5 to 5°
Vertical: 0 to 90° | | | | Streaming Resolution | 1920 x 1080 at 30 fps
1280 x 720 at 45 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 4 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711, G.726 | | Built-In Mic | Yes | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles G and S | | Analytics | Five-Window Video Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Windows OS Support | Windows 7, 8 | | | | Memory | 256 MB RAM / 128 MB Flash | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | I/O Connections | 1 x M12
1 x Power | | Video Management Software | VAST | | Supported Languages | English
French
German
Italian
Japanese
Portuguese
Russian
Simplified Chinese
Traditional Chinese | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC | | Power Consumption | 4.2 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 90% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions | H: 2.1 x W: 4.2 x L: 5.1" / H: 54.0 x W: 107.0 x L: 129.0 mm | | Weight | 1.0 lb / 455.0 g |
