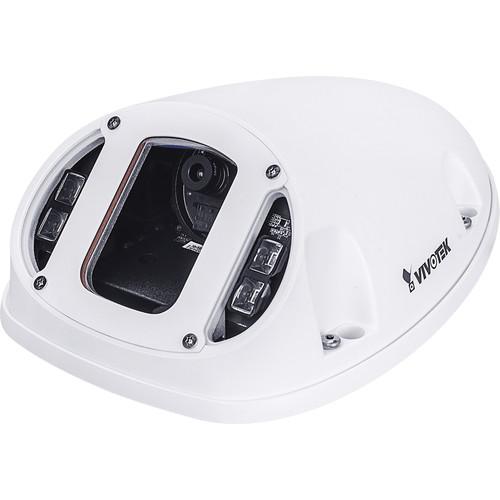

Product description The S Series MD8564-EH 2MP Outdoor Network Mobile Dome Camera with Night Vision & 3.6mm Lens from Vivotek has a 1/2.7" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. The MD8564-EH is designed to be mounted on the exterior of your vehicle as a side view camera or on the vehicle's roof to provide a clear view of critical areas for operational awareness and incident monitoring for the driver. 4 IR LEDs provide a night vision range up to 98'. The 3.6mm fixed lens delivers a 57° horizontal field of view. Two-way audio is possible thanks to a microphone input and a line output. A built-in memory card slot accepts microSD cards up to 64GB. microSD cards are available for purchase separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This device is housed in an IP69K-, NEMA 4X-, and IK10-rated metal enclosure making it suitable for outdoor use and capable of withstanding vandalism. EN50155 TX compliance ensures that the camera will withstand shock, vibrations, humidity, and electromagnetic interference while maintaining stable video capture. - Designed to be mounted on a vehicle's exterior
- Removable IR cut filter enables day and night functionality
- H.264 and MJPEG compression
- Smart Stream II technology
- 100 dB wide dynamic range
- Image settings include adjustable image size, quality, bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D-DNR, video rotation, and defog
- Front glass heater for deicing and defrosting
- 24 VDC power input for heater
- Five-window video motion detection
- Camera pivots 0-30° vertically
- ePTZ provides 48x digital zoom
- Alarm triggers include motion detection, manual trigger, digital input, periodic trigger, system boot, recording notification, camera tampering detection, and audio detection
- Event notification using digital output, HTTP, SMTP, FTP, NAS server, and microSD card
File upload via HTTP, SMTP, FTP, NAS server, and microSD card - Compatible with Microsoft Windows 8 and 7, Internet Explorer 10 and 11, Chrome 58.0.3029 or above, VLC 1.1.11 or above, and QuickTime 7 or above
- VAST video management software included
- Live viewing for up to 10 clients
- M12 connector for PoE/network
- LED indicators for system power and status
- Safety certifications include CE, LVD, FCC Class B, VCCI, C-Tick, IP6K9K, IK10+, NEMA 4X, EN50155 TX, EN61373, EN50121-3-2, EN50121-4, and UL
In the Box Vivotek S Series MD8564-EH 2MP Outdoor Network Mobile Dome Camera with Night Vision & 3.6mm Lens Screws T10 Star Screwdriver Desiccant Bag Alignment Sticker Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek S Series MD8564-EH 2MP Outdoor Network Mobile Dome Camera with Night Vision & 3.6mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek MD8564 Specs | | | Sensor | 2 MP 1/2.7" CMOS | | Focal Length | 3.6mm | | Maximum Aperture | f/2 | | Zoom | Digital: 48x | | Lens Field of View | Horizontal: 57°
Vertical: 30°
Diagonal: 65° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.18 Lux
B&W: 0 Lux | | Shutter Speed | 1/32000 to 1/5 Seconds | | Camera Angle Adjustment | Vertical: 0 to 30° | | | | Streaming Resolution | 1920 x 1080 at 30 fps
1280 x 720 at 45 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 4 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711, G.726 | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, , ICMP, IGMP, IPv4/v6, NTCIP, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles G and S | | Analytics | Five-window video motion detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Windows OS Support | Windows 7, 8 | | | | Memory | 256 MB RAM / 128 MB Flash | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 98.43' / 30 m | | Video Management Software | VAST | | Supported Languages | English
French
German
Italian
Japanese
Portuguese
Russian
Simplified Chinese
Traditional Chinese | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 50 W (With Heater)
10 W 10 W max with IR on
5.7 W max with IR off | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 0 to 90% | | IP Rating | IP69K | | IK Rating | IK10 | | Dimensions | H: 3.2 x W: 6.4 x L: 9.5" / H: 82.2 x W: 161.7 x L: 241.2 mm | | Weight | 3.0 lb / 1370.0 g |
