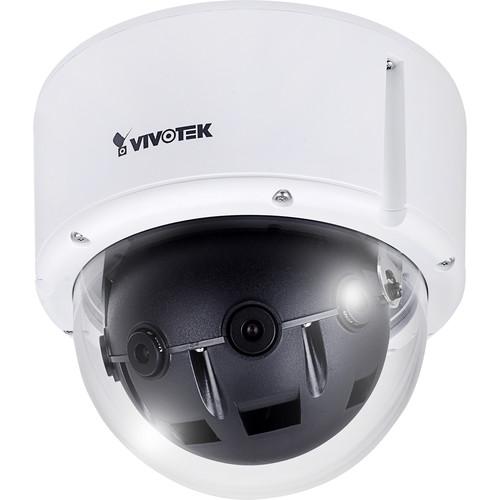

Product description The S Series MS8392-EV 12MP Outdoor Network Panoramic Dome Camera from Vivotek features four 3MP sensors to capture 7552 x 1416 resolution video at up to 7 fps. The combined horizontal field of view from all four 6mm lenses is 180°, making this camera suitable for monitoring large areas. Each lens can be set to a different resolution as well as position, but the video alignment feature produces a seamless, combined image from all sensors. WDR Enhanced technology helps the camera produce accurate images in varying lighting conditions, while an IR cut filter allows the camera to automatically switch from color to B&W for low-light recording. The camera is housed in an IP66- and IK10-rated enclosure to protect it from dust, water, and impact, making it suitable for use in high-risk environments and for outdoor surveillance. - Four 3MP 1/2.8" CMOS sensors capture a combined 7552 x 1416 resolution video at up to 7 fps
- Four 6mm fisheye lenses have a combined 180° panoramic field of view
- Individually configurable lenses allow for varying resolutions and positioning
- Smart Stream to optimize bandwidth efficiency while retaining high-quality recording and playback
- RJ45 Ethernet with PoE for a quick, single-cable installation
- IP66- and IK10-rated vandal-resistant enclosure for outdoor use
In the Box Vivotek S Series MS8392-EV 12MP Outdoor Network Panoramic Dome Camera Sunshield Wall Mount Kit Mounting Hardware Alignment Sticker Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek S Series MS8392-EV 12MP Outdoor Network Panoramic Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek MS8392 Specs | | | CPU | Multimedia SoC (system-on-chip) | | Flash | 128 MB | | RAM | 1 GB | | | | Image Sensor | 4 x 3MP 1/2.8" progressive scan CMOS sensors | | Maximum Resolution | 7552 x 1416 at up to 7 fps | | Lens Type | Fixed | | Focal Length | 4 x 6mm | | Aperture | f/1.6 | | Field of View | Horizontal: 180°
Vertical: 34° | | Shutter Time | 1/5 to 1/32,000 sec | | WDR Technology | WDR Enhanced | | Day/Night | Removable IR cut filter | | Minimum Illumination | Color: 0.23 lux at f/1.6
B&W: <0.01 lux at f/1.6 | | Pan/Tilt/Zoom Functionalities | ePTZ
48x digital zoom (4x on IE plug-in, 12x built-in) | | microSD Support | microSD/SDHC/SDXC | | | | Compression | H.264, MJPEG | | Maximum Streams | 4 simultaneous streams | | S/N Ratio | 63 dB | | Dynamic Range | 60 dB | | Video Streaming | Adjustable resolution, quality and bit rate
Configurable video cropping for bandwidth conservation
Smart Stream | | Image Settings | Time stamp, text overlay, flip and mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks | | | | Compression | G.711, G.726 | | Interface | 1 x External microphone input
1 x External line output | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, NTCIP, ARP, SSL, TLS | | Interface | RJ45 10Base-T/100BaseTX Ethernet | | ONVIF | Supported | | | | Video Motion Detection | Five-window video motion detection | | | | Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server, and SD card
File upload via HTTP, SMTP, FTP, NAS server, and SD card | | | | Connectors | 1 x RJ45 cable connector for network/PoE connection
1 x Audio input
1 x Audio output
1 x 24 VAC power input
1 x Digital input
1 x Digital output | | LED Indicator | System power and status indicator | | Power Input | 24 VAC, IEEE 802.3at PoE Class 4 | | Maximum Power Consumption | 24 VAC: 41.5 W/8.5 W (heater on/off)
PoE: 23.5 W/8.5 W (heater on/off) | | Casing | IP66- and IK10-rated metal housing | | Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50155 | | Operating Temperature | 24 VAC: -58 to 122°F (-50 to 50°C)
PoE: -4 to 122°F (-20 to 50°C) | | Starting Temperature | 24 VAC: -40 to 122°F (-40 to 50°C)
PoE: -4 to 122°F (-20 to 50°C) | | Humidity | 90% | | | | Operating System | Microsoft Windows 8, 7, Vista, XP, 2000 | | Web Browser | Mozilla Firefox 7 to 43 (streaming only)
Internet Explorer 7, 8, 9, 10, 11 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | Dimensions | Without Sunshield: 6.1 x 5.4" (155 x 137 mm)
With Sunshield: 6.1 x 5.8" (155 x 148 mm) | | Weight | 2.7 lb (1.24 kg) | | | | Package Weight | 4.35 lb | | Box Dimensions (LxWxH) | 11.7 x 8.6 x 7.2" |
