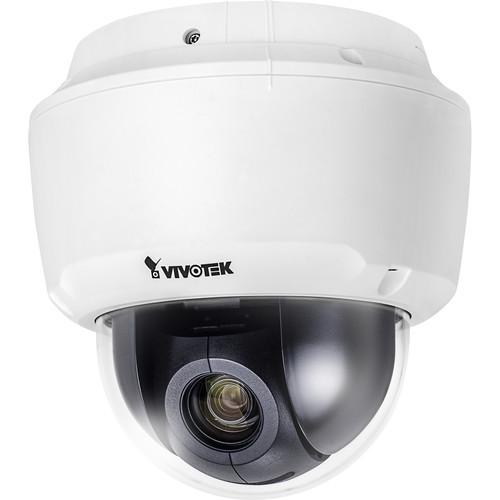

Product description The S Series SD9161-H 1080p PTZ Network Dome Camera from Vivotek has a 1/3" progressive scan CMOS sensor to capture 1080p video at up to 30 fps. Its 5.1-51mm varifocal lens has a 68-6.7° diagonal field of view to monitor medium-sized indoor areas. Position the lens where you want it using the pan, tilt, and zoom functionality. H.265 compression ensures high-quality recording and playback while optimizing network bandwidth. An IR cut filter and wide dynamic range help the camera produce accurate pictures in varying lighting conditions. The RJ45 PoE data and network connection allows for a quick installation. - 1/3" progressive scan CMOS sensor captures 1920 x 1080 resolution video at up to 30 fps
- 5.1-51mm autofocus varifocal lens with DC-iris control
- PTZ functionality with 360° pan, 180° tilt, and 10x optical zoom
- Auto pan and auto patrol modes
- WDR Pro (100 dB) for accurate images in varying lighting conditions
- H.265 with Smart Stream II to optimize network bandwidth efficiency
- RJ45 Ethernet with PoE for quick installation
- microSD slot supports up to 64GB microSD card (available separately) for local storage
In the Box Vivotek S Series SD9161-H 1080p PTZ Network Dome Camera Indoor Pendant Mount Alignment Sticker L-Wrench Power Cable VAST Software Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek S Series SD9161-H 1080p PTZ Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek SD9161 Specs | | | CPU | Multimedia SoC (system-on-chip) | | Flash | 128 MB | | RAM | 512 MB | | | | Image Sensor | 1/3" progressive scan CMOS sensor | | Video Resolution | 1920 x 1080 | | Lens Type | 10x optical zoom, auto focus | | Focal Length | 5.1-51mm | | Aperture | f/1.6-1.8 | | Auto Iris | DC-iris | | Field of View | Horizontal: 54-4.9°
Vertical: 31-4°
Diagonal: 68-6.7° | | Shutter Time | 1/8 to 1/30,000 sec | | Wide Dynamic Range | WDR Pro | | Day/Night | Removable IR cut filter | | Minimum Illumination | Color: 0.2 lux at f/1.6
B&W: 0.01 lux at f/1.6 | | Pan Speed | 0.05 to 360°/sec | | Pan Range | 360° endless | | Tilt Speed | 0.05 to 360°/sec | | Tilt Range | 180° | | Preset | 256 preset locations, 128 presets per tour | | Pan/Tilt/Zoom | 128x digital zoom (4x on IE plug-in, 32x built-in)
Auto pan mode
Auto patrol mode | | Onboard Storage | microSD/SDHC/SDXC card slot supports up to 64 GB | | | | Compression | H.265, H.264, MJPEG | | Frame Rate | 30 fps at 1080p in all compression modes | | Maximum Streams | 4 simultaneous streams | | S/N Ratio | 50 dB | | Dynamic Range | 100 dB | | Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream II | | Image Settings | Time stamp, text overlay, flip/mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (up to 24)
Scheduled profile settings, EIS, 3D-DNR, defog | | | | Capability | Two-way audio (full duplex) | | Compression | G.711, G.726 | | Interface | External microphone input
External line output | | | | Users | Live viewing supported for up to 10 clients | | Network Protocol and Standards | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, NTCIP, ARP, SSL, TLS, ICMP | | Network Interface | RJ45 10 Base-T/100 BaseTX Ethernet | | ONVIF | Supported | | | | Video Motion Detection | Five-window video motion detection | | Auto Tracking | Auto-tracking on moving object | | | | Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, audio detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server, and microSD card
File upload via HTTP, SMTP, FTP, NAS server, and microSD card | | | | Supported Operating Systems | Microsoft Windows 8, 7, Vista, XP, 2000 | | Supported Browsers | Mozilla Firefox 7 to 43 (streaming only)
Internet Explorer 7, 8, 9, 10, 11 | | Other Players | VLC: 1.1.11 and later
QuickTime: 7 and later | | | | Connectors | RJ45
Audio input
Audio output
24 VDC/VAC power input
4 x Digital inputs
2 x Digital outputs | | LED Indicator | System power and status indicator | | Power Input | 24 VDC
24 VAC
IEEE 802.3at PoE Class 4 | | Maximum Power Consumption | 15 W | | Safety Certification | CE, LVD, FCC Class A, VCCI, C-Tick, UL | | Operating Temperature | -14 to 31°F (-10 to 55°C) | | Humidity | 90% | | Dimensions | 6.8 x 6.2" (172 x 157 mm) | | Weight | 2.3 lb (1 kg) | | | | Package Weight | 3.675 lb | | Box Dimensions (LxWxH) | 10.8 x 9.15 x 9.05" |
