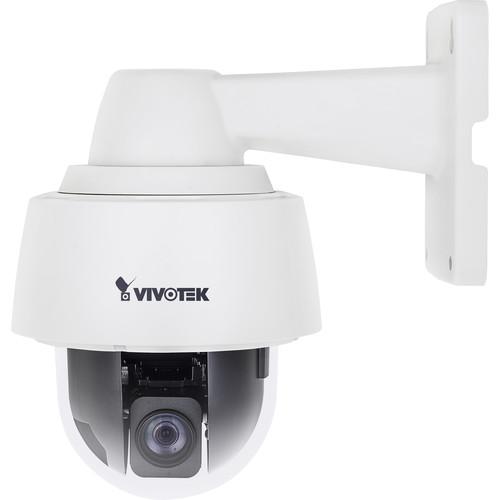

Product description The S Series SD9361-EHL 2MP Outdoor PTZ Network Dome Camera with 4.7-94mm Lens from Vivotek captures 1920 x 1080 resolution video at up to 60 fps and features pan, tilt, and zoom functionality. It's 4.7-94mm varifocal lens has a 20x optical zoom to keep an eye on distant subjects. By combining H.265 compression and Smart Stream II technology, the camera captures high-quality images while optimizing network bandwidth use and storage space. The camera is housed in an IP68- and IK10-rated enclosure for protection against dust, water, and impact, making it suitable for use outdoors and in high-risk environments. - Captures 1920 x 1080 resolution video at up to 60 fps
- 4.7-94mm varifocal lens with 20x optical zoom
- 63-3° field of view to monitor a specified area
- IR cut filter for low-light recording
- 360° endless pan and 220° tilt
- Wide dynamic range for accurate images in varying lighting conditions
- Smart Stream II technology
- Auto tracking for moving objects
- microSD slot supports up to 64GB for local storage
- IP68-, NEMA 4X-, and IK10-rated enclosure for dust, water, ice formation, and impact protection
In the Box Vivotek S Series SD9361-EHL 2MP Outdoor PTZ Network Dome Camera with 4.7-94mm Lens Wall Mount Bracket Mounting Hardware Waterproof Connectors Alignment Sticker L-Wrench I/O Combo Cable Desiccant Bags Limited 3-Year Warranty Brochure PDF 685.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek S Series SD9361-EHL 2MP Outdoor PTZ Network Dome Camera with 4.7-94mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek SD9361 Specs | | | CPU | Multimedia SoC (system-on-chip) | | Flash | 128 MB | | RAM | 512 MB | | | | Image Sensor | 1/3" progressive scan CMOS sensor | | Video Resolution | 1920 x 1080 (2 MP) | | Lens Type | 20x optical zoom, auto focus | | Focal Length | 4.7-94mm | | Aperture | f/1.6 to 3.5 | | Auto Iris | DC-iris | | Field of View | Horizontal: 55-3°
Vertical: 33-2°
Diagonal: 63-3° | | Shutter Time | 1/8 to 1/30,000 sec | | Wide Dynamic Range | WDR Pro, True WDR | | Day/Night | IR cut filter | | Minimum Illumination | Color: 0.26 lux at f/1.6
B&W: 0.01 lux at f/1.6 | | Pan Speed | 0.05 to 450°/sec | | Pan | 360° endless | | Tilt Speed | 0.05 to 450°/sec | | Tilt | 220° (-110 to 110°) | | Preset | 256 preset locations, 128 presets per tour | | PTZ Functionalities | 128x digital zoom (4x on IE plug-in, 32x built-in) | | Memory Card Support | microSD/SDHC/SDXC card slot supports up to 64 GB (available separately) | | | | Video Compression | H.265, H.264, MJPEG | | Maximum Frame Rate | H.265 and H.264: 60 fps at 1920 x 1080
MJPEG: 30 fps at 1920 x 1080 | | Maximum Streams | 4 simultaneous streams | | S/N Ratio | 53 dB | | Dynamic Range | 100 dB | | Streaming | Adjustable resolution, quality, and constant bit rate control
Smart Stream II | | Image Settings | Time stamp, text overlay, flip/mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (up to 24)
Scheduled profile settings, EIS, 3D-DNR, defog, HLC | | | | Audio Capability | Two-way audio (full duplex) | | Audio Compression | G.711, G.726 | | Audio Interface | External microphone input
External line output | | | | Users | Live viewing supported for up to 10 clients | | Network Protocol and Standards | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, NTCIP, ARP, SSL, TLS | | Network Interface | RJ45, 10Base-T/100Base-TX/1000Base-TX
Cat5e or Cat6 cable recommended | | ONVIF | Supported | | | | Video Motion Detection | Five-window video motion detection | | Auto Tracking | Auto-tracking on moving object | | | | Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, audio detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and microSD card file upload via HTTP, SMTP, FTP, NAS server, and microSD card | | | | Connectors | RJ45 for Network/PoE connection
Audio input
Audio output
24 VDC/VAC power input
4 x Digital inputs
2 x Digital outputs
1 x RS-485 | | LED Indicator | System power and status indicator | | Power Input | 24 VDC, 24 VAC, 60 W PoE | | Maximum Power Consumption | Heater On: 48 W
Heater Off: 26 W | | Safety Certification | CE, FCC Class A, VCCI, C-Tick, UL, NEMA 4X | | Operating Temperature | -40 to 131°F (-40 to 55°C) | | Humidity | 0 to 90% | | Supported Operating Systems | Windows 8, 7, Vista, XP, 2000 | | Supported Browsers | Mozilla Firefox 7-43 (streaming only)
Internet Explorer 7, 8, 9, 10, 11 | | Other Players | VLC: 1.1.11 and later
QuickTime: 7 and later | | Dimensions | 6.4 x 8.7" (162 x 221 mm) | | Weight | 6.5 lb (2.95 kg) | | | | Package Weight | 13.95 lb | | Box Dimensions (LxWxH) | 18.1 x 13.6 x 11.8" |
